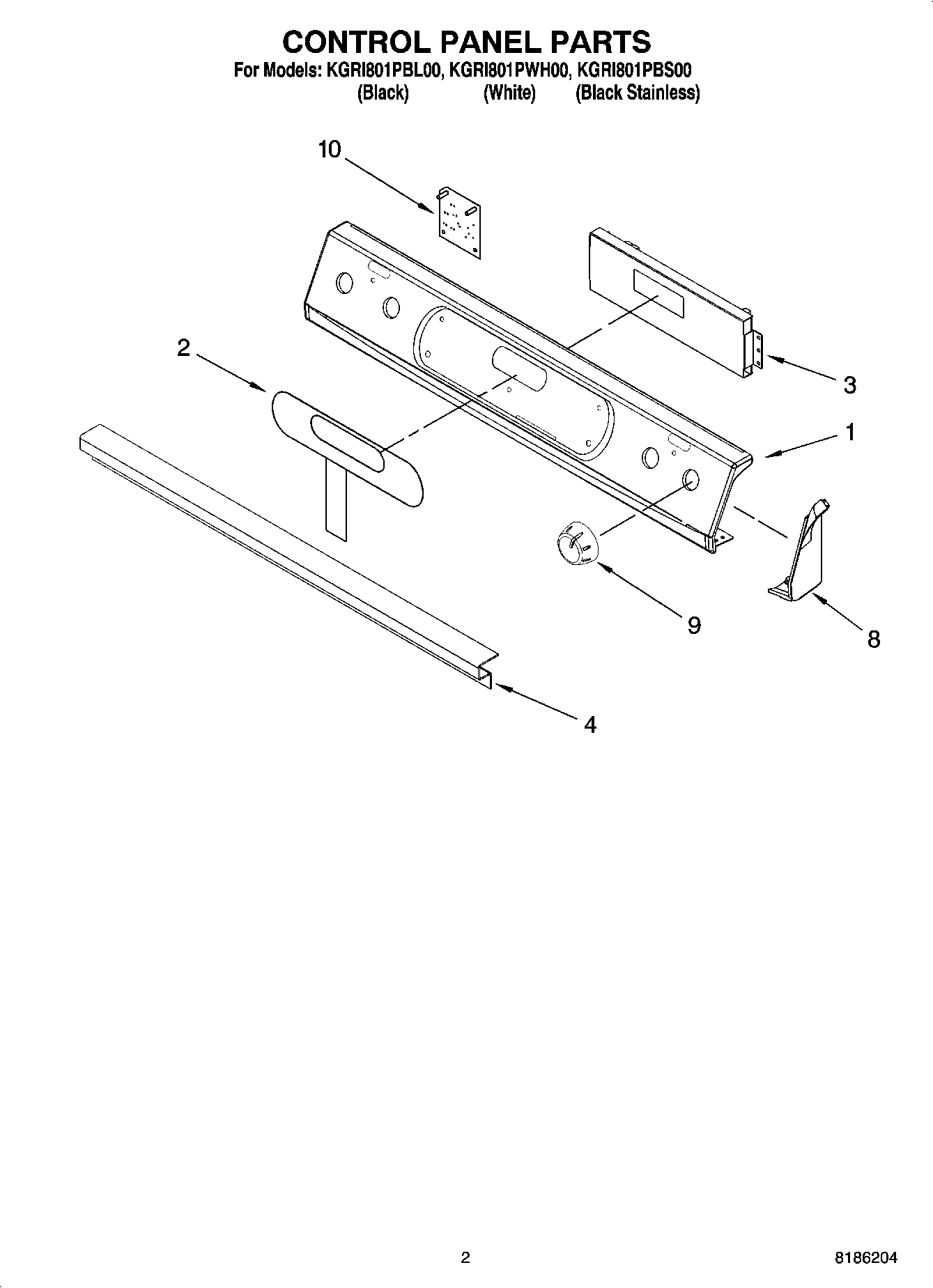

KGRI801PBL00 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (Black)
1	Control Panel (S.Steel)
1	Control Panel (White)
2	Membrane Switch (Black)
2	WP3400832 Whirlpool Screw
2	Membrane Switch (White)
3	Control, Migration
3	Screw
4	Bracket, Console
4	Screw (4)
8	3196172 Whirlpool Oven Screw
8	Endcap (White LH)
8	Endcap (Black LH)
8	Endcap (White RH)
8	Endcap (S.Steel RH)
8	Endcap (Black RH)
8	Endcap (S.Steel LH)
9	Knob (Black)
9	Knob (White)
9	Knob, Burner (4) (Meteorite Model)
10	WPW10331686 Whirlpool Oven Spark Module
