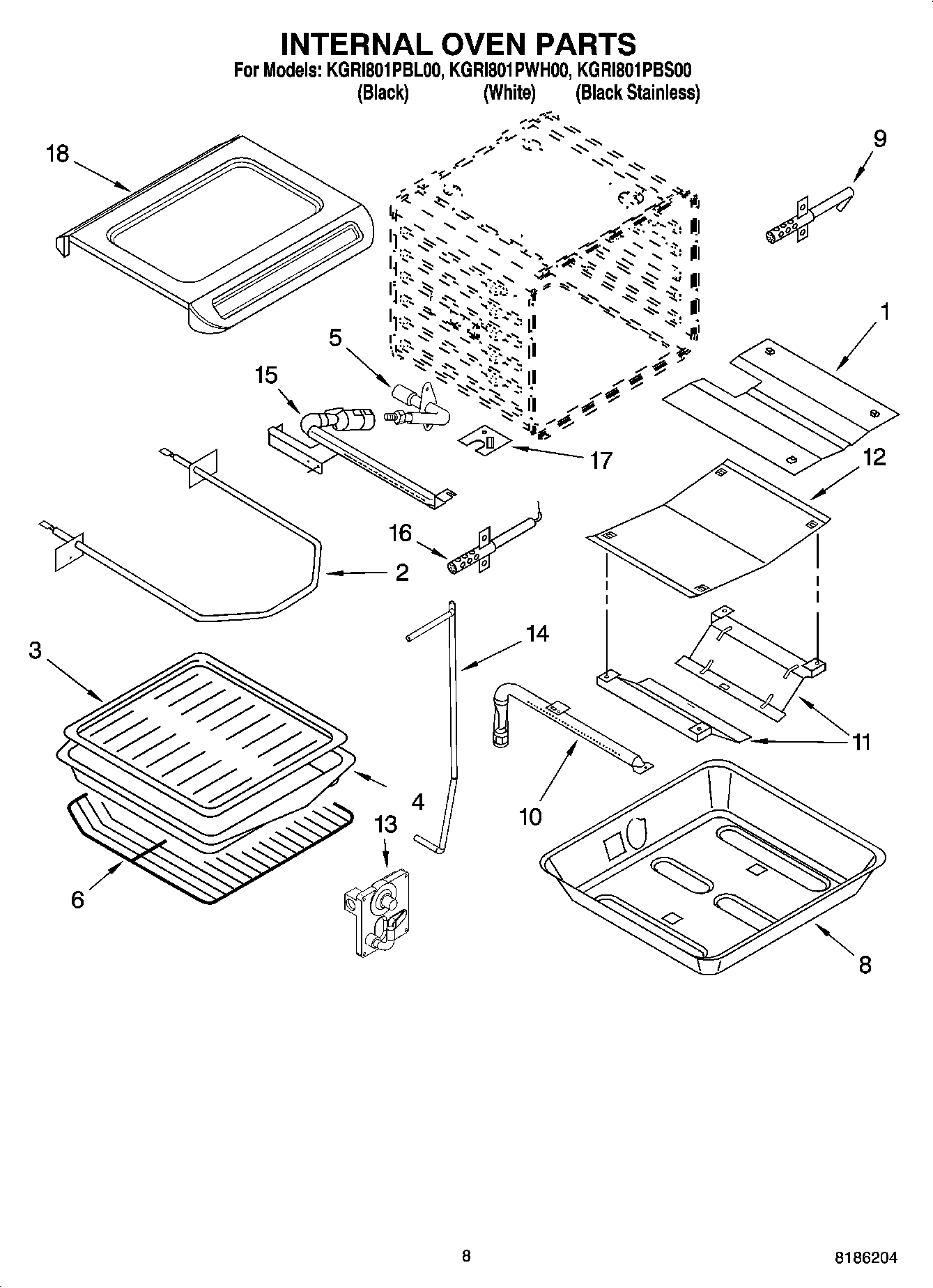

KGRI801PBS00 06 – INTERNAL OVEN PARTS

KGRI801PBS00 06 – INTERNAL OVEN PARTS

Written by

in

KGRI801PBS00 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1Shield, Flame
2Element, Broil
3WP3195996 Whirlpool Pan Grid
4W10737569 Whirlpool Broil Pan
59757779 Whirlpool Oven Fitting
6WPW10179152 Whirlpool Rack Oven
8WPW10145744 Whirlpool Support
108191123 Whirlpool Oven Burner Assembly with Igniter
11Shield, Oven (2)
12Shield, Bake Flame
13WP9763716 Whirlpool Gas Valve
13Screw
14Tube, Broil
15Burner, Broil
16WP8054129 Whirlpool Oven Igniter
16W11684507 Whirlpool Screw
17SCREW
17Cover, Ignitor
18WPW10272546 Whirlpool Broiler Pan
