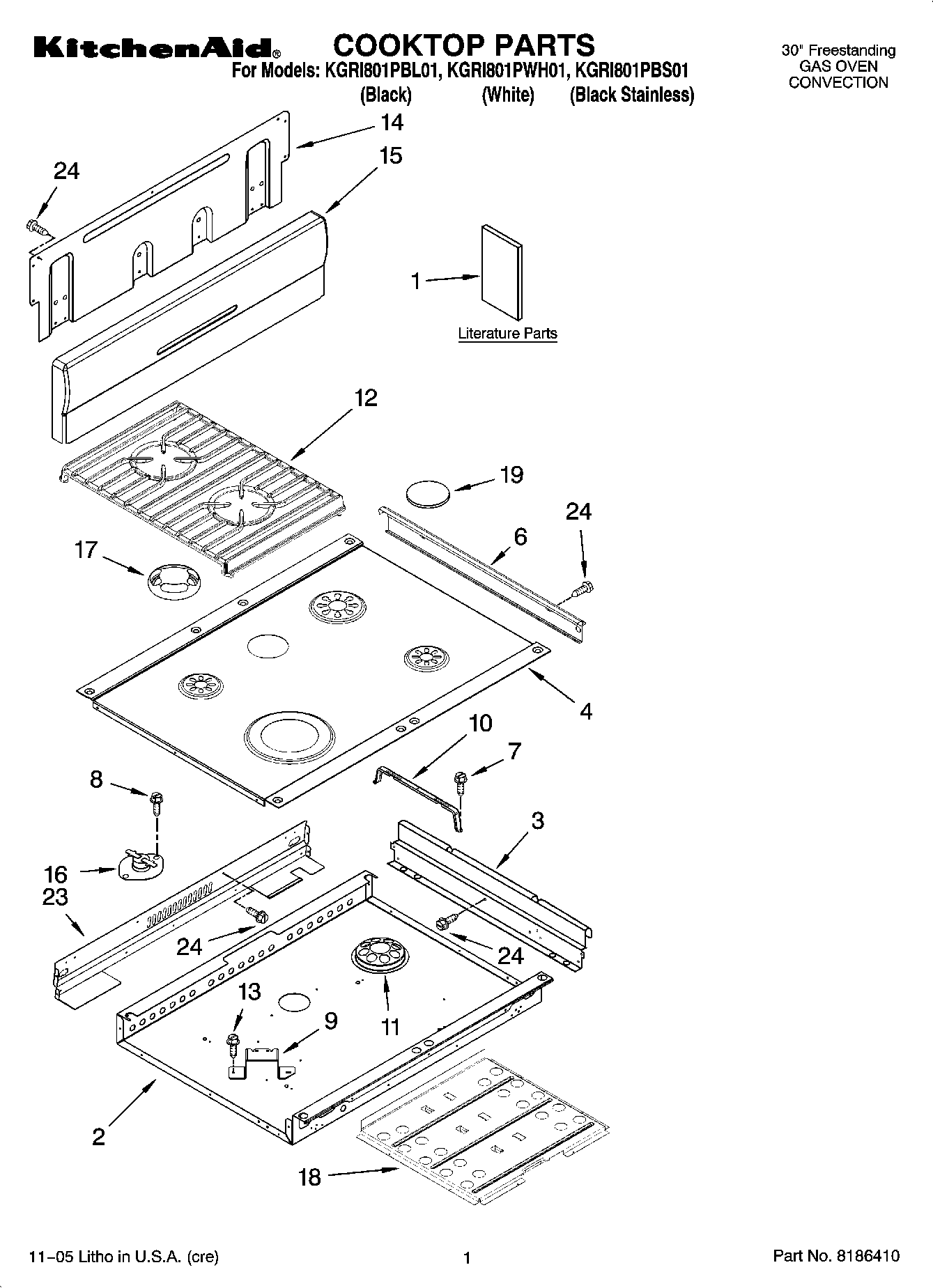

KGRI801PBS01 01 – COOKTOP PARTS

KGRI801PBS01 01 – COOKTOP PARTS

Written by

in

KGRI801PBS01 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Guide, Easy Set
1Safe Cooking Tips
1Installation Instructions
1Anti-Tip Instruct.
1Use & Care Guide
1Tech Sheet
1Guide, Easy Set (French)
2Burner Box
3Bracket, Mounting
4Cooktop (Black)
4Cooktop (White)
6Trim-CkTop, SI (Black LH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (White RH)
7WP4449809 Whirlpool Screw
8W10491985 Whirlpool Screw
9Bracket, Burner
10WP9756821 Whirlpool Support
11Dome Cap, Vent
12Grate, Burner (Coal Black)
12Grate, Burner (Mouse Grey)
12Grate, Burner (Black)
13WP12990527 Whirlpool Microwave Screw
14Cover, Backsplash Rear
15Backsplash (Gray)
15Backsplash (Black)
15Backsplash (White)
15Backsplash (Black)
16WP9759944 Whirlpool Thermostat
17Vent, Center (Black)
17Vent, Center (White)
18Shield, Heat
19Cap, Burner 6K (1) (Gray)
19WPL 9753939GS
19WPL 9753939GB
19WP3191905 Whirlpool Burner Cap
19WP3191904 Whirlpool Burner Cap
19WP3191898 Whirlpool Surface Burner Cap Black
23WPL 9759627
24WP3196557 Whirlpool Screw
