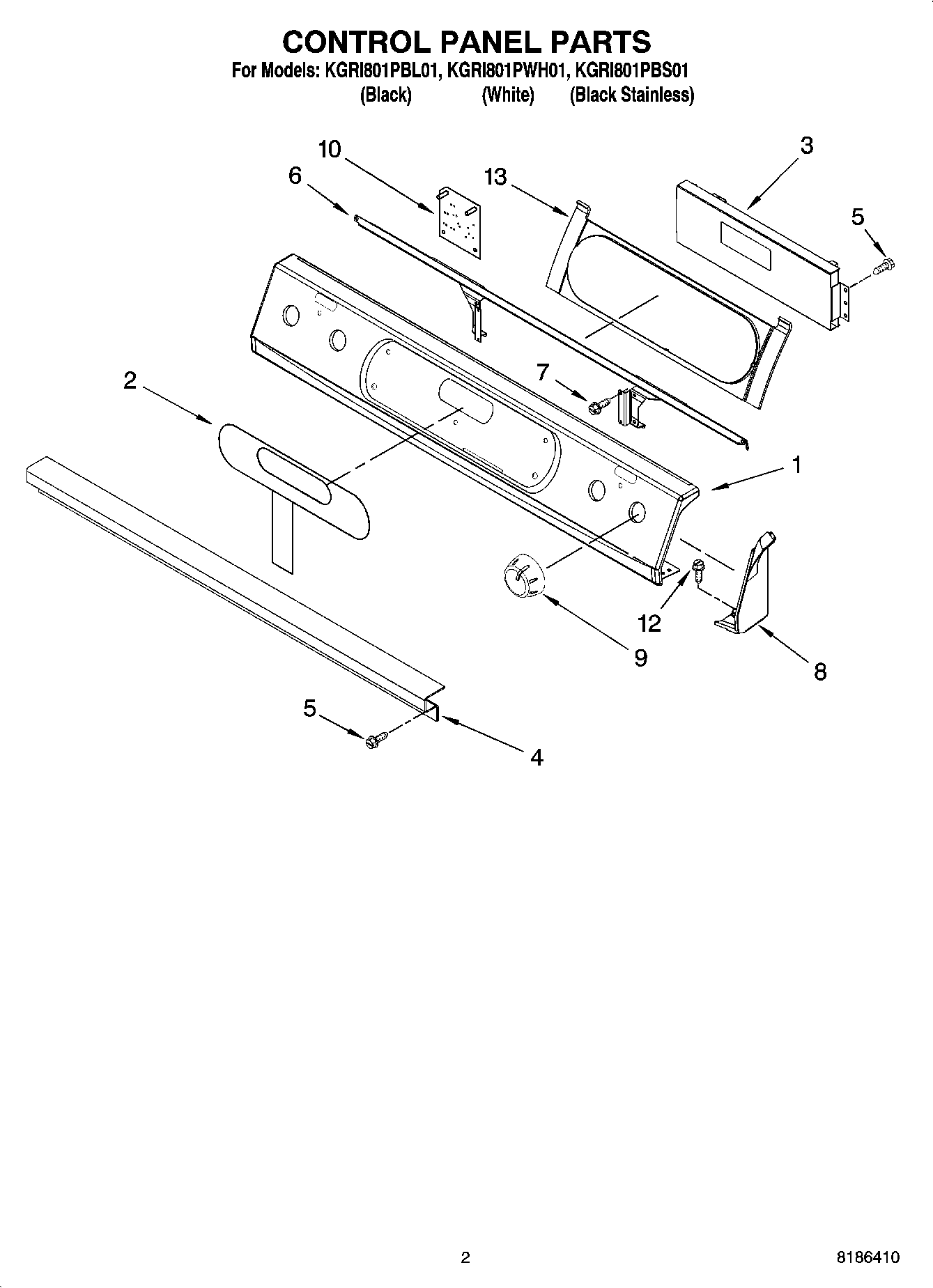

KGRI801PBS01 02 – CONTROL PANEL PARTS

KGRI801PBS01 02 – CONTROL PANEL PARTS

Written by

in

KGRI801PBS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (S.Steel)
1Control Panel (Black)
1Control Panel (White)
2Membrane Switch (Black)
2Membrane Switch (White)
3Control, Migration
4Bracket, Console
5WP3196557 Whirlpool Screw
6Bracket, User Interface
7WP486579 Whirlpool Air Conditioner Screw
8Endcap (S.Steel RH)
8Endcap (Black RH)
8Endcap (White LH)
8Endcap (S.Steel LH)
8Endcap (Black LH)
8Endcap (White RH)
9Knob (Black)
9Knob, Burner (4) (Meteorite Model)
9Knob (White)
10WPW10331686 Whirlpool Oven Spark Module
123196172 Whirlpool Oven Screw
13Insert, Membrane
