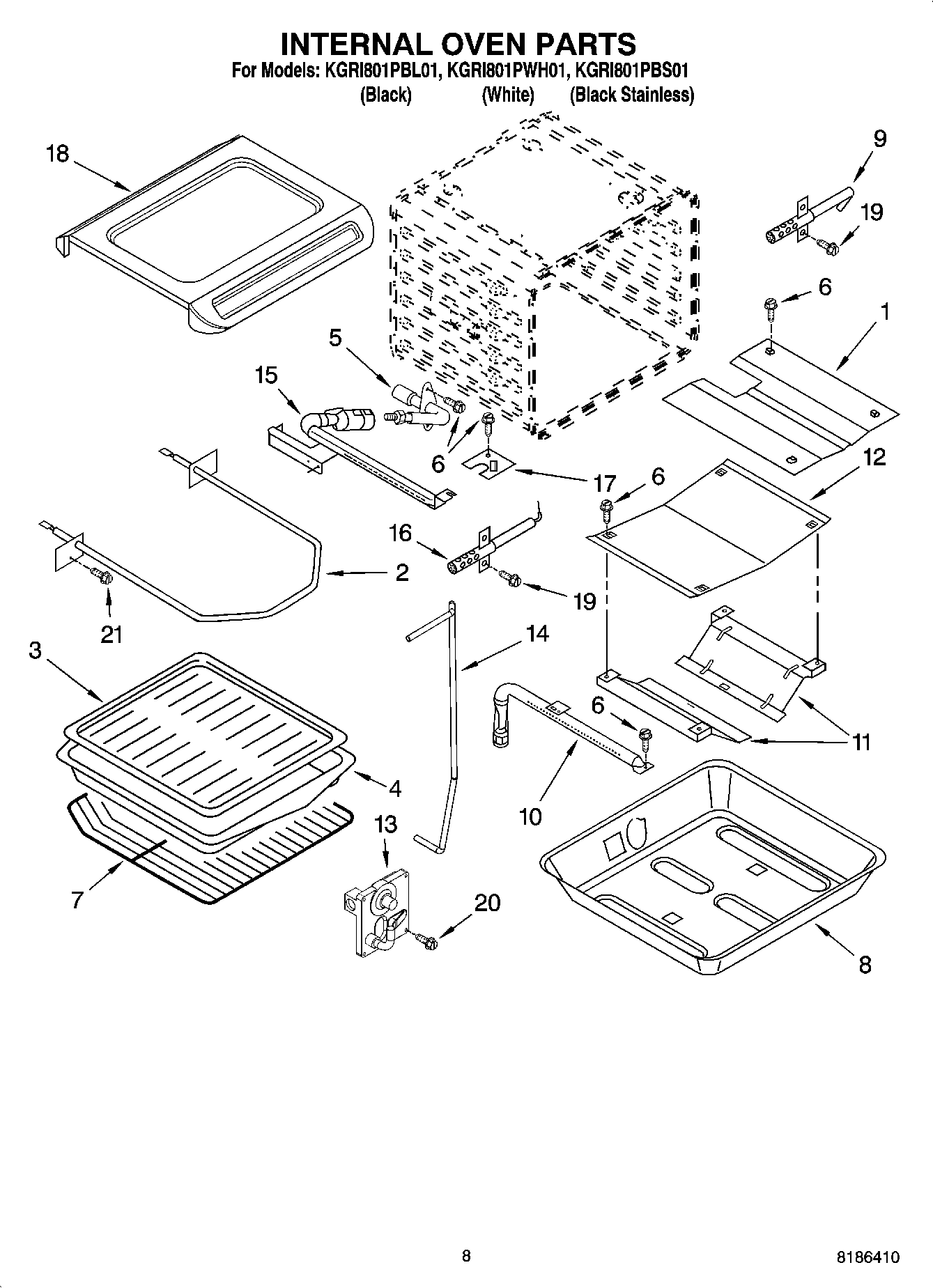

KGRI801PBS01 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	Shield, Flame
2	Element, Broil
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	9757779 Whirlpool Oven Fitting
6	SCREW
7	WPW10179152 Whirlpool Rack Oven
8	WPW10145744 Whirlpool Support
10	8191123 Whirlpool Oven Burner Assembly with Igniter
11	Shield, Oven (2)
12	Shield, Bake Flame
13	WP9763716 Whirlpool Gas Valve
14	Tube, Broil
15	Burner, Broil
16	WP8054129 Whirlpool Oven Igniter
17	Cover, Ignitor
18	WPW10272546 Whirlpool Broiler Pan
19	W11684507 Whirlpool Screw
20	Screw
21	WP4449154 Whirlpool Screw
