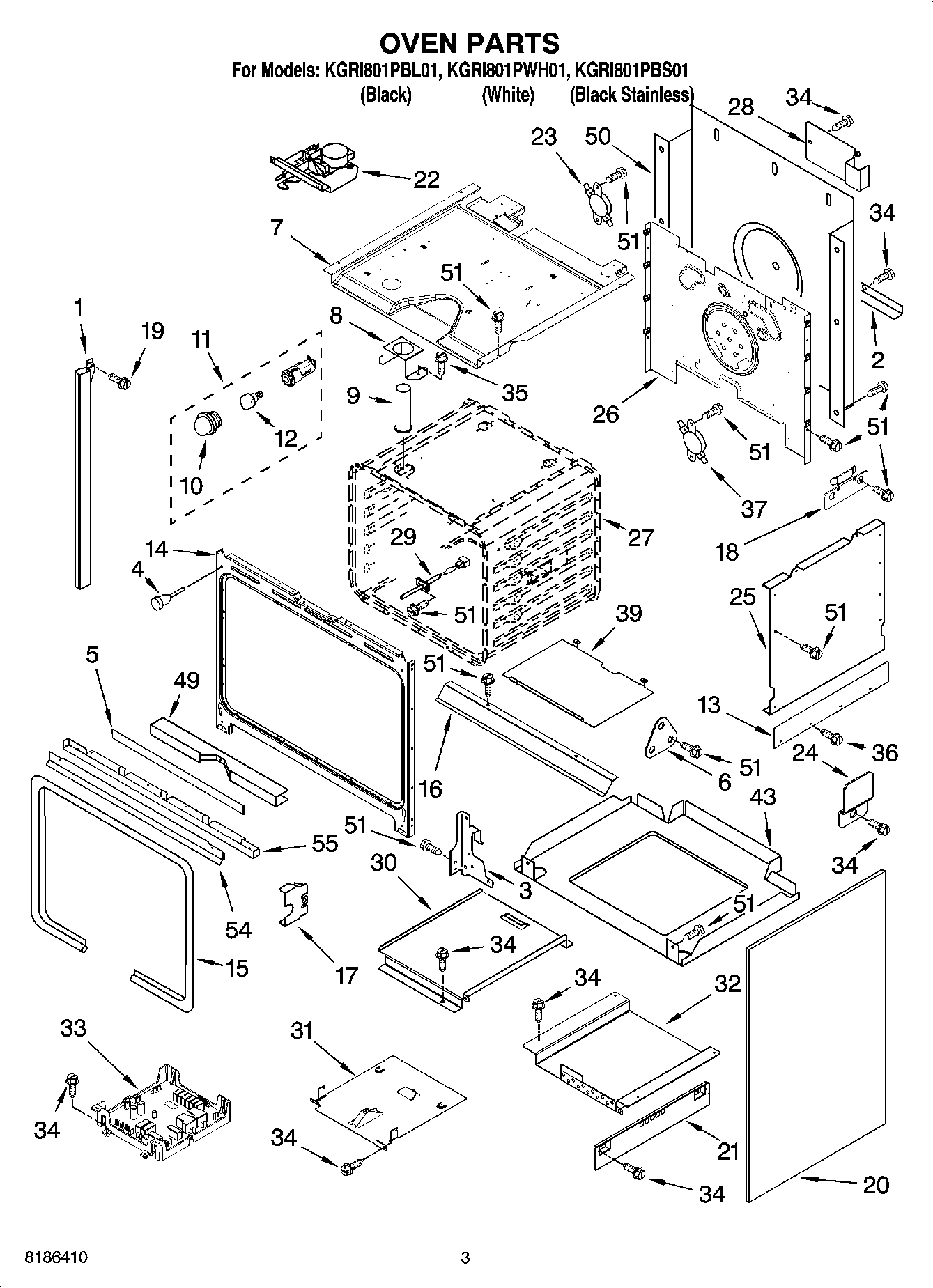

KGRI801PWH01 03 – OVEN PARTS

Products

Position	Product
1	Trim, Side (Left Hand) (Black)
1	Trim, Side (Right Hand) (White)
1	Trim, Side (Right Hand) (S.Steel)
1	Trim, Side (Right Hand) (Black)
1	Trim, Side (Left Hand) (White)
1	Trim, Side (Left Hand) (S.Steel)
2	Brace, Main Back
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Insulation, Bottom Vent
6	BRACKET,SIDE PANEL
7	Top Chassis
8	Bracket, Vent Sprt
9	Tube, Vent
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Shield, Heat
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
16	Deflector, Vent Bottom
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
19	WP3400832 Whirlpool Screw
20	Oven, Side Panel (White)
20	Oven, Side Panel (Black)
21	Brace, Side Panel
22	WP9760889 Whirlpool Door Latch
23	WP9757807 Whirlpool High Limit Thermostat
24	Clip, Side Panel
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	Cover, Rear Standoff
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Bracket, GOC
31	Slide, GOC
32	W10083460 Whirlpool Slide Assembly
33	Central, Appliance
34	WP3196557 Whirlpool Screw
35	SCREW
36	WP4449743 Whirlpool Screw
37	WP8300802 Whirlpool Thermostat
39	Plate, Relectance
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	WP4449809 Whirlpool Screw
54	Vent, Bottom Upper (S. Steel)
54	Vent, Bottom Upper (Black)
54	Ve
55	WPL 9756485WH
55	WPL 9756470
55	WPL 9756485BL
55	WPL 9756485SS
55	WPL 9756817
55	WPL ARI87930A5
