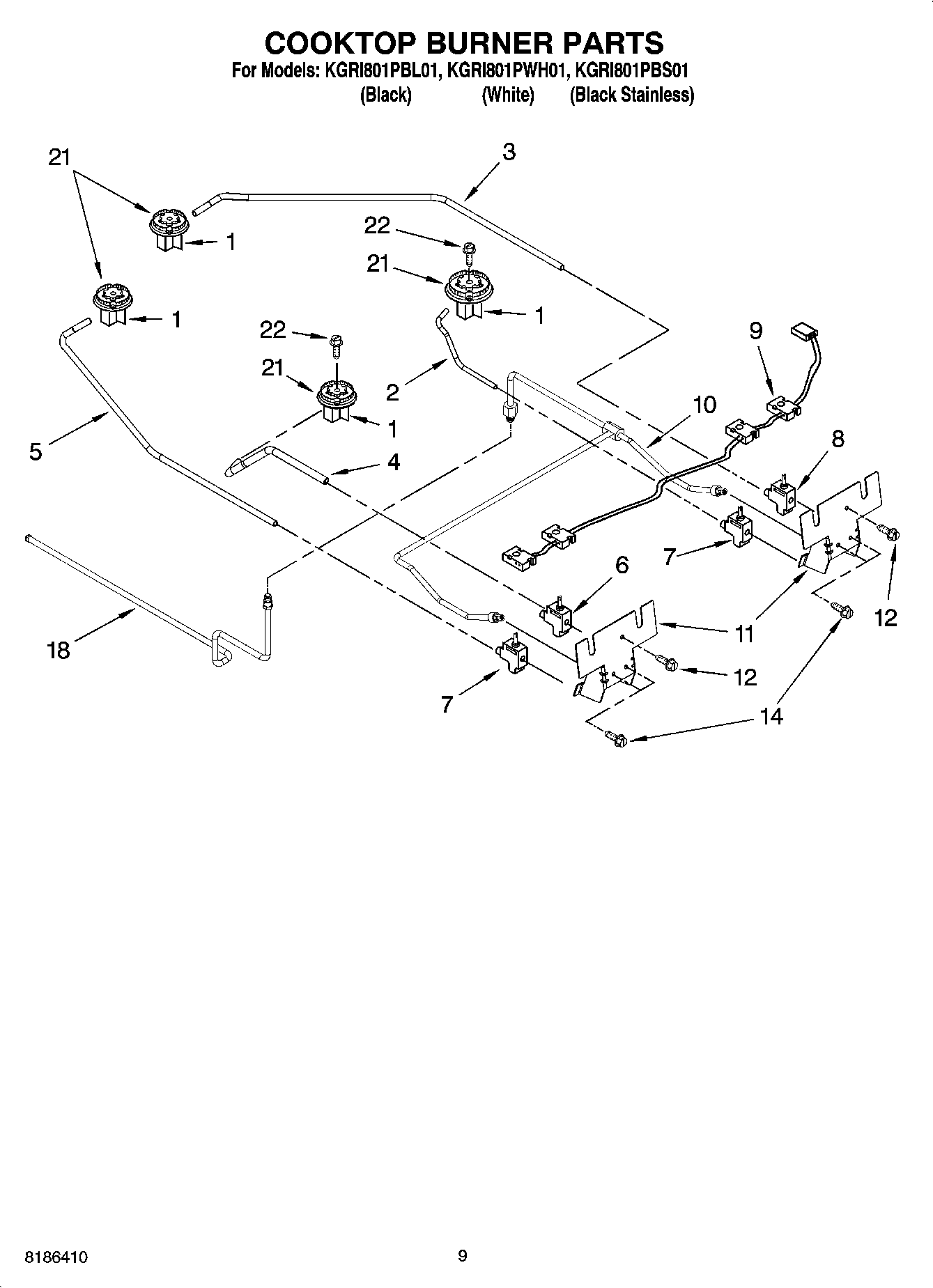

KGRI801PWH01 07 – COOKTOP BURNER PARTS, OPTIONAL PARTS

KGRI801PWH01 07 – COOKTOP BURNER PARTS, OPTIONAL PARTS

Written by

in

KGRI801PWH01 07 – COOKTOP BURNER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI87933A5
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
261900 Whirlpool Microwave Spray
W10624584 Whirlpool Power Cord
W10851603 Whirlpool Orifice
WPL ARI87932A5
WPL ARI87931A9
WPL 9760528
9756892 Whirlpool Oven Wire Harness
WPL 9756920
WPL ARI87934A5
Filler, Counter Top (White)
Filler, Counter Top (Black)
Gasket 19 x 388
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
Clip, Ground Wire
Spacer, Harness
72032 Whirlpool Touch Up Paint Black
Harness, Wire
285006 Whirlpool Spray
W11447673 Whirlpool Range Tip Anchor
1Burner Base w/Orifice (Small (2))
1WPW10244714 Whirlpool Orifice Holder
1WPW10128456 Whirlpool Orifice Holder
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Valve, Burner (Bronze)
7WP4456816 Whirlpool Burner Valve
8WP4456817 Whirlpool Burner Valve
99756822 Whirlpool Wire Harness
10Tube, Manifold
11Manifold (Cooktop)
12WP3196557 Whirlpool Screw
14WP3186217 Whirlpool Screw
184453754 Whirlpool Oven Burner Tube
21Head, Burner (Small)
21WP4455981 Whirlpool Burner Head
21Burner Head (Turbi)
22WP3368921 Whirlpool Screw
