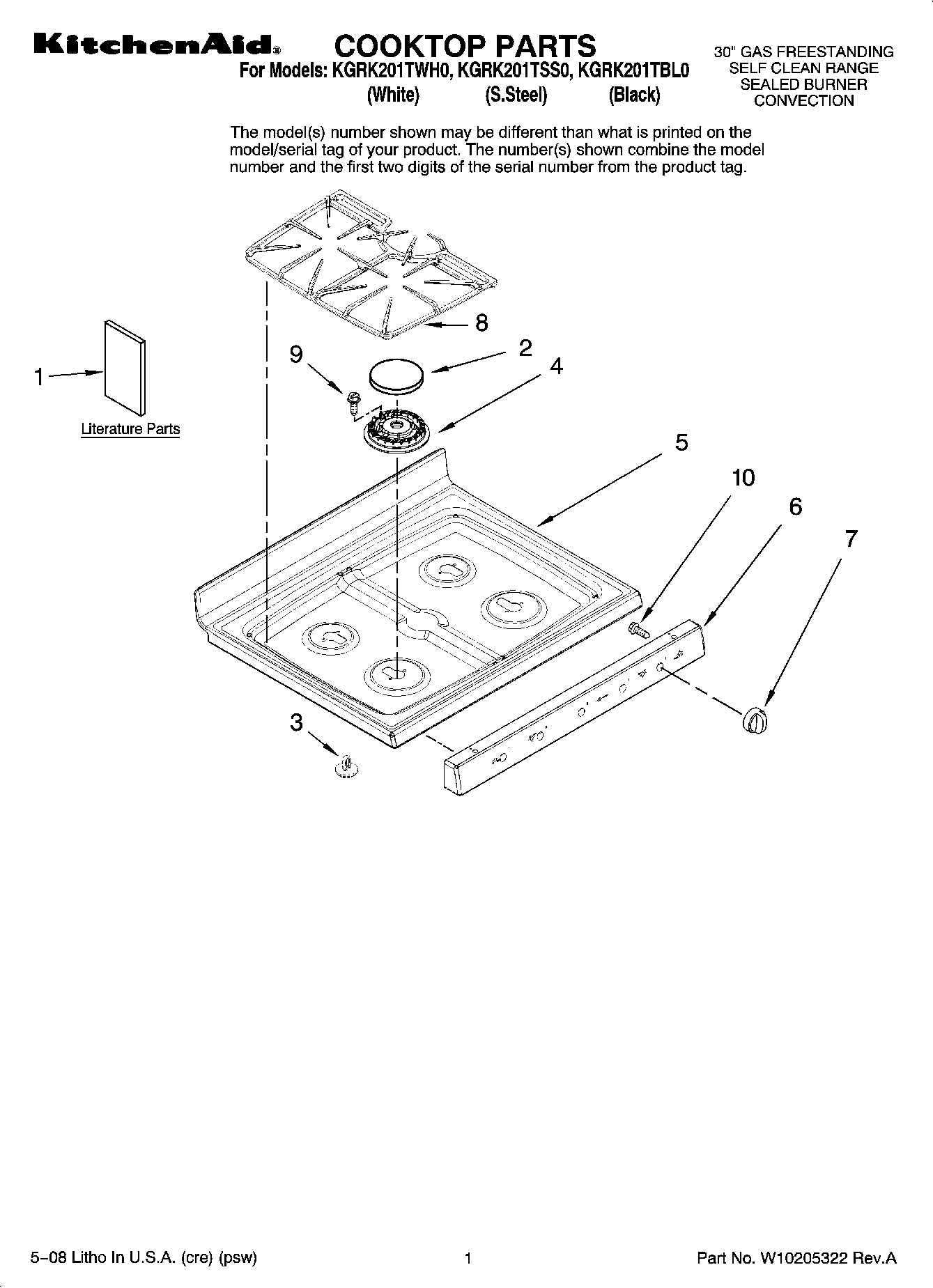

KGRK201TBL0 01 – COOKTOP PARTS

Products

PositionProduct
1Wiring Diagram
1Owners Manual
1Installation Instructions
2Cap, Burner (RF) (Gray)
2Cap, Burner (RR & LR) (Black)
2Cap, Burner (RR & LR) (Gray)
2WP7504P300-60 Whirlpool Burner Cap
2WP7504P299-60 Whirlpool Burner Cap
2WP7504P298-60 Whirlpool Range Burner Cap
27504P295-60 Whirlpool Burner Cap
27504P294-60 Whirlpool Burner Cap
374008761 Whirlpool Spacer Snap-In
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
5Cooktop (Black)
5Cooktop (White)
6Panel, Manifold (White)
6Panel, Manifold (Black)
7WPW10160372 Whirlpool Knob
7WPW10160374 Whirlpool Knob
7WPW10160375 Whirlpool Oven Control Knob
8Grate, Burner (2) (Gray)
8Grate, Burner (2) (Black)
9Screw (8)
10SCREW
