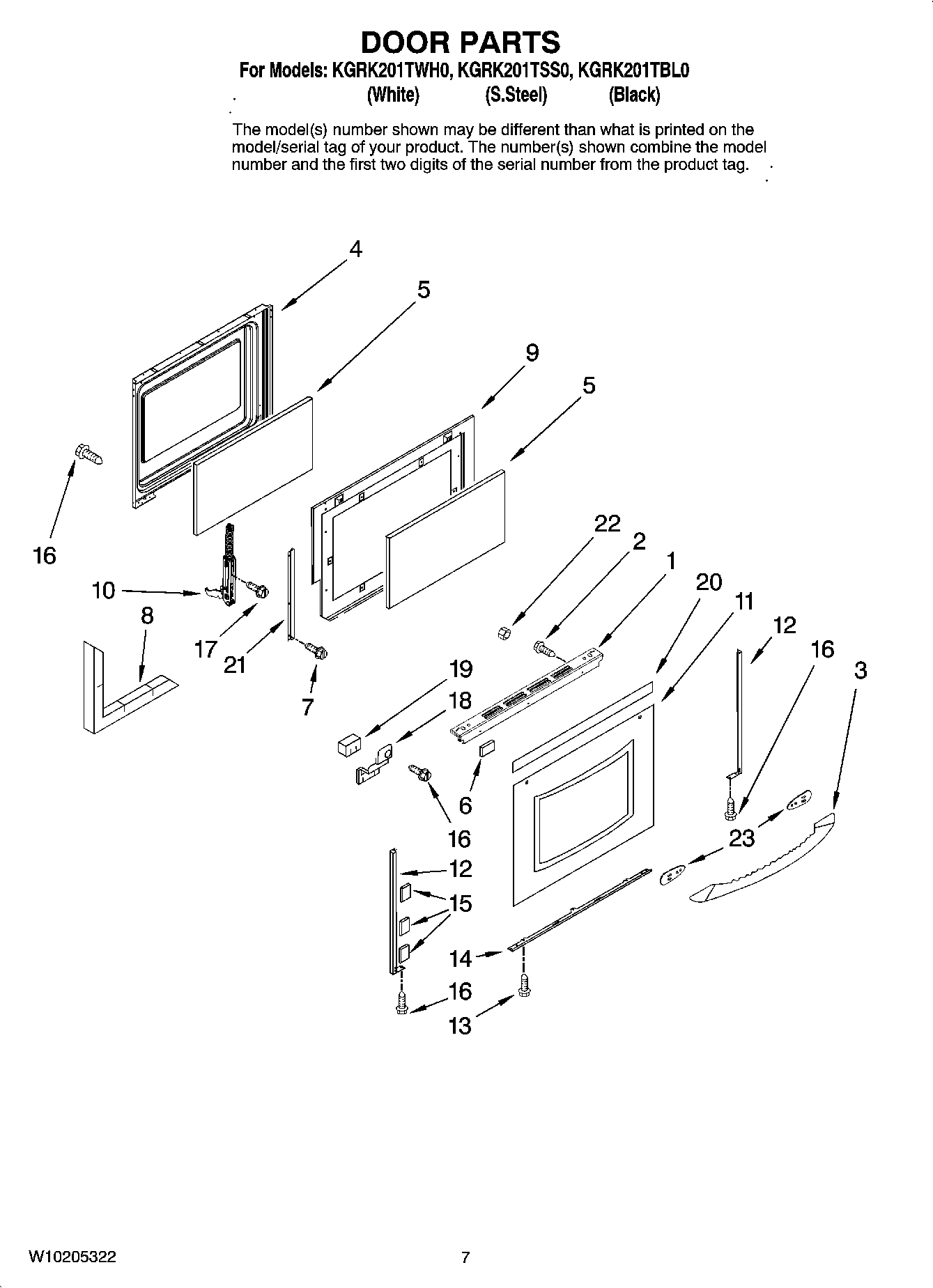

KGRK201TBL0 05 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (Black)
1	Trim, Door Top (White)
2	W11164114 Whirlpool Screw
3	Handle, Door (S.Steel)
3	Handle, Door (Black)
3	Handle, Door (White)
4	Lining, Door
5	74003645 Whirlpool Range Oven Door Inner Glass
6	Tape, White
7	SCREW
8	Insulation, Door
9	Baffel, Retainer
10	74010546 Whirlpool Range Oven Door Hinge
11	GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN REPLACING DOOR GLASS)
11	GLASS, DOOR (WHITE)
12	Trim, Door Side (White)
12	Trim, Door Side (Black)
13	WP98008545 Whirlpool Screw
14	Trim, Lower Door (Black)
14	WP3608F092-71 Whirlpool Bottom Trim
15	WP74009025 Whirlpool Double Sided Tape
15	Tape, Double Sided (White)
16	WPY706189 Whirlpool Stove Screw
17	SCREW
18	Bracket, Handle (Left)
18	Bracket, Handle (Right)
19	Insulation, Corner
20	Tape, Foil (3“)
21	3801F886-51 Whirlpool Mounting Bracket
22	WP3400029 Whirlpool Dishwasher Nut
23	Spacer, Handle (Black)
23	Spacer, Handle (White)
