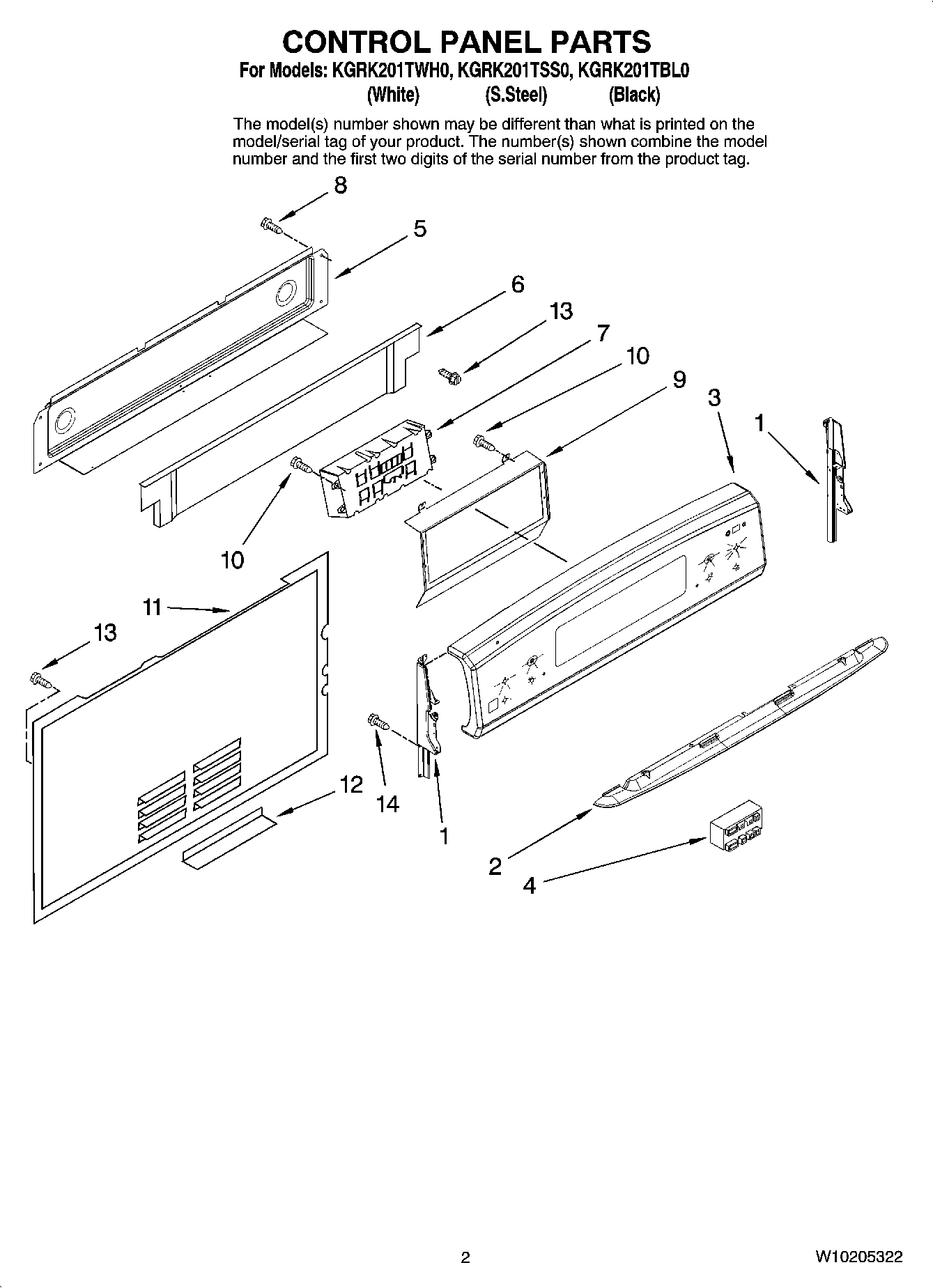

KGRK201TSS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (WHITE (RIGHT))
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
2	Heat Shield, Visor (White)
2	Heat Shield, Visor (Black)
3	Panel, Backguard & Switch Assy (S.Steel)
3	7450P076-60 Whirlpool Membrane Switch
4	74009098 Whirlpool Spark Module
5	Cover, Rear Wire
6	Shield, Vent
7	Control
8	WP90767 Whirlpool Screw
9	Bracket, Control
10	WP74003976 Whirlpool Screw
11	Cover, Main Wire
12	Bottom, Wire Cover
13	WP7101P434-60 Whirlpool Screw
14	SCREW
