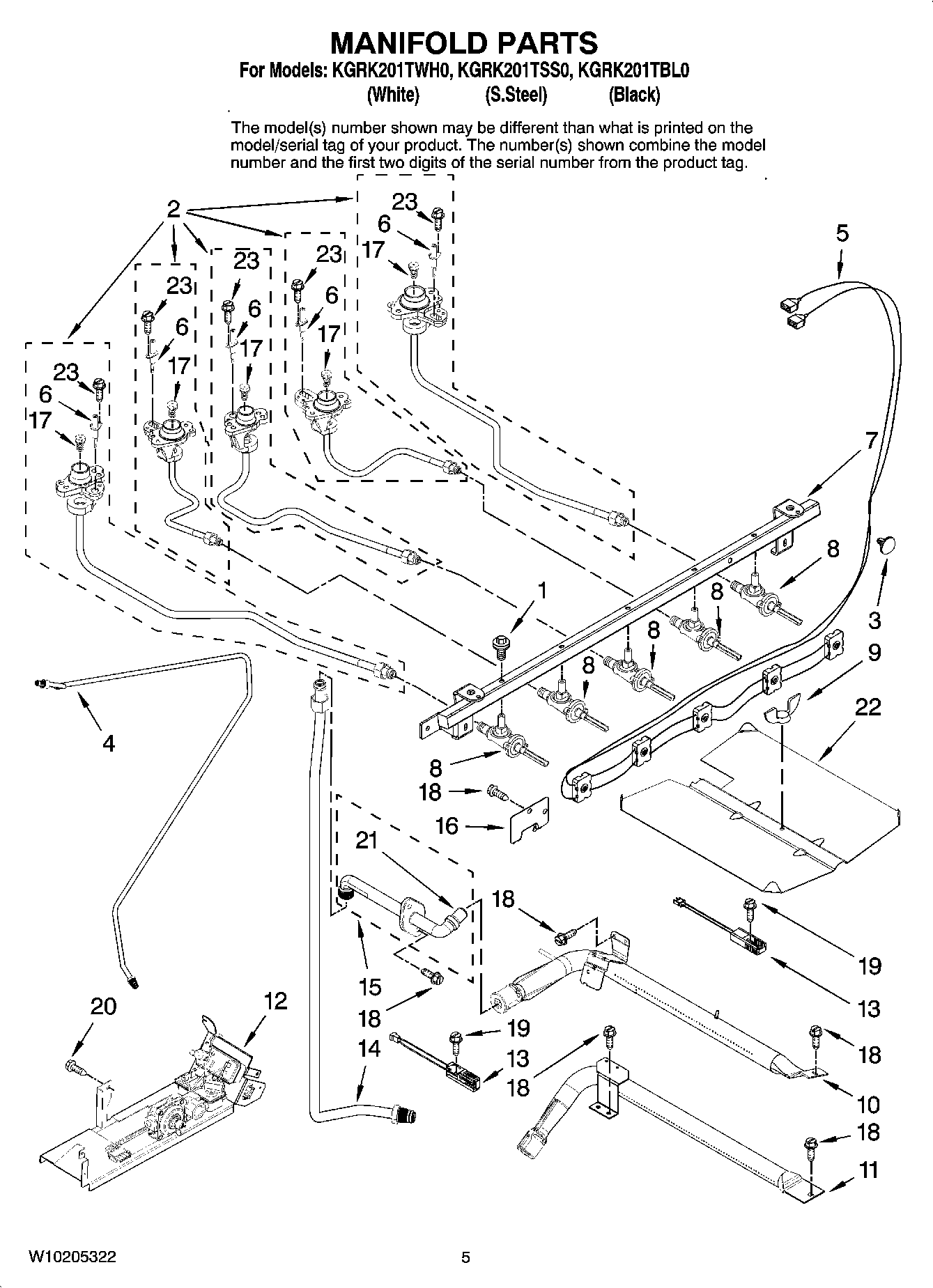

KGRK201TSS0 04 – MANIFOLD PARTS
Written by
in
KGRK201TSS0 04 – MANIFOLD PARTS
Products
Position
Product
Following Parts Not Illustrated
WP74008871 Whirlpool Orifice Assembly
1
Screw, Valve
2
Holder, Orifice (CTR)
2
WP74009099 Whirlpool Orifice Holder
2
W10154209 Whirlpool Orifice Holder
2
Holder, Orifice (LF)
2
Holder, Orifice (LR)
3
74008761 Whirlpool Spacer Snap-In
4
Tubing, Main Supply
5
Harness, Igniter Includes Switches
6
WP74009958 Whirlpool Spark Electrode Assembly
7
Pipe, Manifold
8
Valve (LR/RR/CTR)
8
74010751 Whirlpool Oven 16K Valve
8
WP7502P499-60 Whirlpool Burner Valve
9
7103P030-60 Whirlpool Wing Nut
10
Burner, Broiler
11
Burner, Bake
12
Valve/Regulator
13
74007498 Whirlpool Range Flat Igniter
13
WP7432P136-60 Whirlpool Oven Igniter
14
74008830 Whirlpool Oven Broil Tubing
15
74008818 Whirlpool Broil Burner Fitting
16
COVER, IGNITOR WIRE
17
Orifice, Burner (Left Front)
17
Orifice, Burner (Right Front)
17
Orifice, Burner (Left Rear)
18
SCREW
19
SCREW
20
WIRING HARNESS PARTS, SCREW, GROUND
21
74008834 Whirlpool Oven Orifice Holder
22
3601P336-45 Whirlpool Burner Baffle
23
WP8273062 Whirlpool Screw
←
