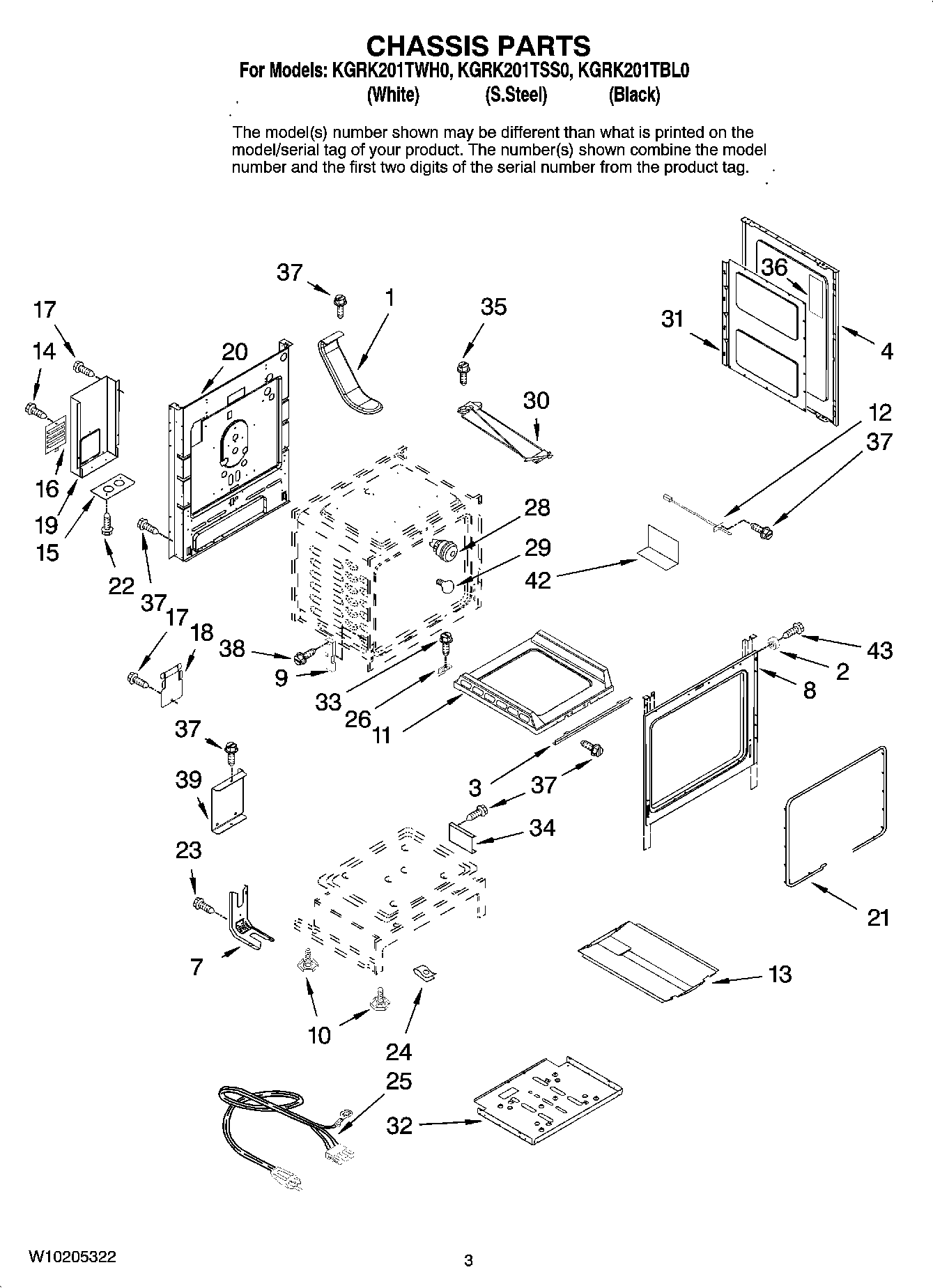

KGRK201TWH0 03 – CHASSIS PARTS

Products

Position	Product
	Insulation, Back
	Insulation
	Insulation, Wrap
1	Vent, Oven
2	74008690 Whirlpool Oven Spacer
3	Support, Oven
4	Panel, Side (Black)
4	Panel, Side (White)
7	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
8	Frame, Front Not Serviced
9	WP74010551 Whirlpool Receiver
10	W11665456 Whirlpool Range Level Foot
11	WPW10211368 Whirlpool Oven Bottom
12	12001655 Whirlpool Oven Sensor
13	Baffle, Burner
14	SCREW
15	Plate, Conduit
16	Panel, Access
17	WP7101P434-60 Whirlpool Screw
18	Cover, Broil
19	Cover, Lower Wire
20	Back, Main
21	W11562931 Whirlpool Door Gasket
22	SCREW, HINGE
23	Screw
24	74008835 Whirlpool Clip Retainer
25	Cord, Power
26	Bracket, Oven Bottom
28	WP74011278 Whirlpool Light
29	BULB, LIGHT
30	Latch Assembly
31	Retainer, Insulation
32	Shield, Heat
33	WP74003976 Whirlpool Screw
34	Bracket, Oven
35	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
36	Insulation
37	SCREW
38	SCREW
39	BRACKET, OVEN
42	Insulator, Shield
43	Screw
