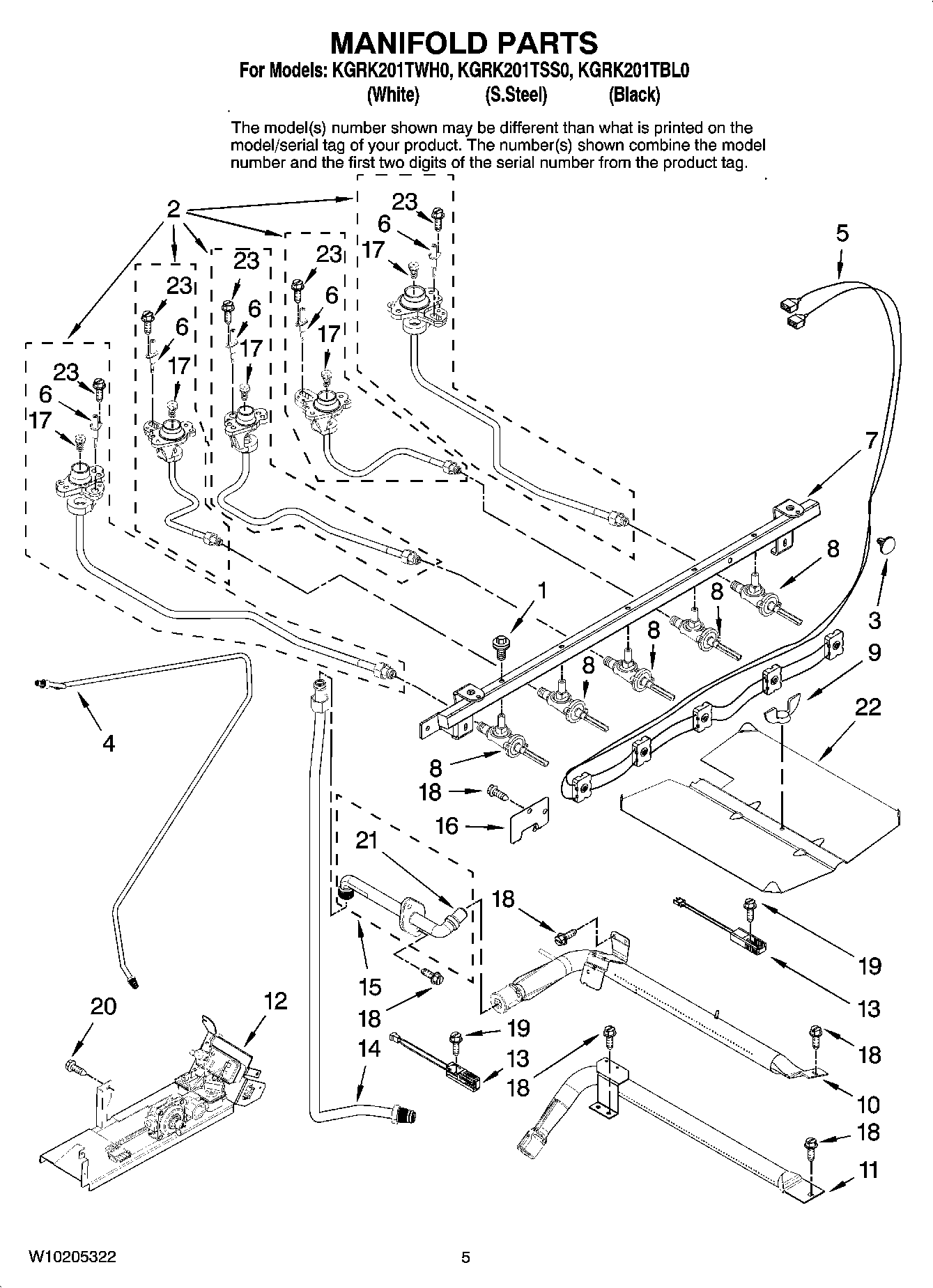

KGRK201TWH0 04 – MANIFOLD PARTS

KGRK201TWH0 04 – MANIFOLD PARTS

Written by

in

KGRK201TWH0 04 – MANIFOLD PARTS

Products

PositionProduct
Following Parts Not Illustrated
WP74008871 Whirlpool Orifice Assembly
1Screw, Valve
2Holder, Orifice (CTR)
2WP74009099 Whirlpool Orifice Holder
2W10154209 Whirlpool Orifice Holder
2Holder, Orifice (LF)
2Holder, Orifice (LR)
374008761 Whirlpool Spacer Snap-In
4Tubing, Main Supply
5Harness, Igniter Includes Switches
6WP74009958 Whirlpool Spark Electrode Assembly
7Pipe, Manifold
8Valve (LR/RR/CTR)
874010751 Whirlpool Oven 16K Valve
8WP7502P499-60 Whirlpool Burner Valve
97103P030-60 Whirlpool Wing Nut
10Burner, Broiler
11Burner, Bake
12Valve/Regulator
1374007498 Whirlpool Range Flat Igniter
13WP7432P136-60 Whirlpool Oven Igniter
1474008830 Whirlpool Oven Broil Tubing
1574008818 Whirlpool Broil Burner Fitting
16COVER, IGNITOR WIRE
17Orifice, Burner (Left Front)
17Orifice, Burner (Right Front)
17Orifice, Burner (Left Rear)
18SCREW
19SCREW
20WIRING HARNESS PARTS, SCREW, GROUND
2174008834 Whirlpool Oven Orifice Holder
223601P336-45 Whirlpool Burner Baffle
23WP8273062 Whirlpool Screw
