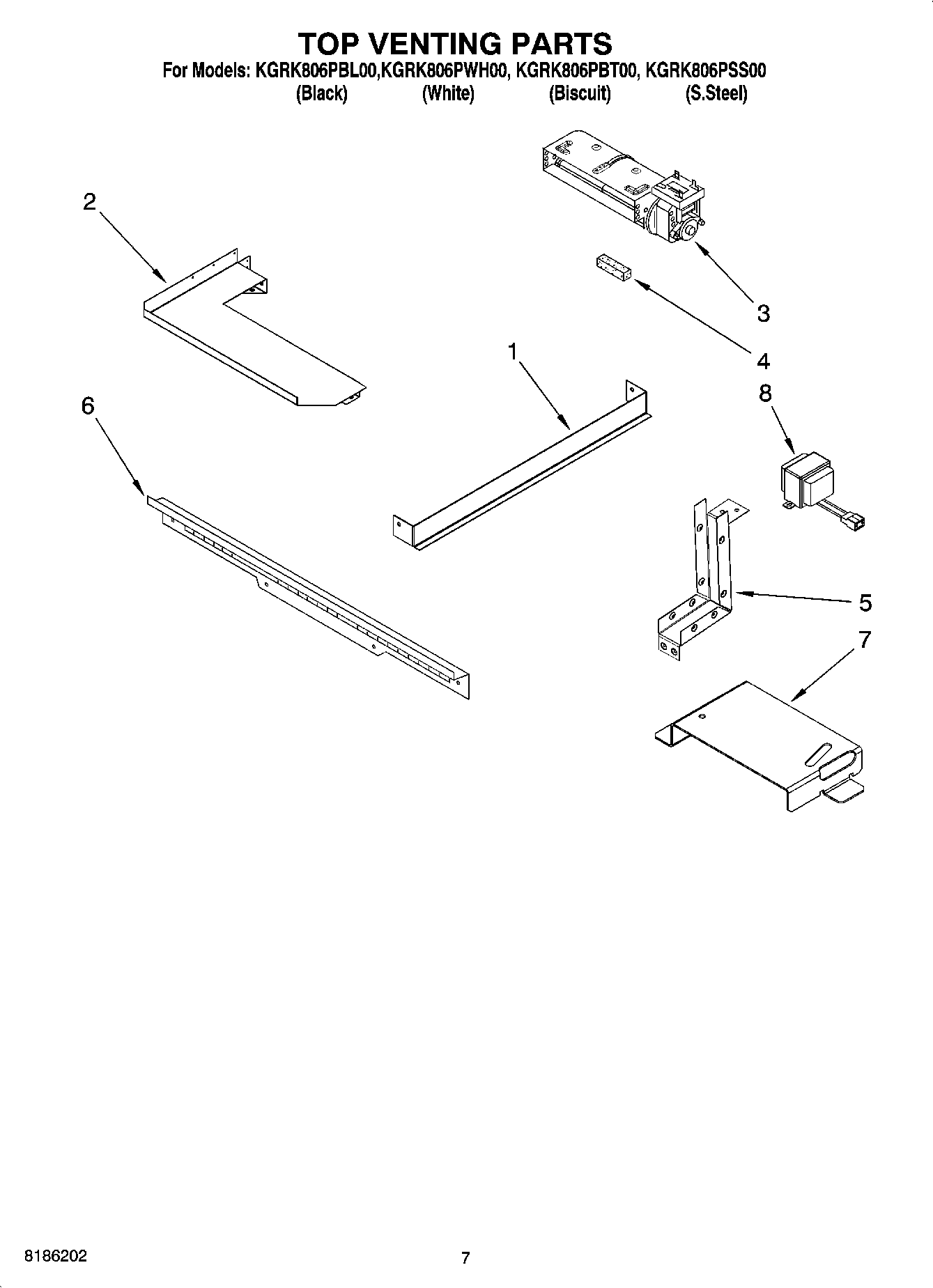

KGRK806PBL00 04 – TOP VENTING PARTS

Products

PositionProduct
1Front, Air Duct
1Screw
2Top, Air Duct (L.Hand)
2Top, Air Duct (R.Hand)
3W10810687 Whirlpool Blower Assembly
3WP4455352 Whirlpool Mounting Bracket
4W10491987 Whirlpool Foam Seal
5Corner, Air Duct (L.Hand)
5Corner, Air Duct (R.Hand)
6Vent, (Control Panel)
6WP4450038 Whirlpool Screw
7WP9757829 Whirlpool Mounting Bracket
7WP4449809 Whirlpool Screw
8Transformer
8Screw (4)
