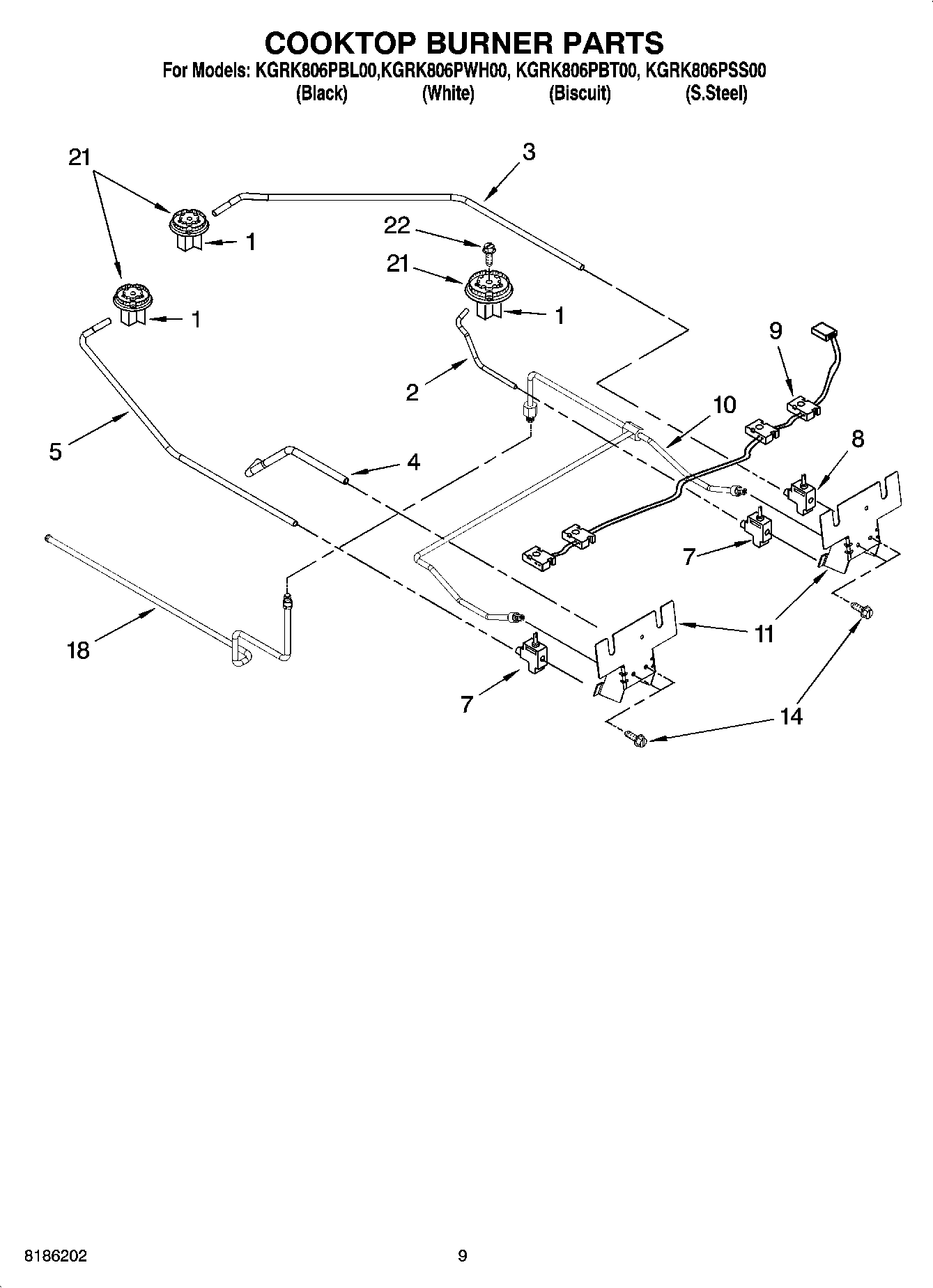

KGRK806PBL00 06 – COOKTOP BURNER PARTS

Products

Position	Product
1	Burner Base w/Orifice (Small (2))
1	WPW10244714 Whirlpool Orifice Holder
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
7	WP4456816 Whirlpool Burner Valve
8	WP4456817 Whirlpool Burner Valve
9	WP9756824 Whirlpool Wire Harness
10	Tube, Manifold
11	Manifold
11	Screw (4)
14	WP3186217 Whirlpool Screw
18	4453754 Whirlpool Oven Burner Tube
21	Burner Head (Turbi)
21	Head, Burner (Small)
21	WP4455981 Whirlpool Burner Head
22	WP3368921 Whirlpool Screw
