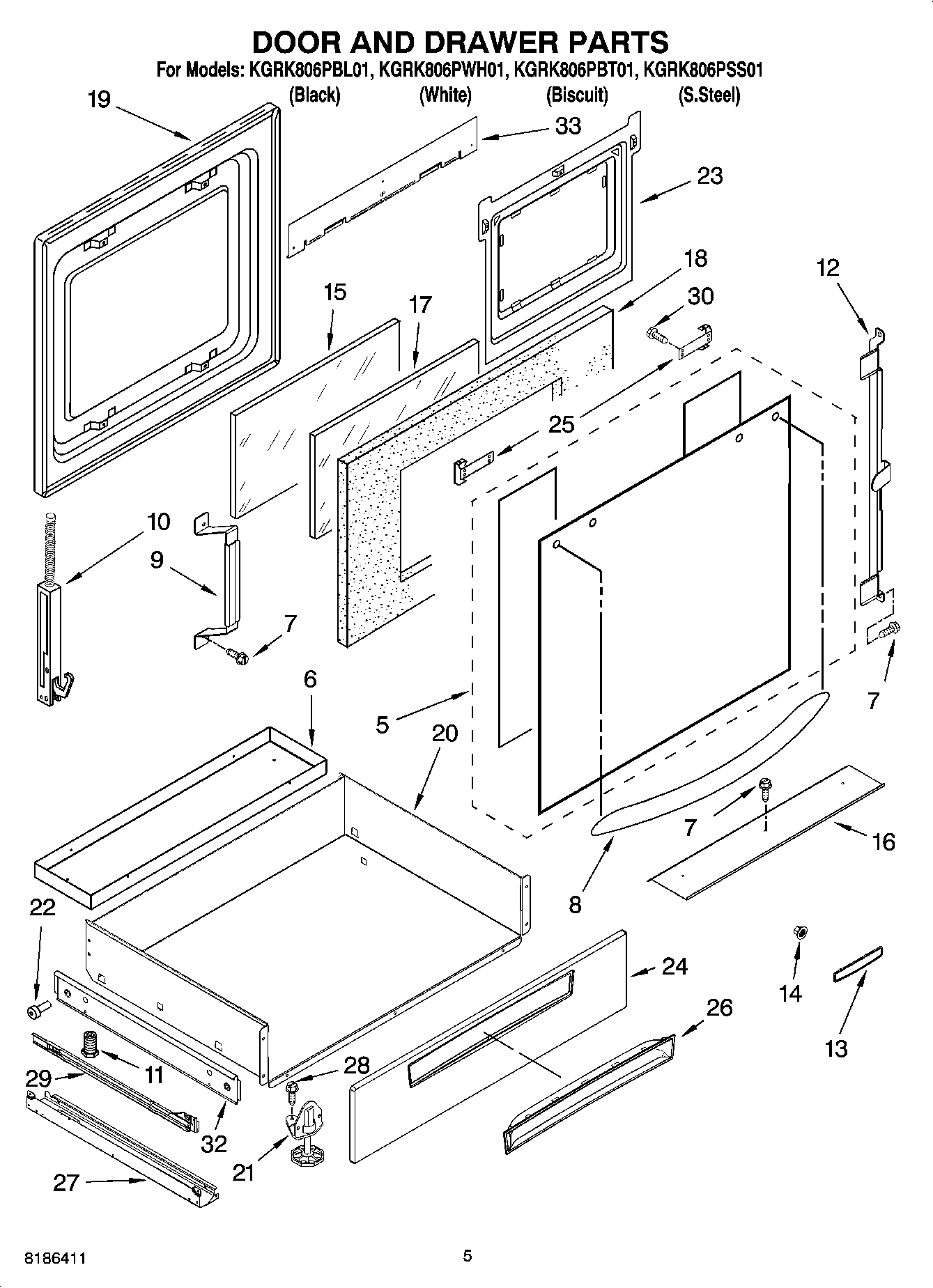

KGRK806PBL01 03 – DOOR AND DRAWER PARTS
Written by
in
KGRK806PBL01 03 – DOOR AND DRAWER PARTS
Products
Position
Product
5
Glass, Door Front (Black)
5
Glass, Door Front (Biscuit)
5
Glass, Door Front (S.Steel)
5
Glass, Door Front (White)
6
Panel, Drawer
7
WP4449809 Whirlpool Screw
8
Handle, Door (White)
8
Handle, Door (S.Steel)
8
Handle, Door (Biscuit)
8
Handle, Door (Black)
9
Bracket, Central
10
HINGE-DOOR LH/SS DOOR SPRING
10
WP9760579 Whirlpool Right Door Hinge
11
WPW10058460 Whirlpool Appliance Levelling Leg
12
WP9759229 Whirlpool Mounting Bracket
13
Nameplate (Black)
13
Nameplate (White)
14
Palnut
15
WP9757706 Whirlpool Door Inner Glass
16
4457114 Whirlpool Oven Heat Shield
17
WP4449263 Whirlpool Inner Door Glass
18
WP4451722 Whirlpool Door Insulation Assembly
19
WP9759413 Whirlpool Door Liner
20
Drawer
21
WP3196037 Whirlpool Leveling Foot
22
814229 Whirlpool Primary Roller
23
WP4457132 Whirlpool Retainer
24
Front, Drawer (Black)
24
Front, Drawer (Biscuit)
24
Front, Drawer (S.Steel)
24
Front, Drawer (White)
25
Bracket, Handle (R.Hand)
25
Bracket, Handle (L.Hand)
26
Handle, Drawer (Black)
26
Handle, Drawer (Biscuit)
26
Handle, Drawer (White)
27
Side, Base (L.Side)
27
Side, Base (R.Side)
28
WP4449743 Whirlpool Screw
29
Track, Drawer (R.Side)
29
Track, Drawer (L.Side)
30
WP8533988 Whirlpool Screw Fastener
32
Guide, Roller
33
Shield, Heat Top
←
