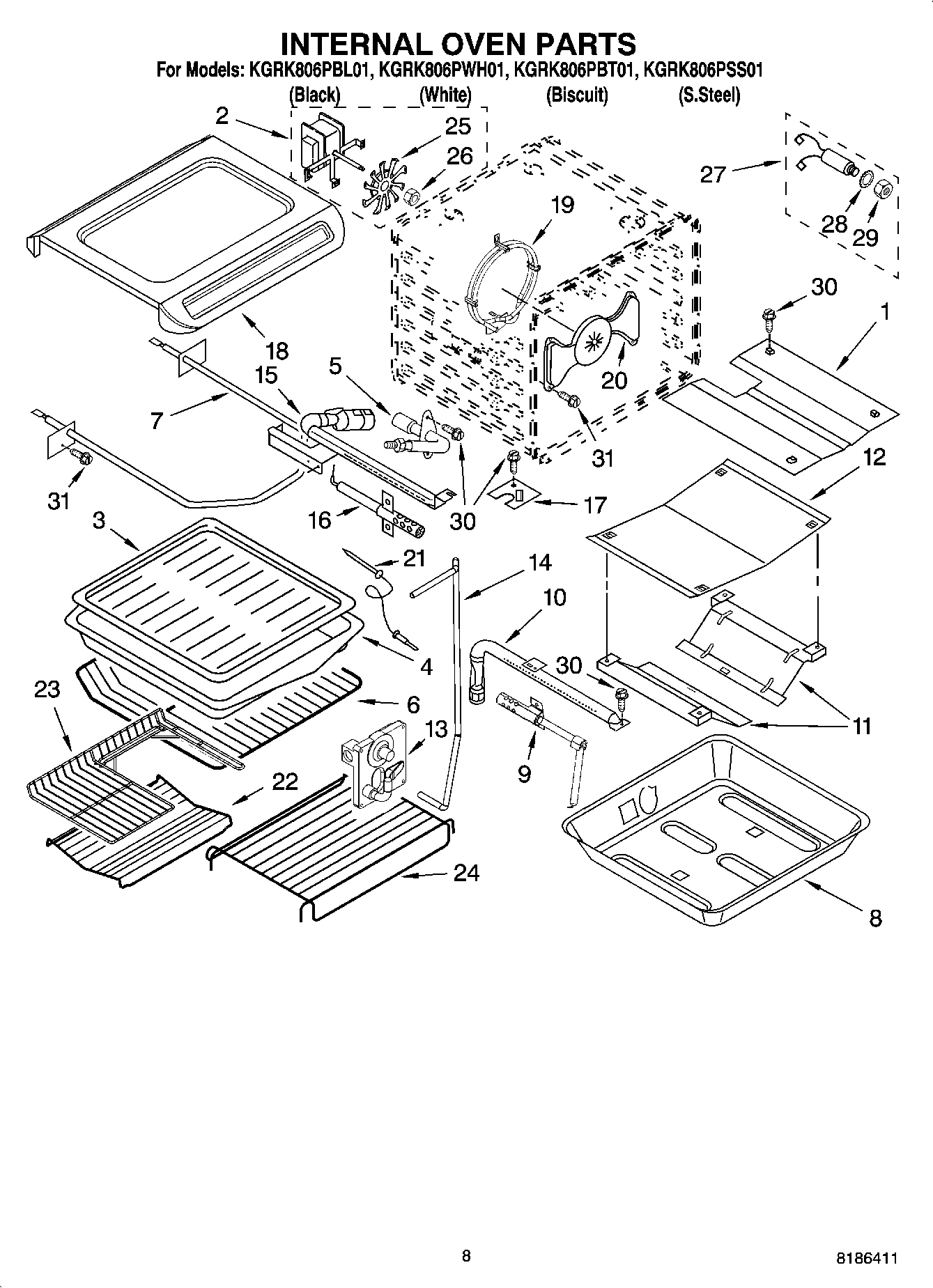

KGRK806PBL01 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	Shield, Flame
2	Motor Convection
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	9757779 Whirlpool Oven Fitting
6	WPW10179152 Whirlpool Rack Oven
6	Guide, Easy Set
6	Guide, Easy Set (French)
7	Element, Broil
8	WPW10145744 Whirlpool Support
10	8191123 Whirlpool Oven Burner Assembly with Igniter
11	Shield, Oven (2)
12	Shield, Bake Flame
13	WP9763716 Whirlpool Gas Valve
14	Tube, Broil
15	Burner, Broil
16	WP8054129 Whirlpool Oven Igniter
17	Cover, Ignitor
18	WPW10272546 Whirlpool Broiler Pan
19	9760777 Whirlpool Oven Element
20	Cover, Fan
21	WP9755542 Whirlpool Oven Meat Probe
22	Rack, Roasting
23	Rack, Half
24	WP8274022 Whirlpool Oven Rack
25	WP4452226 Whirlpool Convection Fan
26	Nut
27	8186589 Whirlpool Jack Probe
28	WP9755547 Whirlpool Lockwasher
29	WP9755546 Whirlpool Locknut
30	SCREW
31	WP4449154 Whirlpool Screw
