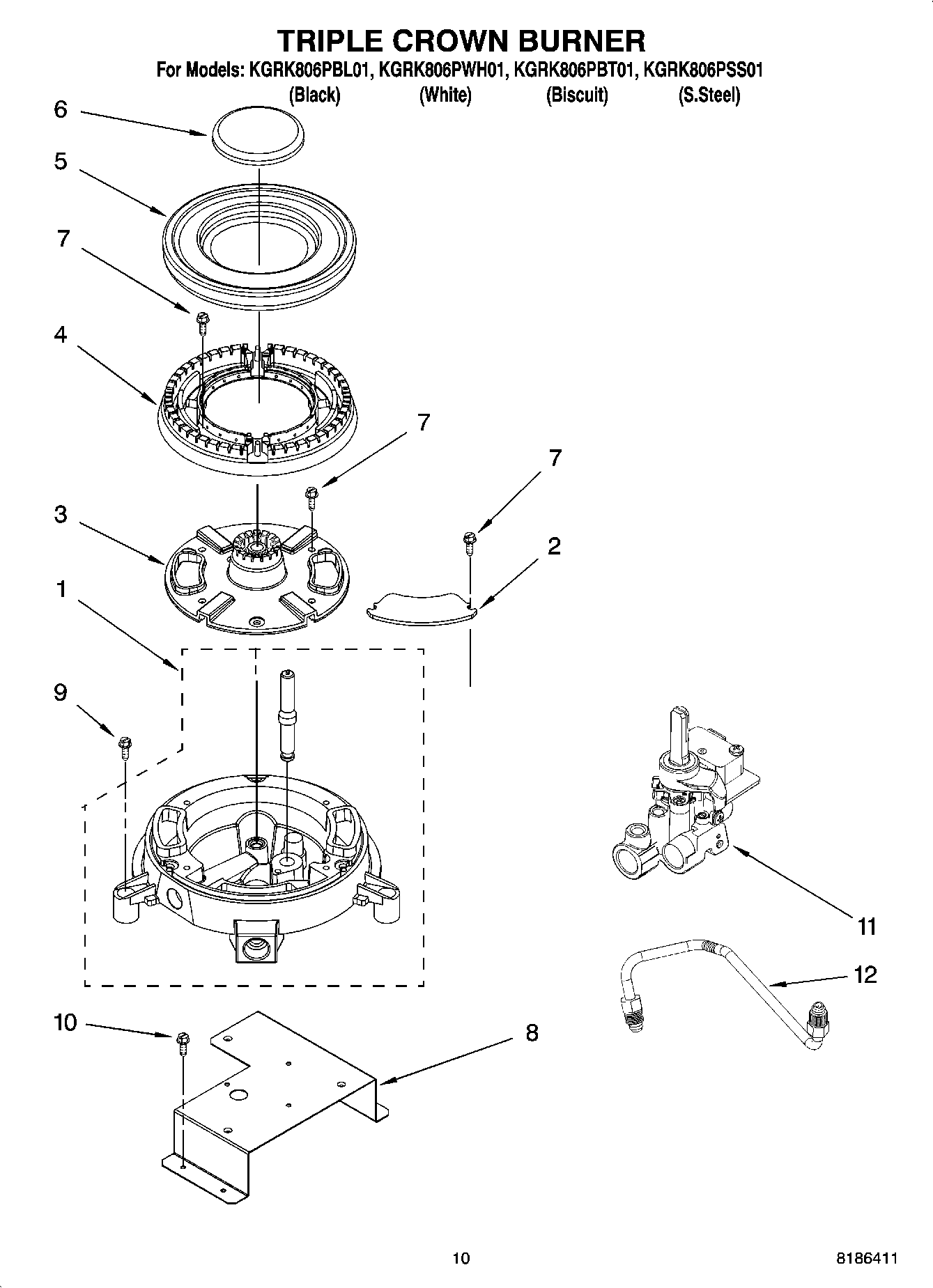

KGRK806PBL01 07 – TRIPLE CROWN BURNER

KGRK806PBL01 07 – TRIPLE CROWN BURNER

Written by

in

KGRK806PBL01 07 – TRIPLE CROWN BURNER

Products

PositionProduct
1Burner Assy., Triple Crown Brnr
28285250 Whirlpool Oven Cover Plate
3WP8285255 Whirlpool Burner Head
4WP8285256 Whirlpool Burner Head
5Cap, Burner Ext. (Black)
5WP8285258 Whirlpool Top Cap
5Cap, Burner Ext. (Mouse Gray)
5Cap, Burner Ext. (Moleskin)
6Cap, Burner Int. (Black)
6Cap, Burner Int. (Mouse Gray)
6WP9758829CB Whirlpool Burner Cap
6Cap, Burner Int. (Moleskin)
8Bracket, Triple Crown Burner
9WP12990527 Whirlpool Microwave Screw
10WP3400702 Whirlpool Screw
11VALVE, TCB
12Tube, T.C.B. Gas
