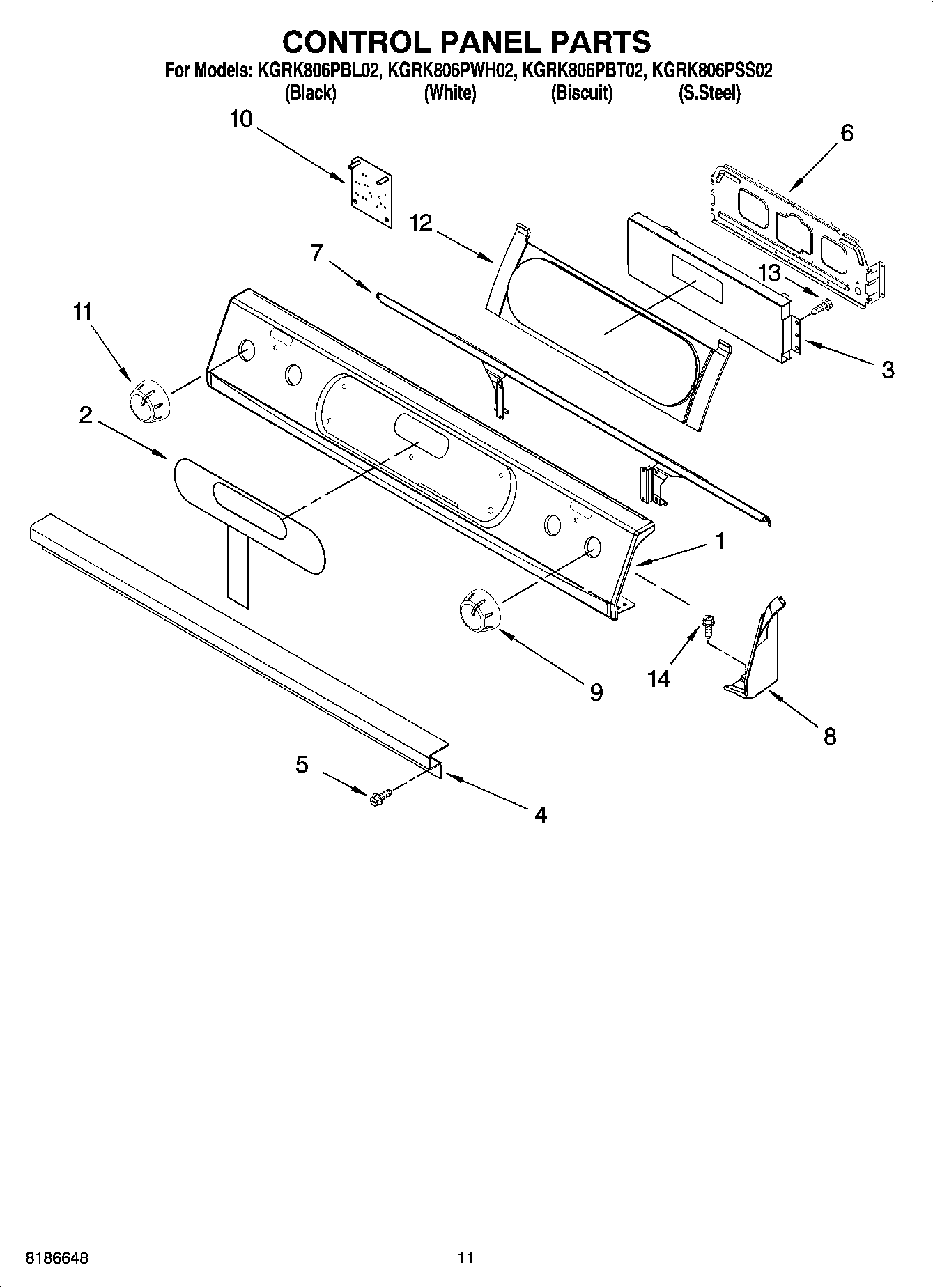

KGRK806PBL02 08 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

KGRK806PBL02 08 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KGRK806PBL02 08 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI87982A8
9756921 Whirlpool Oven Wire Harness
W10624584 Whirlpool Power Cord
261900 Whirlpool Microwave Spray
W10851603 Whirlpool Orifice
WP4455352 Whirlpool Mounting Bracket
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
9757426 Whirlpool Oven LP Conversion Kit
Gasket 19 x 388
WPL ARI87981A1
WPL ARI87979A3
WPL ARI87978A9
WPL ARI87980A2
WPL 9760526
WPL 9756920
Bakeware, 5 pc
Filler, Counter Top (White)
Filler, Counter Top (Biscuit)
Filler, Counter Top (Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Clip, Ground Wire
Wire, 25` Roll (Red 14 Ga.)
WP4448950 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
WP112432 Whirlpool Nut Assembly
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
WP3400015 Whirlpool Screw
WP4449809 Whirlpool Screw
Spacer, Harness
285006 Whirlpool Spray
242831 Whirlpool Oven Wire
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Harness, Wire
1Control Panel (White)
1Control Panel (Black)
1Control Panel (Biscuit)
1Control Panel (S.Steel)
2WP9756559ES Whirlpool Membrane Switch
2Membrane Switch (White)
2Membrane Switch (Black)
2WP9756559BT Whirlpool Membrane Switch
3Control, Migration
4Bracket, Console
5WP3196557 Whirlpool Screw
6Support, Gas Valve
7Bracket, User Interface
8Endcap (Biscuit LH)
8Endcap (Black RH)
8Endcap (Black LH)
8Endcap (S.Steel LH)
8Endcap (White LH)
8Endcap (Biscuit RH)
8Endcap (S.Steel RH)
8Endcap (White RH)
9Knob (Biscuit)
9Knob (Black)
9Knob, Burner (4) (Meteorite Model)
9Knob (White)
10WPW10331686 Whirlpool Oven Spark Module
11Knob (Black)
11Knob (Cashmere Metal)
11Knob (Biscuit)
11Knob (White)
12Insert, Membrane
13Screw
143196172 Whirlpool Oven Screw
