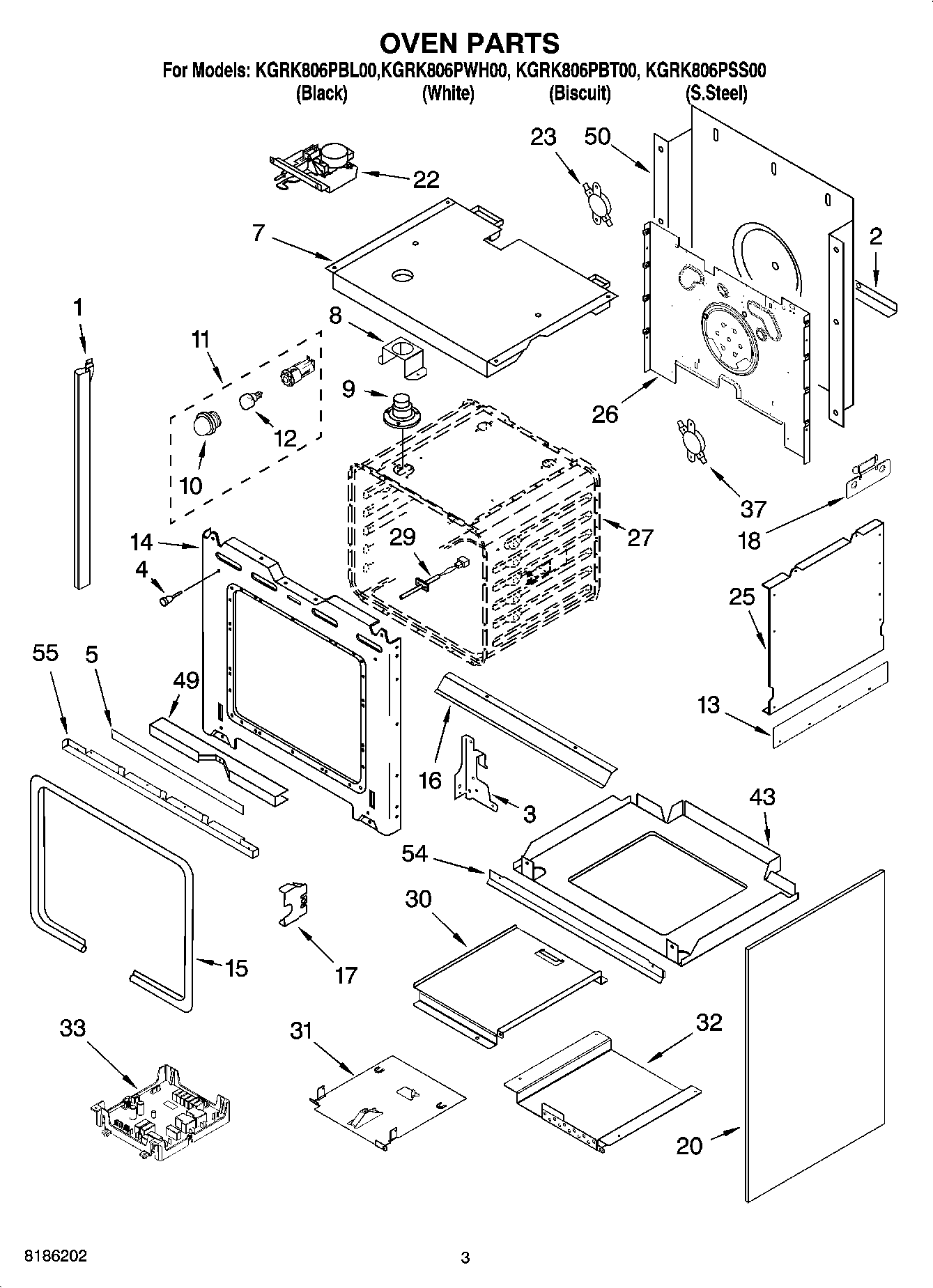

KGRK806PBT00 02 – OVEN PARTS

KGRK806PBT00 02 – OVEN PARTS

Written by

in

KGRK806PBT00 02 – OVEN PARTS

Products

PositionProduct
1Trim, Side (Left Hand) (Biscuit)
1Trim, Side (Right Hand) (S.Steel)
1Trim, Side (Right Hand) (White)
1Trim, Side (Left Hand) (Black)
1Trim, Side (Right Hand) (Black)
1Trim, Side (Left Hand) (S.Steel)
1Trim, Side (Left Hand) (White)
1WP3400832 Whirlpool Screw
1Trim, Side (Right Hand) (Biscuit)
2Brace, Main Back
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Insulation, Bottom Vent
7Top, Chassis
8Bracket, Vent Sprt
9Tube, Vent
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Shield, Heat
13WP4449743 Whirlpool Screw
14Frame, Front
14Screw
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
16Deflector, Vent Bottom
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
20Body, Side (Biscuit)
20Body, Side (Black)
20Body, Side (White)
22WP9760889 Whirlpool Door Latch
23WP9757807 Whirlpool High Limit Thermostat
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30Bracket, GOC
31Slide, GOC
32W10083460 Whirlpool Slide Assembly
33Screw (4)
33Central, Appliance
37WP8300802 Whirlpool Thermostat
43Base, Chassis
43Gasket
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
54Vent, Bottom Upper (Black)
54Vent, Bottom Upper (S. Steel)
54Ve
54Vent, Bottom Upper (Biscuit)
55WPL 9756470
55WPL ARI87986A4
55WPL 9756485WH
55WPL 9756817
55WPL 9756485SS
55WPL 9756485BT
55WPL 9756485BL
