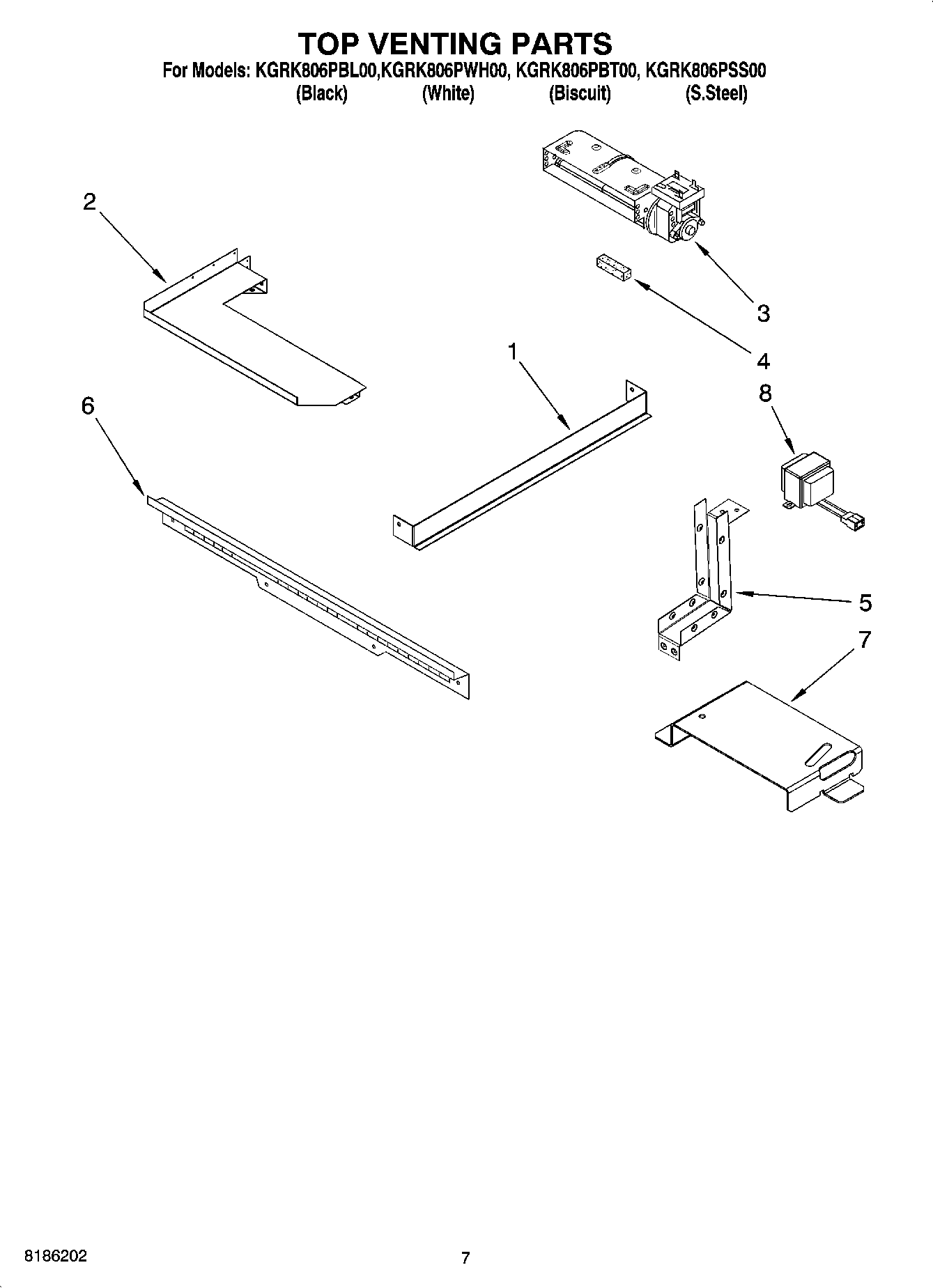

KGRK806PBT00 04 – TOP VENTING PARTS

Products

Position	Product
1	Front, Air Duct
1	Screw
2	Top, Air Duct (L.Hand)
2	Top, Air Duct (R.Hand)
3	W10810687 Whirlpool Blower Assembly
3	WP4455352 Whirlpool Mounting Bracket
4	W10491987 Whirlpool Foam Seal
5	Corner, Air Duct (L.Hand)
5	Corner, Air Duct (R.Hand)
6	Vent, (Control Panel)
6	WP4450038 Whirlpool Screw
7	WP9757829 Whirlpool Mounting Bracket
7	WP4449809 Whirlpool Screw
8	Transformer
8	Screw (4)
