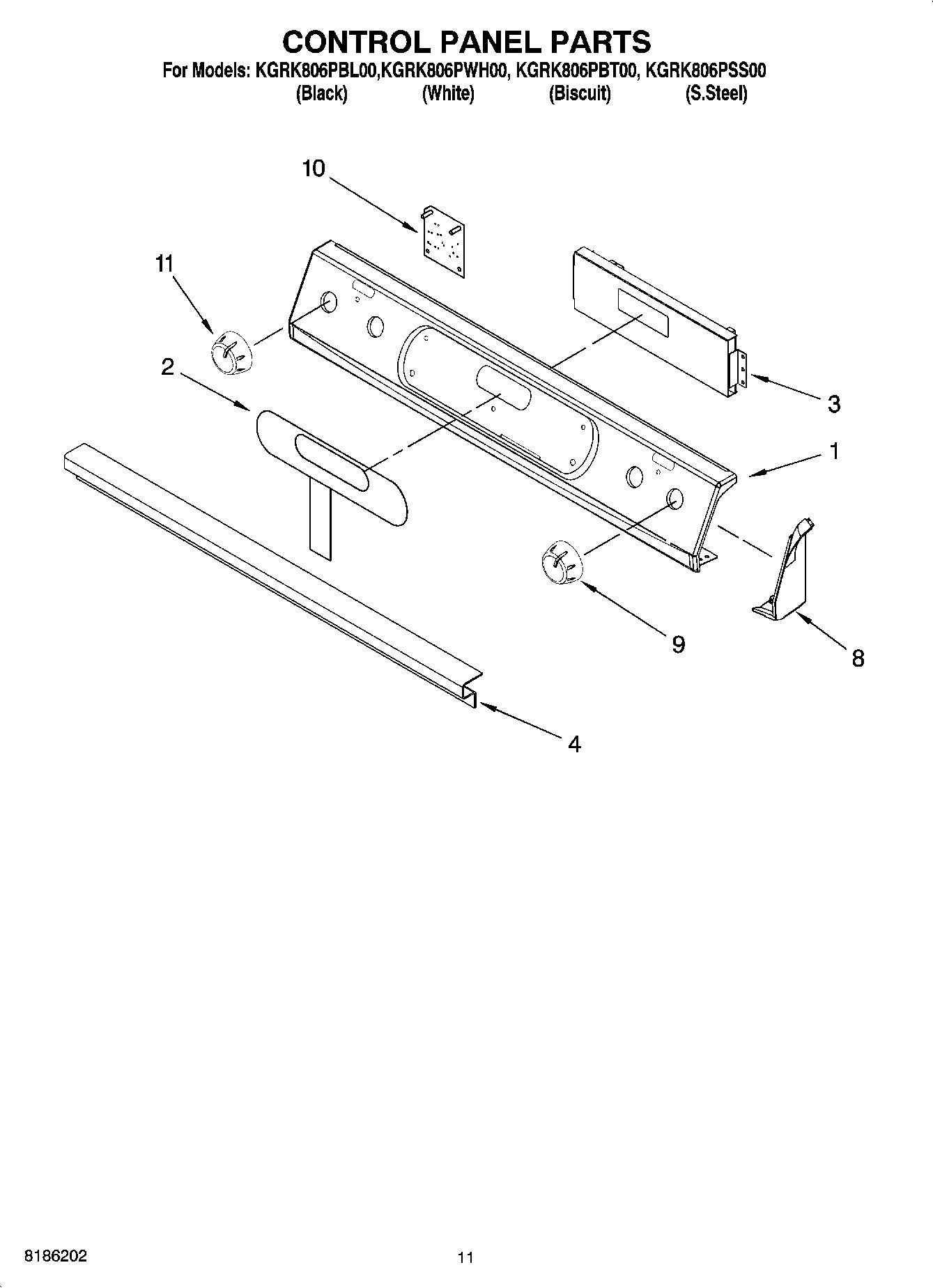

KGRK806PBT00 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

KGRK806PBT00 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

Written by

in

KGRK806PBT00 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL 9756920
9756921 Whirlpool Oven Wire Harness
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
261900 Whirlpool Microwave Spray
W10851603 Whirlpool Orifice
WPL ARI87990A3
WPL ARI87989A6
WPL ARI87988A9
WPL ARI87987A2
WPL 9756919
Bakeware, 5 pc
Filler, Counter Top (White)
Filler, Counter Top (Biscuit)
Filler, Counter Top (Black)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
350930 Whirlpool White Spray Paint
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
WP482338 Whirlpool Refrigerator Adhesive
Spacer, Harness
242831 Whirlpool Oven Wire
Clip, Ground Wire
WP4448950 Whirlpool Screw
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
WP261869 Whirlpool Microwave Paint
Harness, Wire
1Control Panel (Biscuit)
1Control Panel (Black)
1Control Panel (S.Steel)
1Control Panel (White)
2Membrane Switch (White)
2Membrane Switch (Black)
2WP9756559ES Whirlpool Membrane Switch
2WP9756559BT Whirlpool Membrane Switch
2WP3400832 Whirlpool Screw
3Control, Migration
3Screw
4Screw (4)
4Bracket, Console
8Endcap (Biscuit LH)
8Endcap (Black LH)
8Endcap (White LH)
8Endcap (Black RH)
8Endcap (Biscuit RH)
8Endcap (S.Steel RH)
8Endcap (White RH)
83196172 Whirlpool Oven Screw
8Endcap (S.Steel LH)
9Knob (White)
9Knob (Biscuit)
9Knob (Black)
9Knob, Burner (4) (Meteorite Model)
10WPW10331686 Whirlpool Oven Spark Module
11Knob (Black)
11Knob (Biscuit)
11Knob (Cashmere Metal)
11Knob (White)
