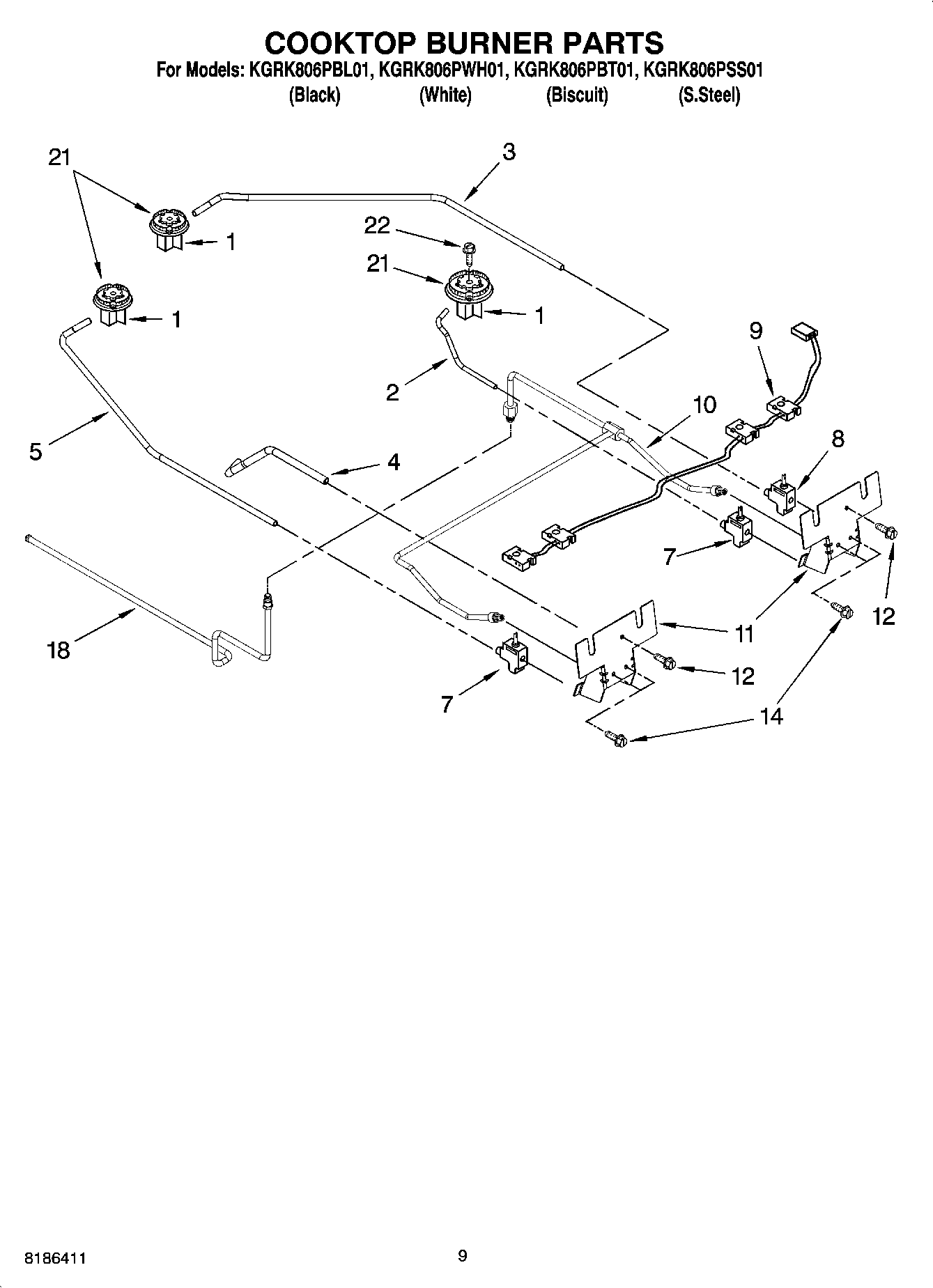

KGRK806PBT01 06 – COOKTOP BURNER PARTS

Products

Position	Product
1	WPW10244714 Whirlpool Orifice Holder
1	Burner Base w/Orifice (Small (2))
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
7	WP4456816 Whirlpool Burner Valve
8	WP4456817 Whirlpool Burner Valve
9	WP9756824 Whirlpool Wire Harness
10	Tube, Manifold
11	Manifold (Cooktop)
11	Manifold (TCB)
12	WP3196557 Whirlpool Screw
14	WP3186217 Whirlpool Screw
18	4453754 Whirlpool Oven Burner Tube
21	WP4455981 Whirlpool Burner Head
21	Head, Burner (Small)
22	WP3368921 Whirlpool Screw
