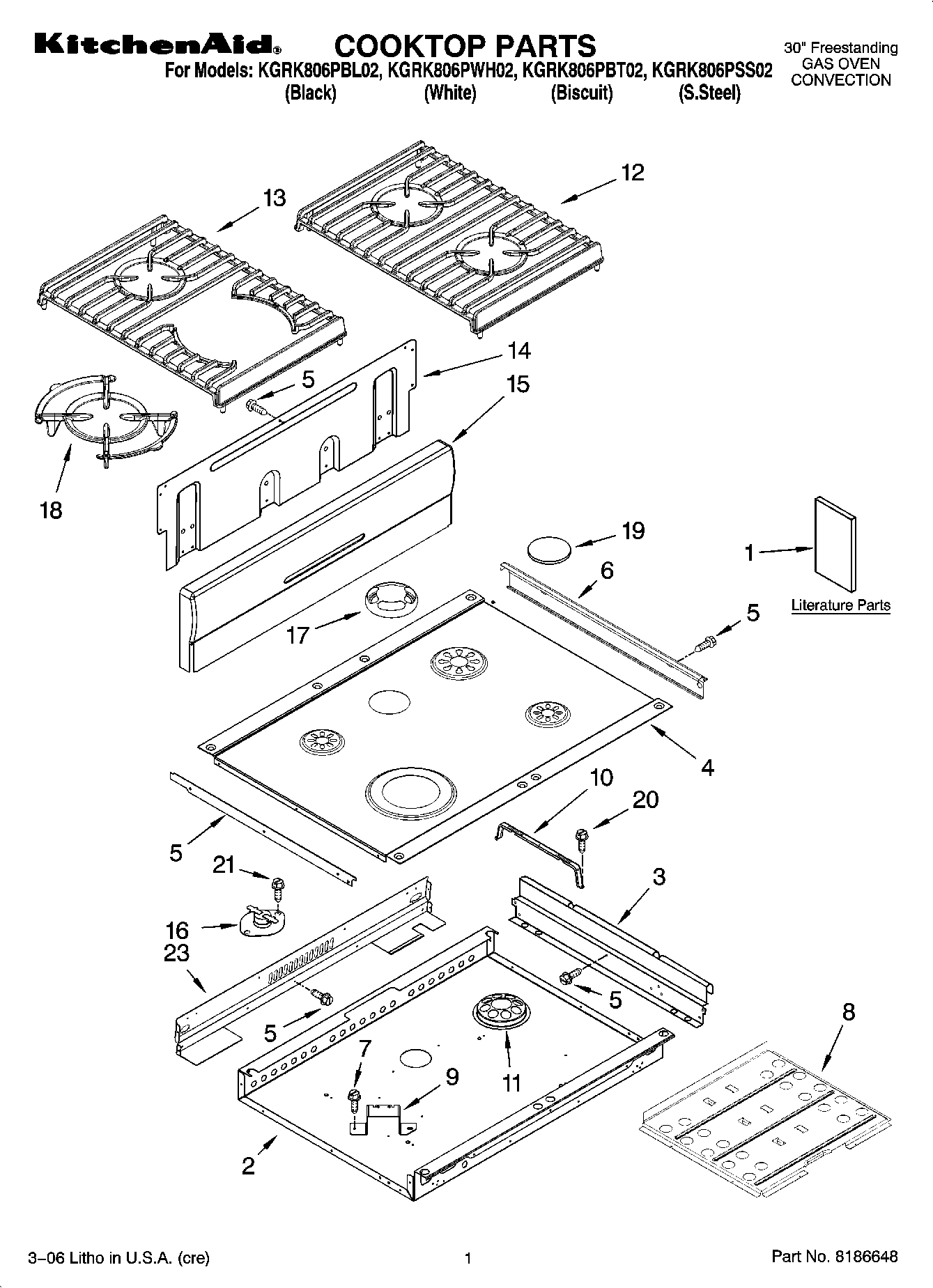

KGRK806PBT02 01 – COOKTOP PARTS

KGRK806PBT02 01 – COOKTOP PARTS

Written by

in

KGRK806PBT02 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Anti-Tip Instruct.
1Installation Instructions
1Tech Sheet
1Use & Care Guide
2Burner Box
3Bracket, Mounting
4Cooktop (Black)
4Cooktop (Biscuit)
4Cooktop (White)
5WP3196557 Whirlpool Screw
6Trim-CkTop, SI (Biscuit LH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Biscuit RH)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Black LH)
7WP12990527 Whirlpool Microwave Screw
8Shield, Heat
9Bracket, Burner
10WP9756821 Whirlpool Support
11Dome Cap, Vent
12Grate, Burner (Black)
12Grate, Burner (Coal Black)
12Grate, Burner (Mouse Grey)
12Grate, Burner (Moleskin)
13Grate, Brnr (TCB) (Coal Black)
13Grate, Brnr (TCB) (Mouse Grey)
13Grate, Brnr (TCB) (Moleskin)
13Grate, Brnr (TCB) (Black)
14Cover, Backsplash Rear
15Backsplash (White)
15Backsplash (Biscuit)
15Backsplash (Black)
15Backsplash (S.Steel Gasket)
15Backsplash (Gray)
15Backsplash (Black)
16WP9759944 Whirlpool Thermostat
17Vent, Center (Black)
17Vent, Center (Biscuit)
17Vent, Center (White)
18Grate
18WPL 9760222MS
18WPL 9760222MG
18WPL 9760222CB
19WP3191898 Whirlpool Surface Burner Cap Black
19WP3191904 Whirlpool Burner Cap
19WP3191905 Whirlpool Burner Cap
19Cap, Burner 6K (1) (Gray)
19WP8284669 Whirlpool Burner Cap
19WPL 3191904MS
19WPL 3191898MS
19WP4456536 Whirlpool Burner Cap
20WP4449809 Whirlpool Screw
21W10491985 Whirlpool Screw
23WPL 9759627
