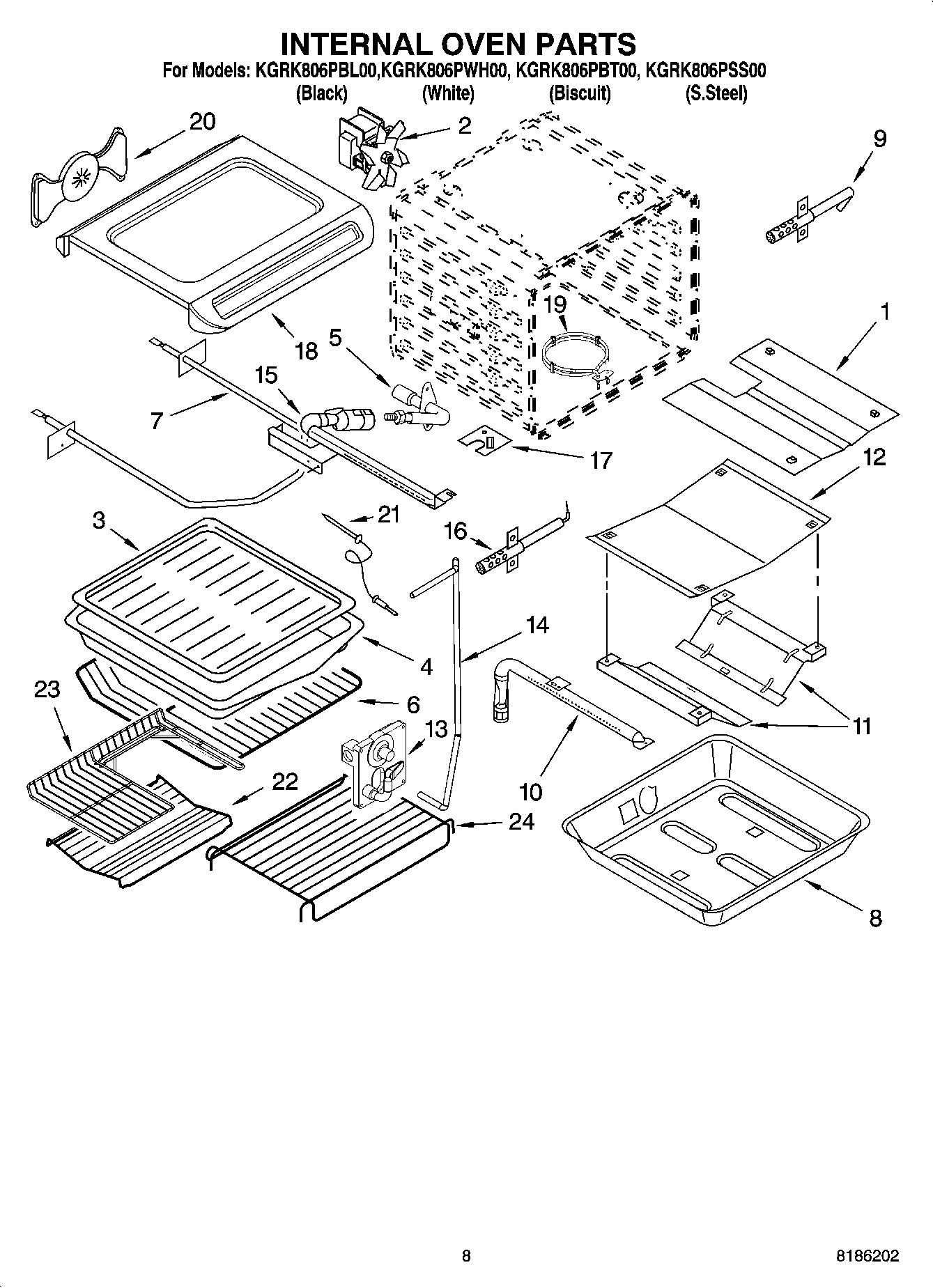

KGRK806PSS00 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1Shield, Flame
2Motor Convection
3WP3195996 Whirlpool Pan Grid
4W10737569 Whirlpool Broil Pan
59757779 Whirlpool Oven Fitting
6WPW10179152 Whirlpool Rack Oven
7Element, Broil
8WPW10145744 Whirlpool Support
108191123 Whirlpool Oven Burner Assembly with Igniter
11Shield, Oven (2)
12Shield, Bake Flame
13Screw
13WP9763716 Whirlpool Gas Valve
14Tube, Broil
15Burner, Broil
16WP8054129 Whirlpool Oven Igniter
16W11684507 Whirlpool Screw
17Cover, Ignitor
17SCREW
18WPW10272546 Whirlpool Broiler Pan
199760777 Whirlpool Oven Element
20WP4449154 Whirlpool Screw
20Cover, Fan
218186589 Whirlpool Jack Probe
22Rack, Roasting
23Rack, Half
24WP8274022 Whirlpool Oven Rack
