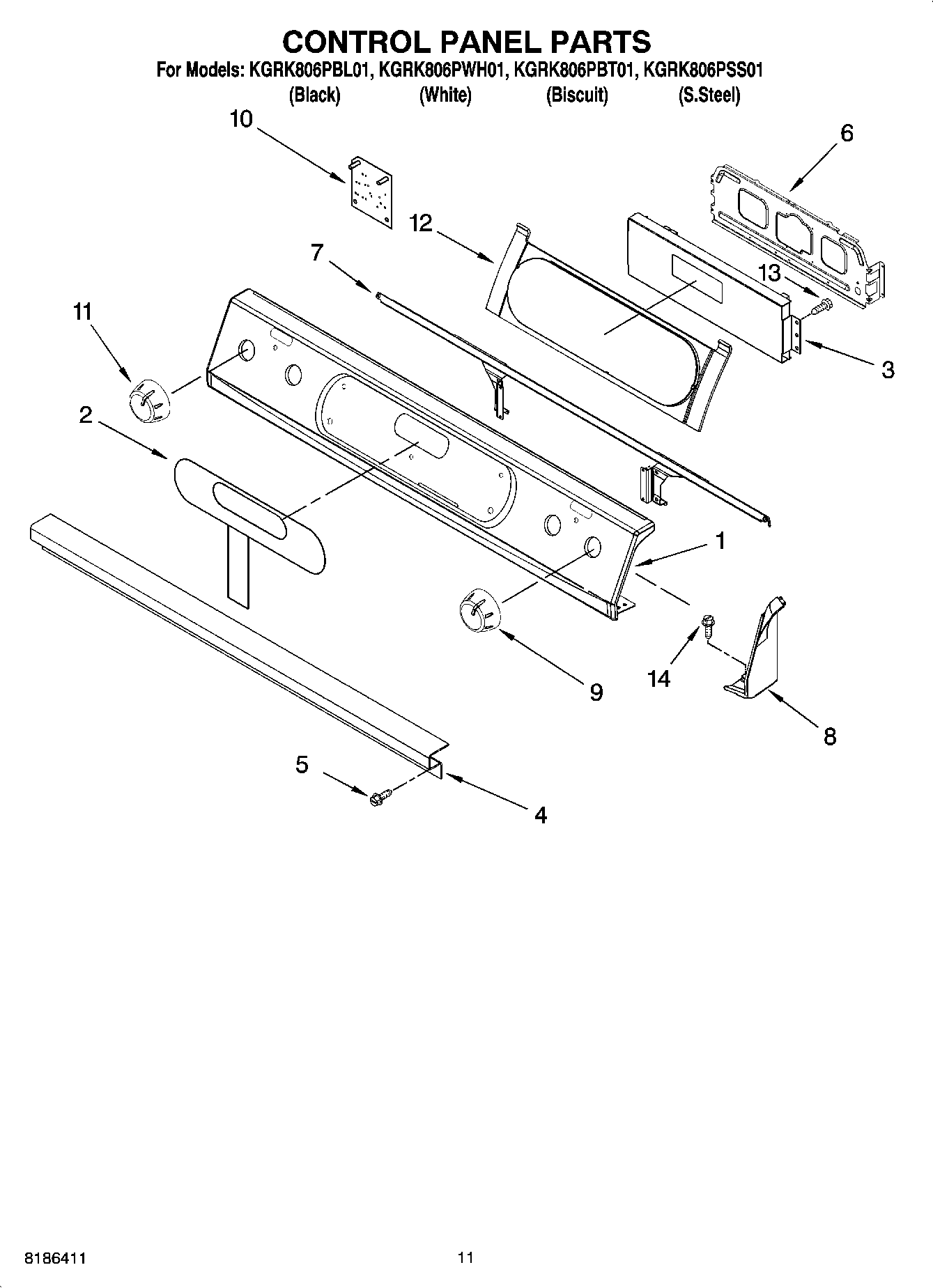

KGRK806PSS01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

KGRK806PSS01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

Written by

in

KGRK806PSS01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI88017A2
W10624584 Whirlpool Power Cord
261900 Whirlpool Microwave Spray
W10851603 Whirlpool Orifice
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
9756921 Whirlpool Oven Wire Harness
9757426 Whirlpool Oven LP Conversion Kit
Gasket 19 x 388
WPL ARI88016A4
WPL ARI88015A4
WPL ARI88014A9
WPL 9760526
WPL 9756920
Bakeware, 5 pc
Filler, Counter Top (White)
Filler, Counter Top (Biscuit)
Filler, Counter Top (Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WP4448950 Whirlpool Screw
W11447673 Whirlpool Range Tip Anchor
WP3400015 Whirlpool Screw
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Black 14 Ga.)
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
4448664 Whirlpool Oven Mounting Bracket
350930 Whirlpool White Spray Paint
Spacer, Harness
72017 Whirlpool Appliance Touch-Up Paint White
Harness, Wire
WP4449809 Whirlpool Screw
242831 Whirlpool Oven Wire
WP261869 Whirlpool Microwave Paint
WP112432 Whirlpool Nut Assembly
Wire (14 Ga. 150 c Blue)
Clip, Ground Wire
1Control Panel (Black)
1Control Panel (White)
1Control Panel (Biscuit)
1Control Panel (S.Steel)
2Membrane Switch (White)
2WP9756559BT Whirlpool Membrane Switch
2WP9756559ES Whirlpool Membrane Switch
2Membrane Switch (Black)
3Control, Migration
4Bracket, Console
5WP3196557 Whirlpool Screw
6Support, Gas Valve
7Bracket, User Interface
8Endcap (S.Steel RH)
8Endcap (Biscuit LH)
8Endcap (S.Steel LH)
8Endcap (White LH)
8Endcap (Black RH)
8Endcap (Biscuit RH)
8Endcap (White RH)
8Endcap (Black LH)
9Knob (White)
9Knob (Biscuit)
9Knob (Black)
9Knob, Burner (4) (Meteorite Model)
10WPW10331686 Whirlpool Oven Spark Module
11Knob (Cashmere Metal)
11Knob (Biscuit)
11Knob (White)
11Knob (Black)
12Insert, Membrane
13Screw
143196172 Whirlpool Oven Screw
