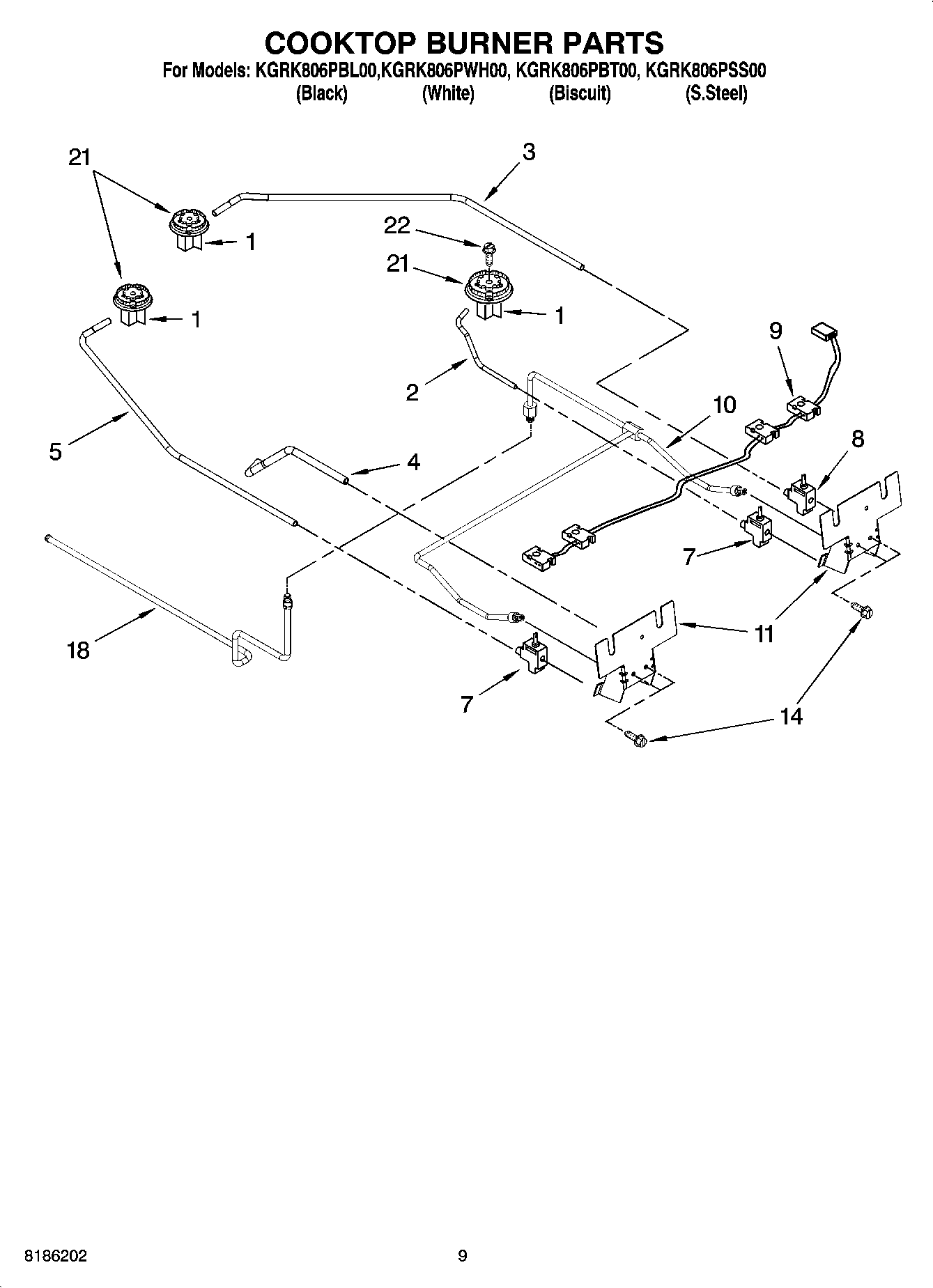

KGRK806PWH00 06 – COOKTOP BURNER PARTS

Products

PositionProduct
1Burner Base w/Orifice (Small (2))
1WPW10244714 Whirlpool Orifice Holder
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
7WP4456816 Whirlpool Burner Valve
8WP4456817 Whirlpool Burner Valve
9WP9756824 Whirlpool Wire Harness
10Tube, Manifold
11Manifold
11Screw (4)
14WP3186217 Whirlpool Screw
184453754 Whirlpool Oven Burner Tube
21Burner Head (Turbi)
21Head, Burner (Small)
21WP4455981 Whirlpool Burner Head
22WP3368921 Whirlpool Screw
