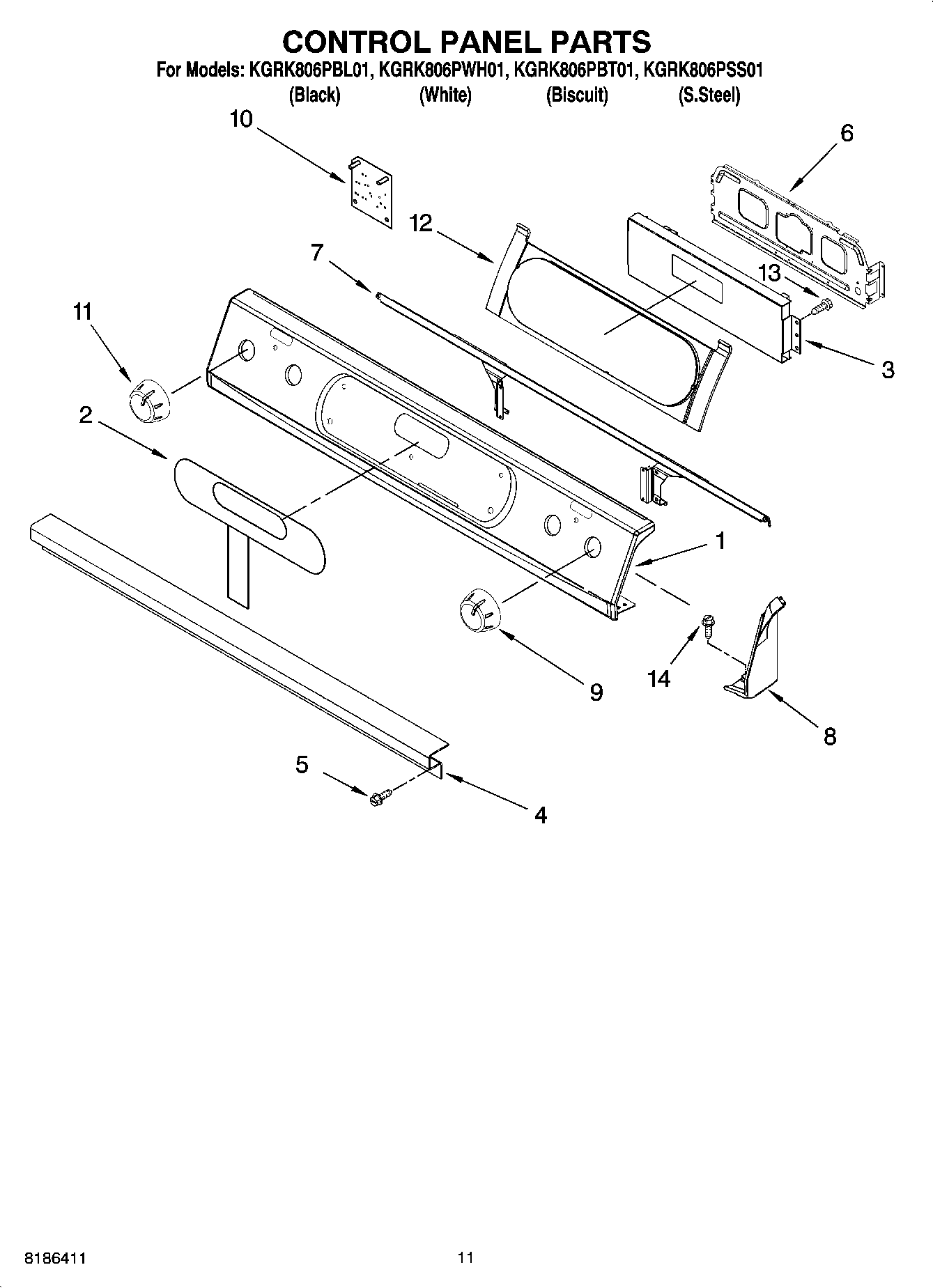

KGRK806PWH01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

KGRK806PWH01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

Written by

in

KGRK806PWH01 08 – CONTROL PANEL PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI88037A7
	W10624584 Whirlpool Power Cord
	261900 Whirlpool Microwave Spray
	W10851603 Whirlpool Orifice
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	9756921 Whirlpool Oven Wire Harness
	9757426 Whirlpool Oven LP Conversion Kit
	Gasket 19 x 388
	WPL ARI88036A5
	WPL ARI88035A8
	WPL ARI88038A8
	WPL 9760526
	WPL 9756920
	Bakeware, 5 pc
	Filler, Counter Top (White)
	Filler, Counter Top (Biscuit)
	Filler, Counter Top (Black)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	W11447673 Whirlpool Range Tip Anchor
	WP112432 Whirlpool Nut Assembly
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	WP4448950 Whirlpool Screw
	4450800 Whirlpool Oven Screw
	Clip, Ground Wire
	Spacer, Harness
	350930 Whirlpool White Spray Paint
	Harness, Wire
	242831 Whirlpool Oven Wire
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 150 c Blue)
1	Control Panel (S.Steel)
1	Control Panel (White)
1	Control Panel (Black)
1	Control Panel (Biscuit)
2	WP9756559BT Whirlpool Membrane Switch
2	Membrane Switch (White)
2	Membrane Switch (Black)
2	WP9756559ES Whirlpool Membrane Switch
3	Control, Migration
4	Bracket, Console
5	WP3196557 Whirlpool Screw
6	Support, Gas Valve
7	Bracket, User Interface
8	Endcap (S.Steel LH)
8	Endcap (White LH)
8	Endcap (Biscuit LH)
8	Endcap (Biscuit RH)
8	Endcap (White RH)
8	Endcap (Black LH)
8	Endcap (S.Steel RH)
8	Endcap (Black RH)
9	Knob, Burner (4) (Meteorite Model)
9	Knob (White)
9	Knob (Black)
9	Knob (Biscuit)
10	WPW10331686 Whirlpool Oven Spark Module
11	Knob (White)
11	Knob (Cashmere Metal)
11	Knob (Biscuit)
11	Knob (Black)
12	Insert, Membrane
13	Screw
14	3196172 Whirlpool Oven Screw
