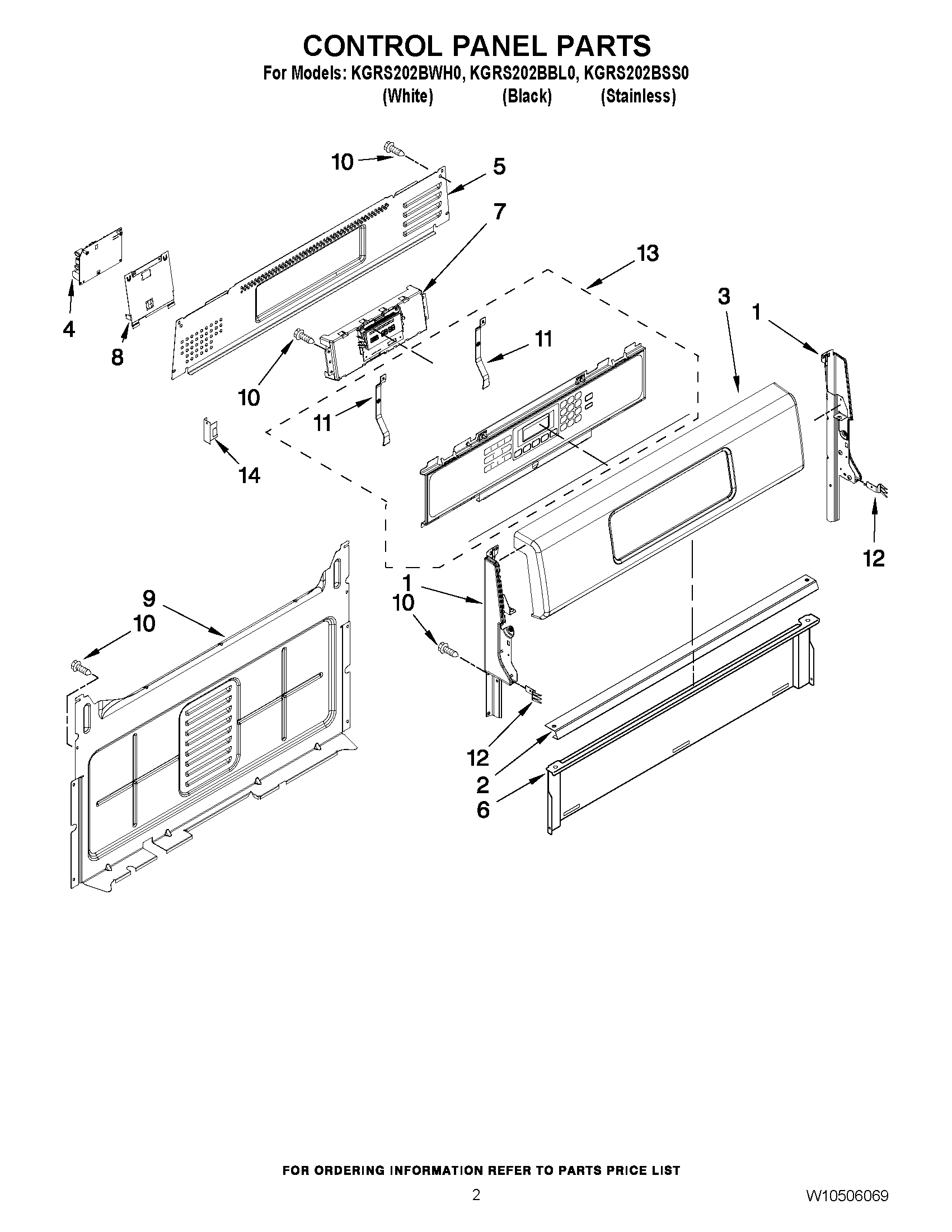

KGRS202BBL0 02 – CONTROL PANEL PARTS

KGRS202BBL0 02 – CONTROL PANEL PARTS

Written by

in

KGRS202BBL0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
2Brkt-Mntg, Console
3CONSOLE (BLACK)
3CONSOLE (STAINLESS)
3CONSOLE (WHITE)
4WPW10331686 Whirlpool Oven Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7WPW10340699 Whirlpool Electronic Control Board
8BRACKET, DSI
9W10184251 Whirlpool Rear Cover
10SCREW
11BRACKET, CONTROL
128523412 Whirlpool Mounting Bracket
13W10324433 Whirlpool Membrane Switch
14MODULE, SPARK
