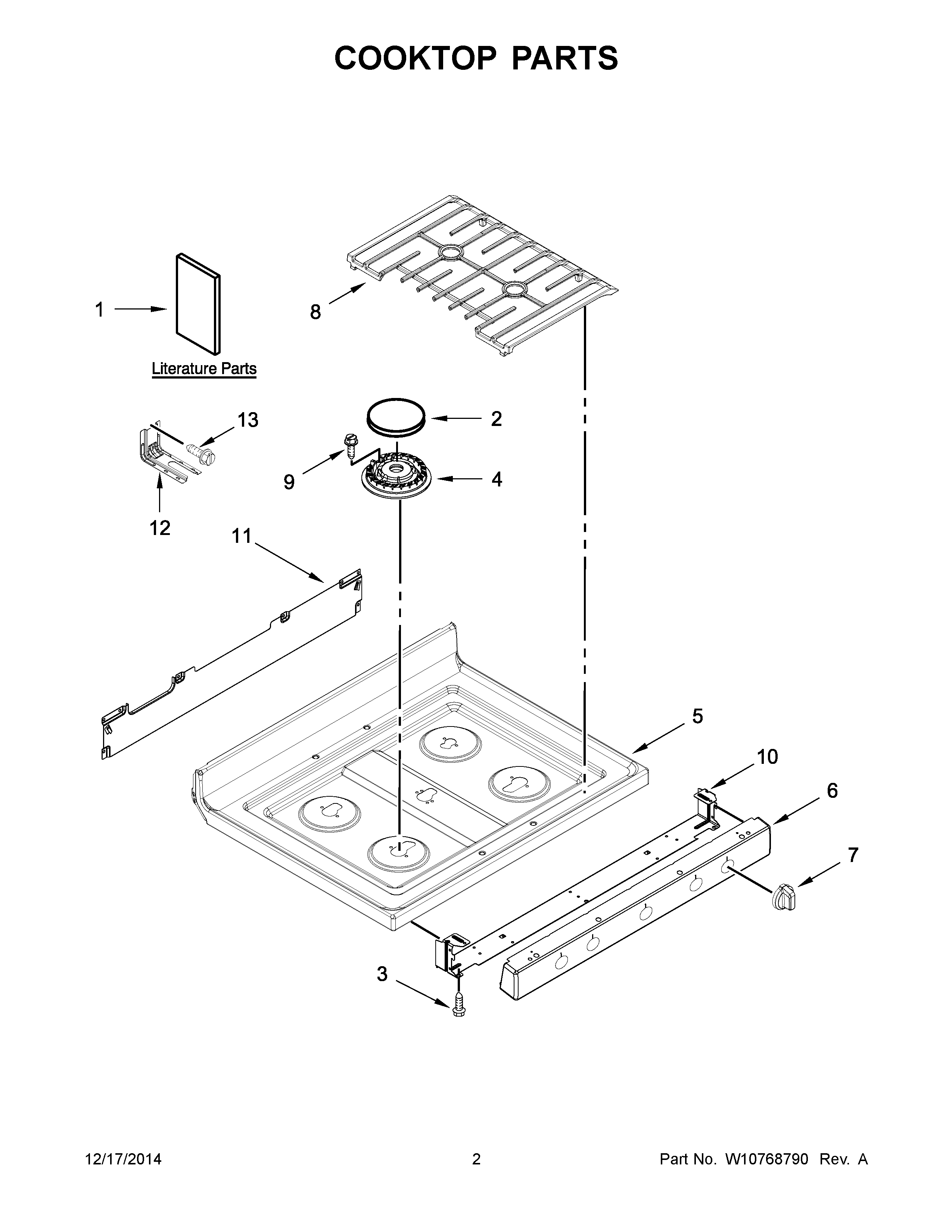

KGRS202BSS2 02 – COOKTOP PARTS

Products

Position	Product
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	W10519934 Whirlpool Wire Harness
NI	WPW10701462 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	W10519920 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
1	WPL W10553363
1G	QUICK START GUIDE (FRENCH)
1C	SHEET, TECH (FRENCH)
1B	TECH SHEET (ENGLISH)
1A	USER INSTRUCTIONS
1D	SAFER COOKING TIPS (ENGLISH
1F	GUIDE, QUICK START
1E	Safer Cooking Tips (French)
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4B	WPW10515453 Whirlpool Burner Head
4A	WPW10515454 Whirlpool Burner Head
4	WPW10515455 Whirlpool Burner Head
5	W10457321 Whirlpool Cooktop
6	PANEL, MANIFOLD (STAINLESS)
7	WPW10324398 Whirlpool Knob
8	GRATE, SET (BLACK)
9	WP3368921 Whirlpool Screw
10	W10534174 Whirlpool Support Bracket
11	W10530070 Whirlpool Support Bracket
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
