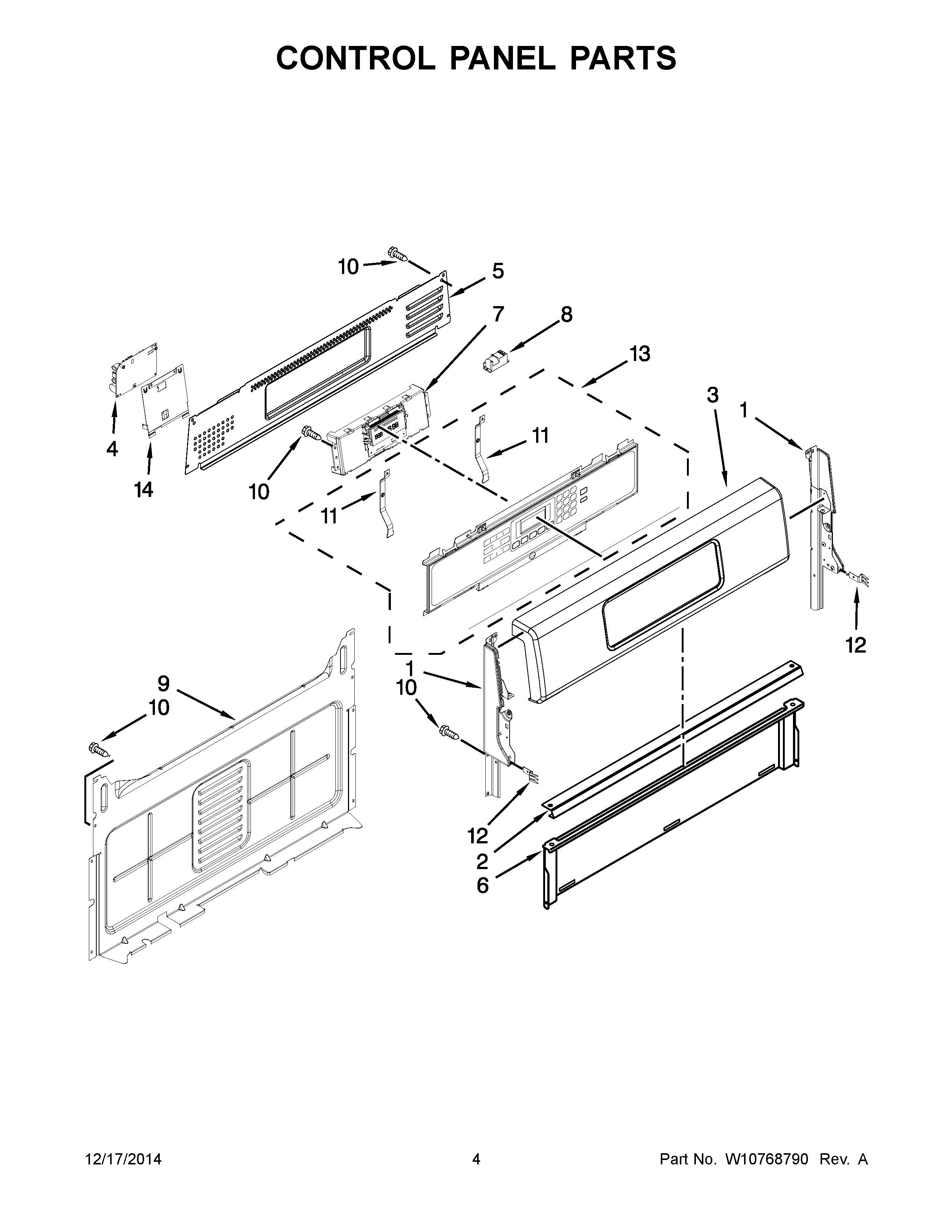

KGRS202BSS2 03 – CONTROL PANEL PARTS

KGRS202BSS2 03 – CONTROL PANEL PARTS

Written by

in

KGRS202BSS2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W10516123 Whirlpool Mounting Bracket
3CONSOLE (STAINLESS)
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7WPW10340699 Whirlpool Electronic Control Board
8WPW10475149 Whirlpool Spark Module
9W10184251 Whirlpool Rear Cover
10SCREW
11BRACKET, CONTROL
128523412 Whirlpool Mounting Bracket
13W10324433 Whirlpool Membrane Switch
14W10516577 Whirlpool Bracket Mounting
