KGRS202BSS2 06 – DOOR PARTS

KGRS202BSS2 06 – DOOR PARTS

Written by

in

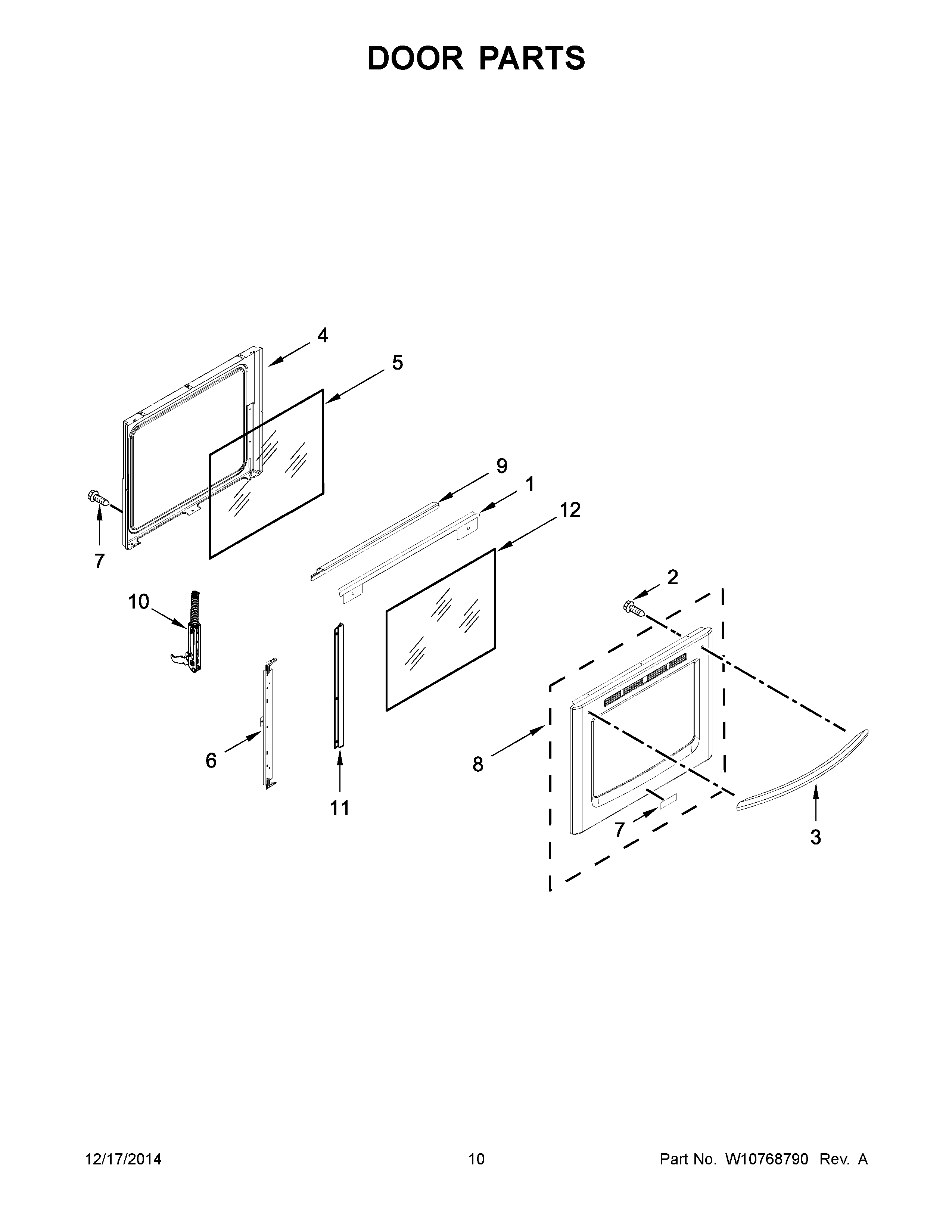

KGRS202BSS2 06 – DOOR PARTS

Products

PositionProduct
1TRIM, VENT (BLACK)
2WPW10317886 Whirlpool Screw
3WPW10289076 Whirlpool Door Handle
4WPW10297318 Whirlpool Door Liner
5WPW10300487 Whirlpool Door Glass
6W11116956 Whirlpool Support Bracket
7WPW10243391 Whirlpool Refrigerator Nameplate
8WPW10490829 Whirlpool Door Liner
9W10294853 Whirlpool Mounting Bracket
10WPW10388635 Whirlpool Door Hinge
11W10294852 Whirlpool Mounting Bracket
12WPW10495964 Whirlpool Door Panel
