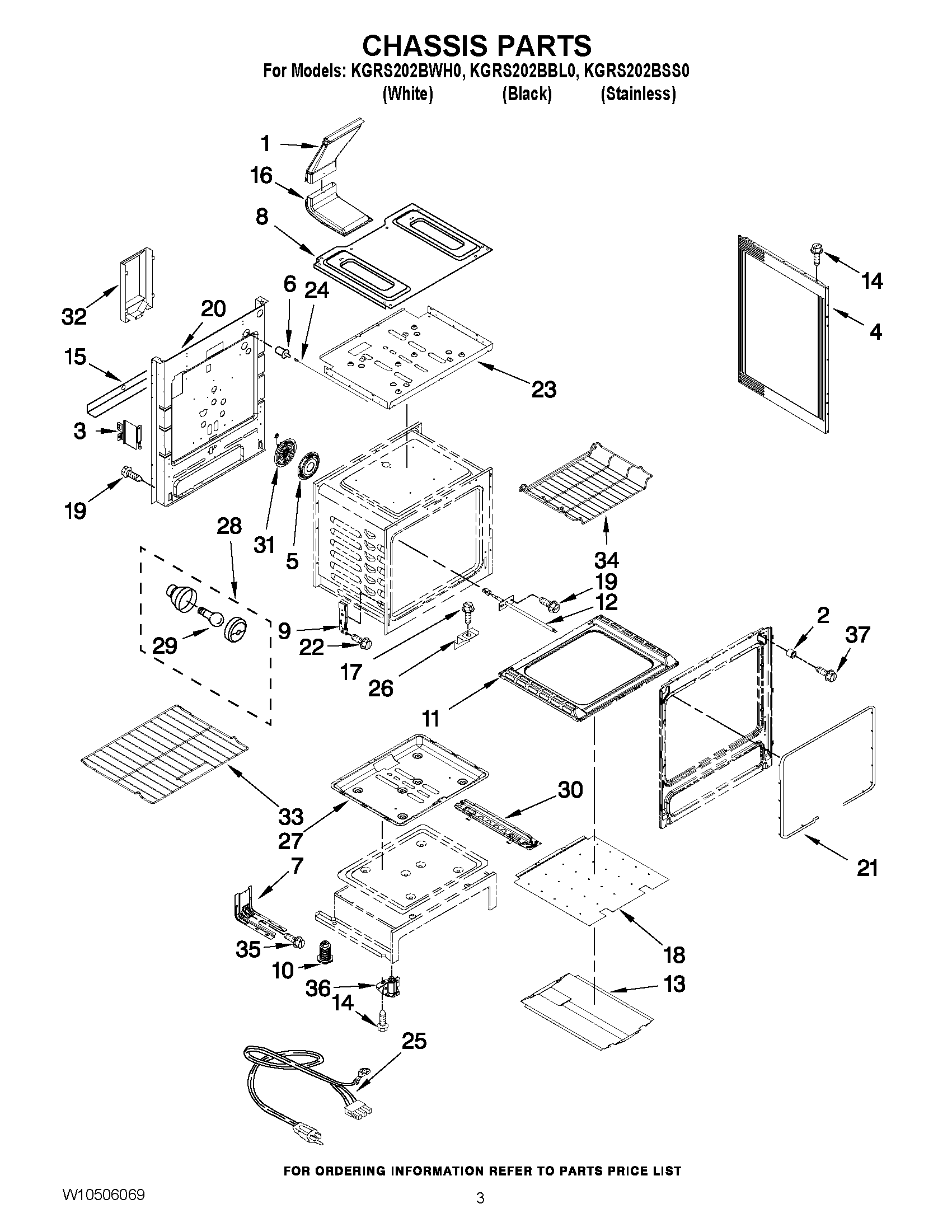

KGRS202BWH0 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, STRAP
NI	W10423113RP Whirlpool Oven AquaLift Cleaning Kit
NI	INSULATION, BACK
1	W10314347 Whirlpool Oven Flue Assembly
2	W10877054 Whirlpool Spacer Assembly
3	W10273002 Whirlpool Support Bracket
4	WPW10575396 Whirlpool Side Panel
4	W11730303 Whirlpool Side Panel
5	WPW10346154 Whirlpool Cover Assembly
6	WP9757262 Whirlpool Light Switch
7	W11447673 Whirlpool Range Tip Anchor
8	W11379351 Whirlpool Burner Box
9	W10647259 Whirlpool Hinge Receiver
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WPW10211368 Whirlpool Oven Bottom
12	WPW10181986 Whirlpool Oven Sensor
13	BAFFLE, BAKE BURNER
15	W10435470 Whirlpool Brace
16	W11243157 Whirlpool Oven Flue
18	W10323077 Whirlpool Burner Baffle
19	SCREW
20	WPL W10273005
21	W11562931 Whirlpool Door Gasket
22	W10777162 Whirlpool Screw
23	WPW10273195 Whirlpool Heat Shield
24	W11370463 Whirlpool Door Rod Assembly
25	WP9757891 Whirlpool Power Cord
26	W10035900 Whirlpool Support Bracket
27	W11379356 Whirlpool Hidden Pan Assembly
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WPW10306546 Whirlpool Base Rail
31	WPW10389555 Whirlpool Convection Fan
32	W10158780 Whirlpool Rear Cover
33	W10460125 Whirlpool Oven Rack
34	WPW10289145 Whirlpool Oven Rack
35	SCREW, ANTI-TIP KIT
36	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
37	WPW10067840 Whirlpool Screw
