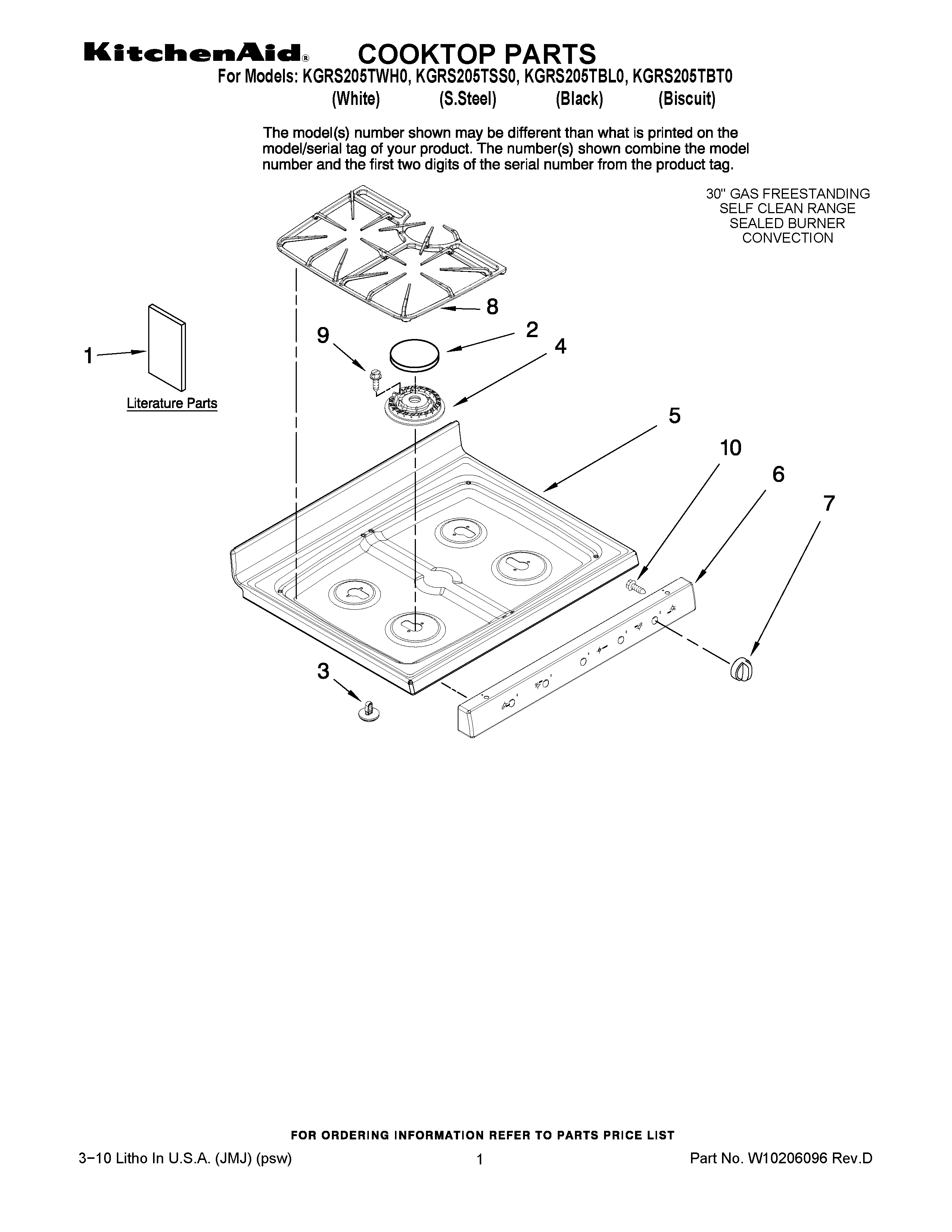

KGRS205TBL0 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	Owners Manual
1	Wiring Diagram
2	Cap, Burner (RR & LR) (Black)
2	WP7504P298-60 Whirlpool Range Burner Cap
2	WP7504P299-60 Whirlpool Burner Cap
2	WP7504P300-60 Whirlpool Burner Cap
2	Cap, Burner (RR & LR) (Gray)
2	Cap, Burner (RF) (Gray)
2	7504P295-60 Whirlpool Burner Cap
2	7504P294-60 Whirlpool Burner Cap
3	74008761 Whirlpool Spacer Snap-In
4	WPW10406878 Whirlpool Burner Base (16K)
4	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
5	Cooktop (White)
5	Cooktop (Black)
5	Cooktop (Biscuit)
6	Panel, Manifold (Black)
6	Panel, Manifold (White)
6	Panel, Manifold (Biscuit)
7	Knob, Control (5) (Biscuit)
7	WPW10160375 Whirlpool Oven Control Knob
7	WPW10160374 Whirlpool Knob
7	WPW10160372 Whirlpool Knob
8	Grate, Burner (2) (Black)
8	Grate, Burner (2) (Gray)
9	Screw (8)
10	SCREW
