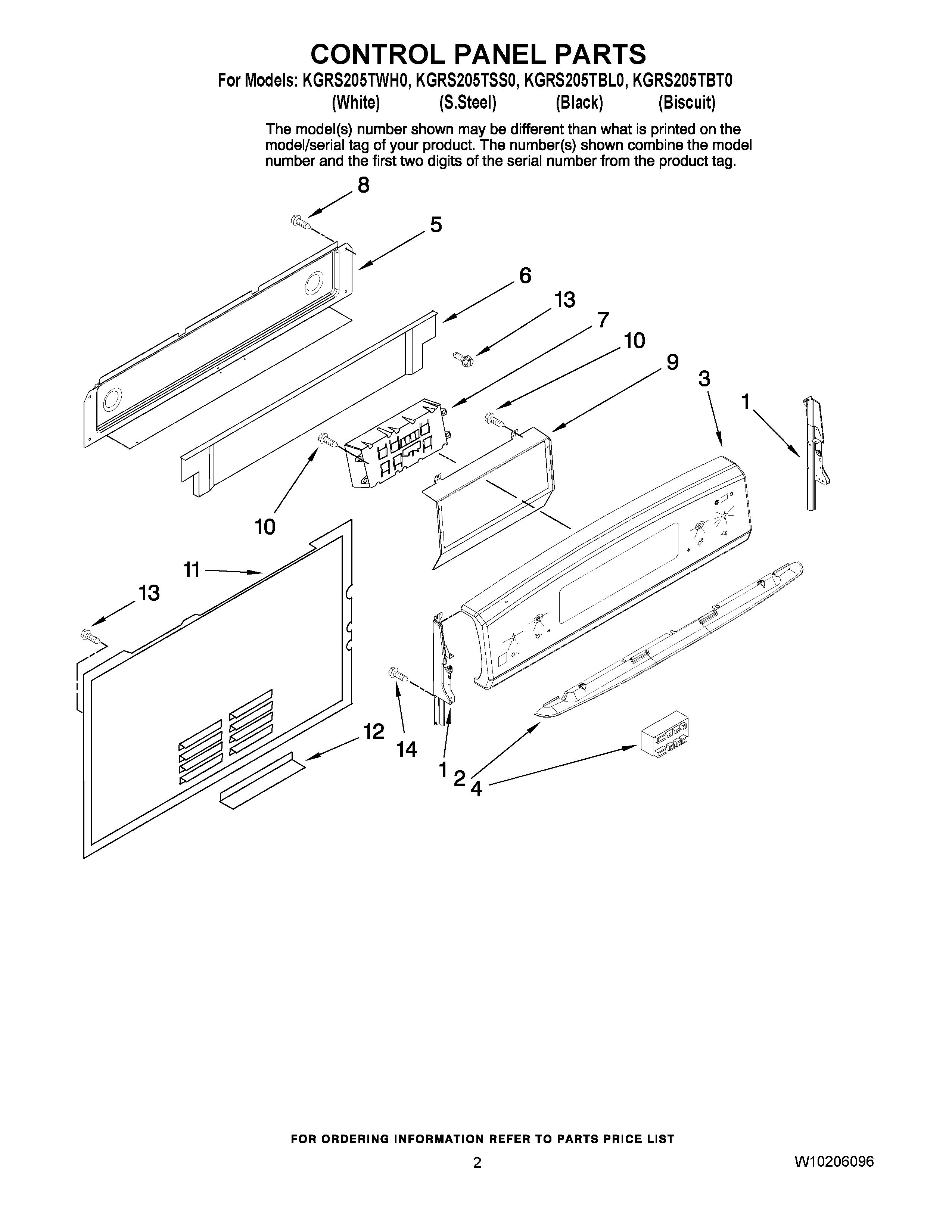

KGRS205TBL0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (RIGHT))
1ENDCAP, LEFT HAND (BISCUIT)
1ENDCAP, RIGHT HAND (BISCUIT)
1ENDCAP (BLACK (RIGHT))
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
2Heat Shield, Visor (White)
2Heat Shield, Visor (Black)
2Heat Shield,Visor (Biscuit)
3WPW10160634 Whirlpool Membrane Switch
3PANEL, BACKGUARD & SWITCH ASSY (BISCUIT)
474009098 Whirlpool Spark Module
5Cover, Rear Wire
6Shield, Vent
7Control
8WP90767 Whirlpool Screw
9Bracket, Control
10WP74003976 Whirlpool Screw
11Cover, Main Wire
12Bottom, Wire Cover
13WP7101P434-60 Whirlpool Screw
14SCREW
