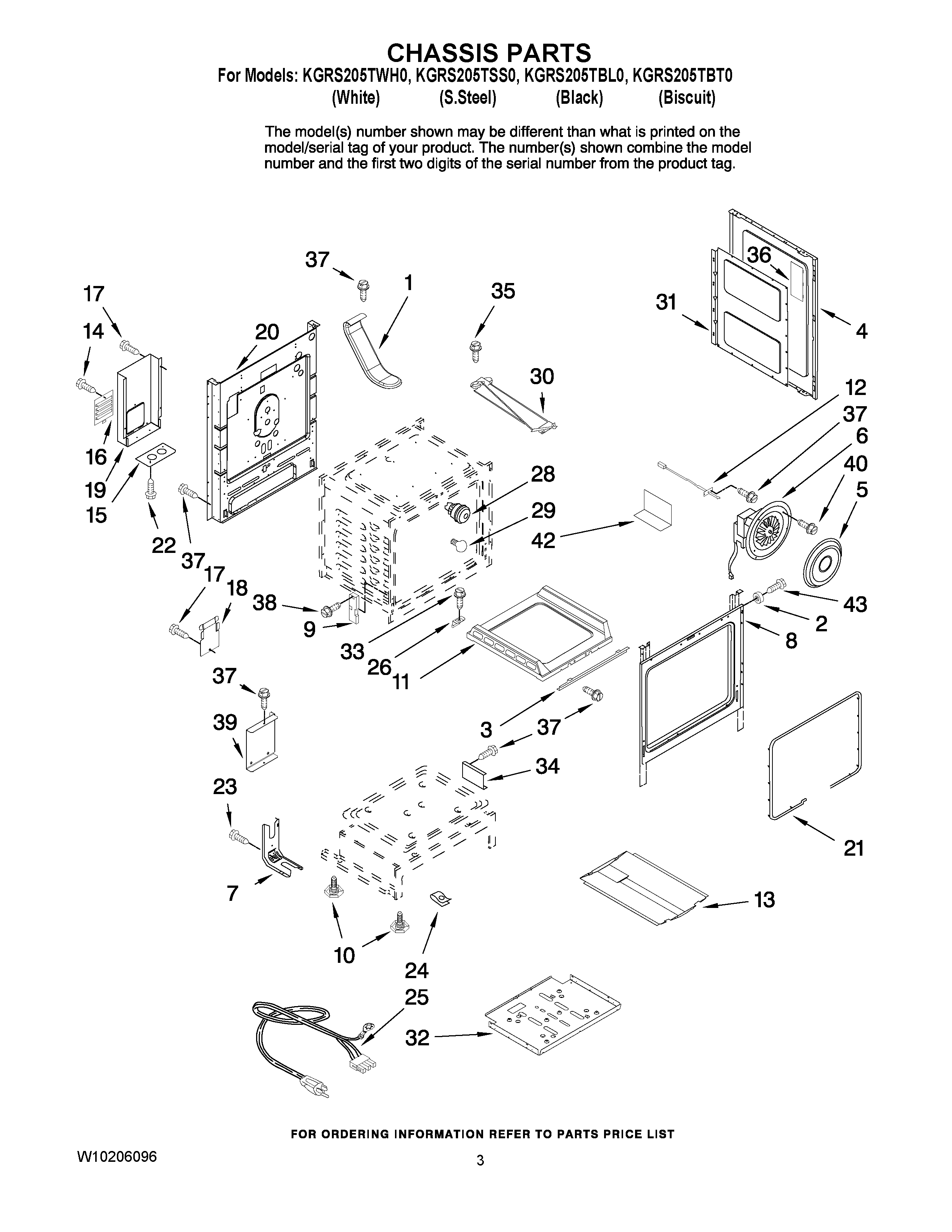

KGRS205TBL0 03 – CHASSIS PARTS

KGRS205TBL0 03 – CHASSIS PARTS

Written by

in

KGRS205TBL0 03 – CHASSIS PARTS

Products

PositionProduct
NIInsulation, Back
NIInsulation, Wrap
1Vent, Oven
274008690 Whirlpool Oven Spacer
3Support, Oven
4Panel, Side (Black)
4PANEL, SIDE (2) (BISCUIT)
4Panel, Side (White)
5PLATE, CONVECT
6Fan, Convect
7WP3801F656-51 Whirlpool Range Anti-Tip Bracket
8CABINET (NOT A SERVICEABLE PART)
9WP74010551 Whirlpool Receiver
10W11665456 Whirlpool Range Level Foot
11WPW10211368 Whirlpool Oven Bottom
1212001655 Whirlpool Oven Sensor
13Baffle, Burner
14SCREW
15Plate, Conduit
16Panel, Access
17WP7101P434-60 Whirlpool Screw
18Cover, Broil
19Cover, Lower Wire
20Back, Main
21W11562931 Whirlpool Door Gasket
22SCREW, HINGE
23Screw
2474008835 Whirlpool Clip Retainer
25Cord, Power
26Bracket, Oven Bottom
28WP74011278 Whirlpool Light
29BULB, LIGHT
30Latch Assembly
31Retainer, Insulation
32Shield, Heat
33WP74003976 Whirlpool Screw
34Bracket, Oven
3574003975 Whirlpool Screw P1 (8ABX3/8-BLK)
36Insulation
37SCREW
38SCREW
39BRACKET, OVEN
40SCREW
42Insulator, Shield
43Screw
