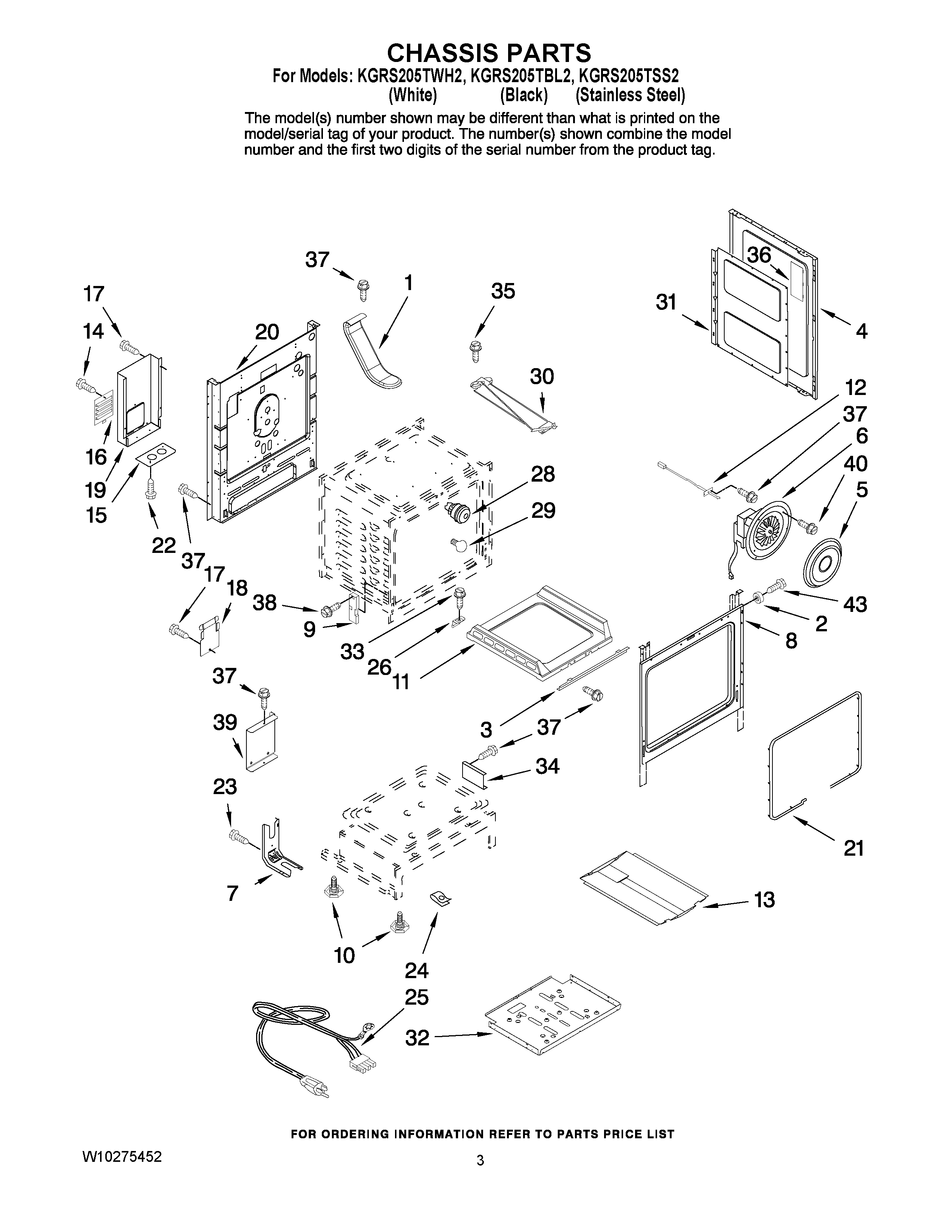

KGRS205TBL2 03 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Back
NI	INSULATION, WRAP
1	VENT, OVEN
2	Spacer, Side Pnl.
3	Support, Oven
4	Panel, Side (White)
4	Panel, Side (Black)
5	PLATE, CONVECTION
6	FAN, CONVECT
7	BRACKET, ANTI TIP
8	CABINET (NOT A SERVICEABLE PART)
9	Receiver, Hinge
10	FOOT, LEVELER
11	BOTTOM, OVEN
12	SENSOR, OVEN
13	BAFFLE, BURNER
14	SCREW
15	Plate, Conduit
16	Plate, Conduit
18	COVER, BROIL
19	Cover, Wire (LWR)
20	Back, Main
21	W11562931 Whirlpool Door Gasket
22	SCREW, HINGE
23	W10491985 Whirlpool Screw
24	CLIP (4)
25	CORD, POWER
26	BRACKET, OVEN BOTTOM
28	Light Assembly
29	BULB, LIGHT
30	Latch Assembly
31	Retainer, Insulation
32	Shield, Heat
35	3196166 Whirlpool Screw
36	Insulation
37	SCREW
38	SCREW
39	BRACKET, OVEN
40	WP3400832 Whirlpool Screw
43	Screw, Shoulder(6)
