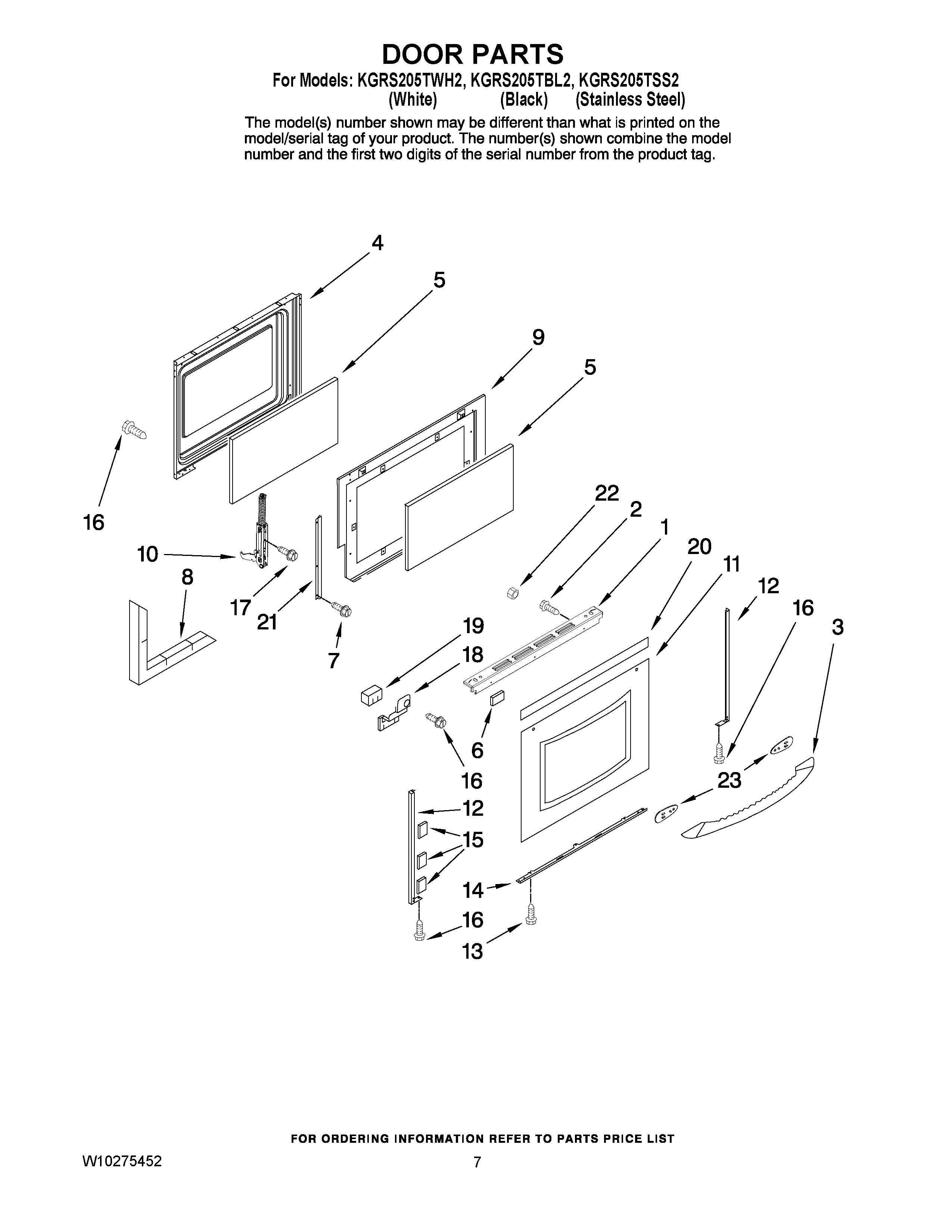

KGRS205TBL2 05 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (White)
1	Trim, Door Top (Black)
2	W11164114 Whirlpool Screw
3	Handle, Door (Black)
3	Handle, Door (White)
3	Handle, Door (S.Steel)
4	Lining, Door
5	GLASS, INNER
6	Tape, White
7	3196166 Whirlpool Screw
8	Insulation, Door
9	Baffel, Retainer
10	Hinge, Door (2)
11	Glass, Door (Order Item 15 When Replacing Door Glass) (Black)
11	GLASS, DOOR
11	GLASS, DOOR (WHITE)
12	Trim, Door Side (White)
12	Trim, Door Side (Black)
14	Trim, Door Bottom (White)
14	TRIM, DOOR BOTTOM (BLACK)
15	Tape, White
15	Tape, Double Sided (Black)
16	WP3400832 Whirlpool Screw
17	SCREW
18	Bracket, Handle (Left)
18	Bracket, Handle (Right)
19	Insulation, Corner
20	TAPE, FOIL (3“)
21	Bracket, Glass
22	NUT
23	Spacer, Handle (White)
23	SPACER, HANDLE
23	Spacer, Handle (Black)
