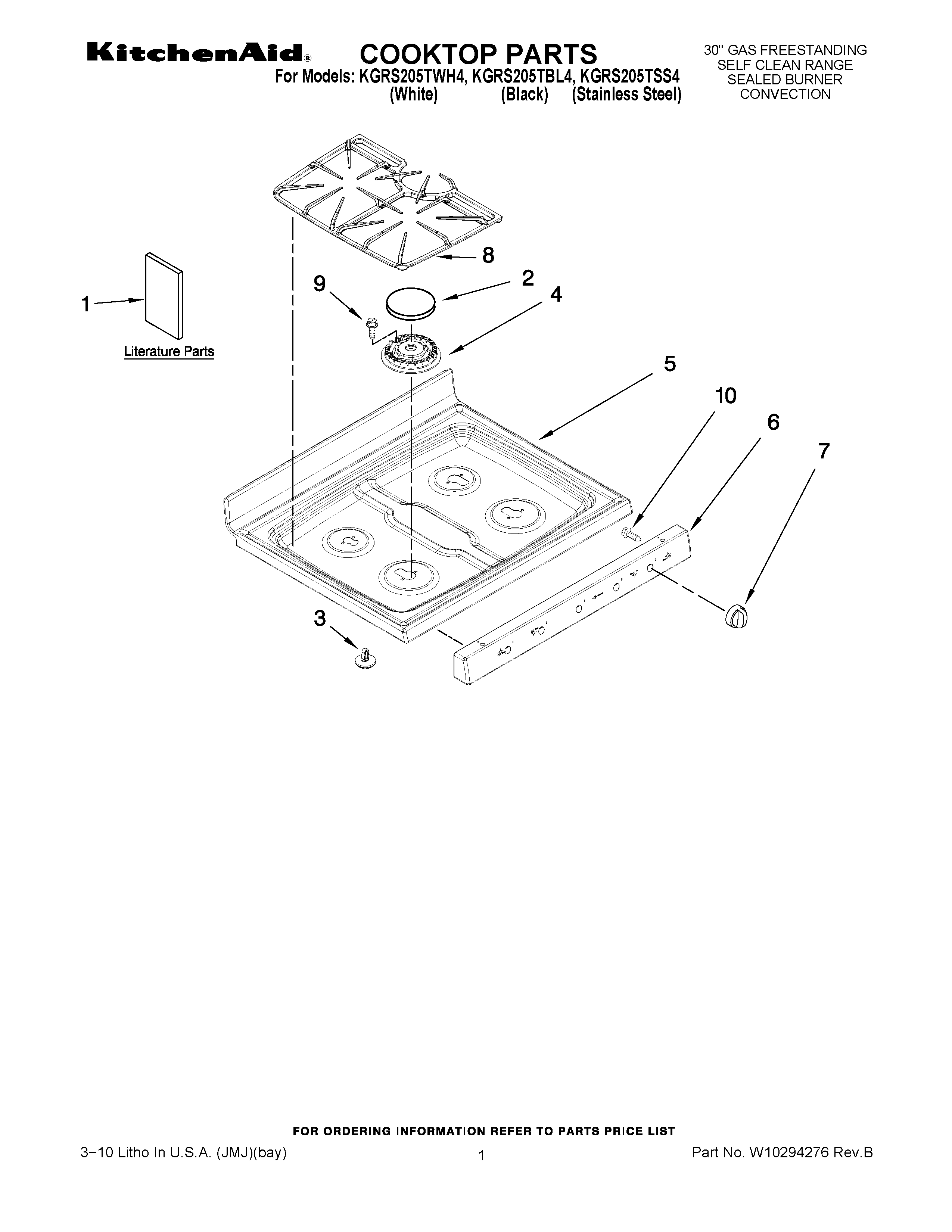

KGRS205TBL4 01 – COOKTOP PARTS
Written by
in
KGRS205TBL4 01 – COOKTOP PARTS
Products
Position
Product
1
Installation Instructions
1
SAFER COOKING TIPS (ENGLISH
1
Owners Manual
1
WIRING DIAGRAM
2
CAP, BURNER (CTR) (BLACK)
2
CAP, BURNER (RF) (BLACK)
2
CAP, BURNER (CTR) (GRAY)
2
CAP, BURNER (LF) (GRAY)
2
CAP, BURNER (RF) (GRAY)
2
CAP, BURNER (LF) (BLACK)
2
Cap, Burner (RR & LR) (Black)
2
Cap, Burner (RR & LR) (Gray)
3
Spacer Snap-In (4)
4
WPW10406243 Whirlpool Burner Head Auxiliary 6K
4
WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4
WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4
WPW10406878 Whirlpool Burner Base (16K)
5
COOKTOP (WHITE)
5
COOKTOP (BLACK)
6
PANEL, MANIFOLD (STAINLESS STEEL)
6
Panel, Manifold (White)
6
Panel, Manifold (Black)
7
WPW10160375 Whirlpool Oven Control Knob
7
WPW10160374 Whirlpool Knob
7
WPW10160372 Whirlpool Knob
8
Grate, Burner (2) (Black)
8
Grate, Burner (2) (Gray)
9
WP3368921 Whirlpool Screw
10
SCREW
←
