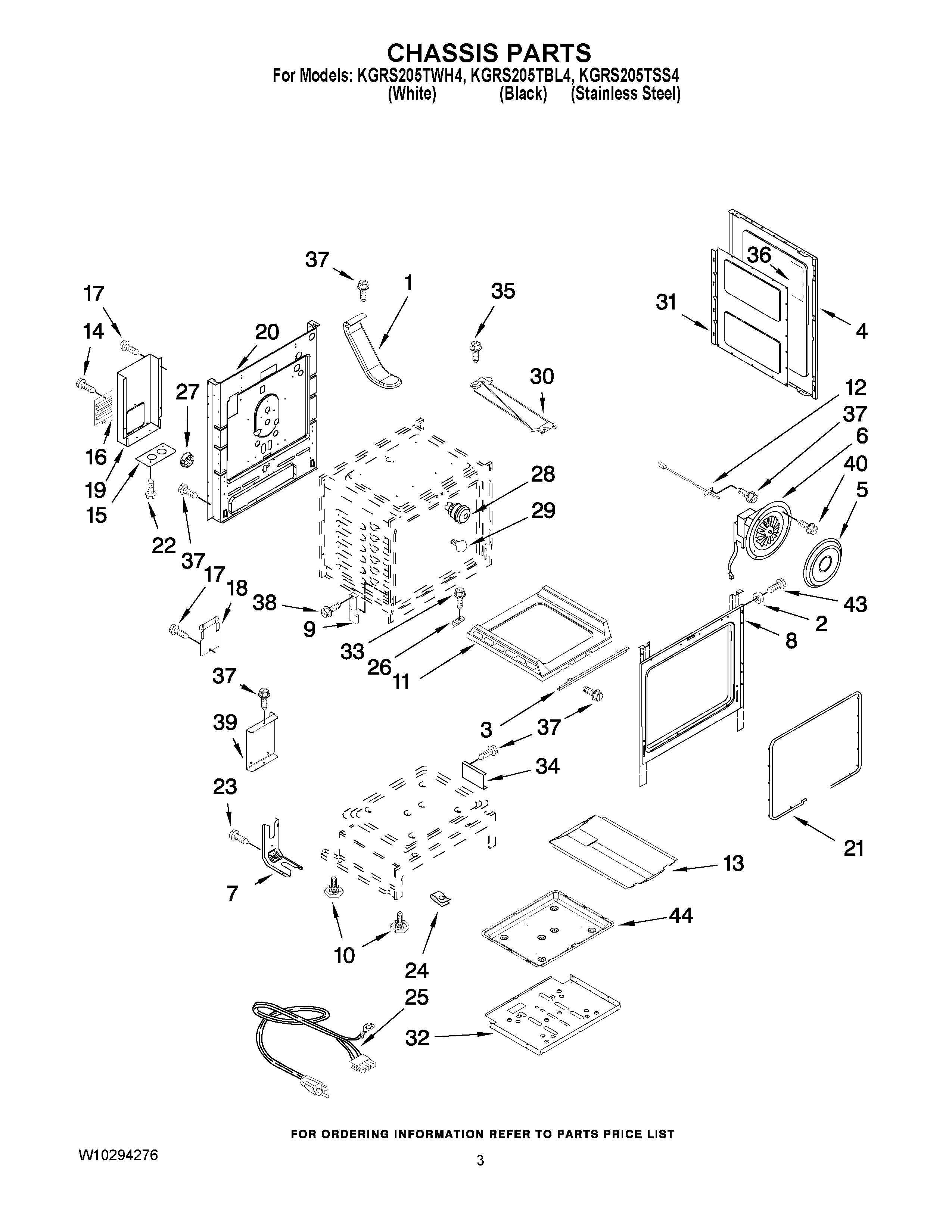

KGRS205TBL4 03 – CHASSIS PARTS
Written by
in
KGRS205TBL4 03 – CHASSIS PARTS
Products
Position
Product
NI
INSULATION, BACK
NI
INSULATION, WRAP
NI
W10182346 Whirlpool Insulation Assembly
1
VENT, OVEN
2
Spacer, Side Pnl.
3
Support, Oven
4
Panel, Side (Black)
4
Panel, Side (White)
5
PLATE, CONVECTION
6
FAN, CONVECT
7
BRACKET, ANTI TIP
8
CABINET (NOT A SERVICEABLE PART)
9
Receiver, Hinge
10
FOOT, LEVELER
11
WPW10211368 Whirlpool Oven Bottom
12
WPW10131827 Whirlpool Sensor
13
BAFFLE, BAKE BURNER
16
Plate, Conduit
18
COVER, BROIL
19
COVER, WIRE (LWR)
20
MAIN BACK
21
W11562931 Whirlpool Door Gasket
22
SCREW, HINGE
23
W10491985 Whirlpool Screw
24
CLIP (4)
25
CORD, POWER
26
Support, Ov BTM
27
BUSHING, WIRE
28
W11594027 Whirlpool Range Oven Light Socket
29
BULB, LIGHT
30
Latch Assembly
31
Retainer, Insulation
32
Shield, Heat
35
3196166 Whirlpool Screw
36
INSULATION
38
SCREW
39
BRACKET, OVEN
40
SCREW
43
Screw, Shoulder(6)
44
PAN, BAKE
←
