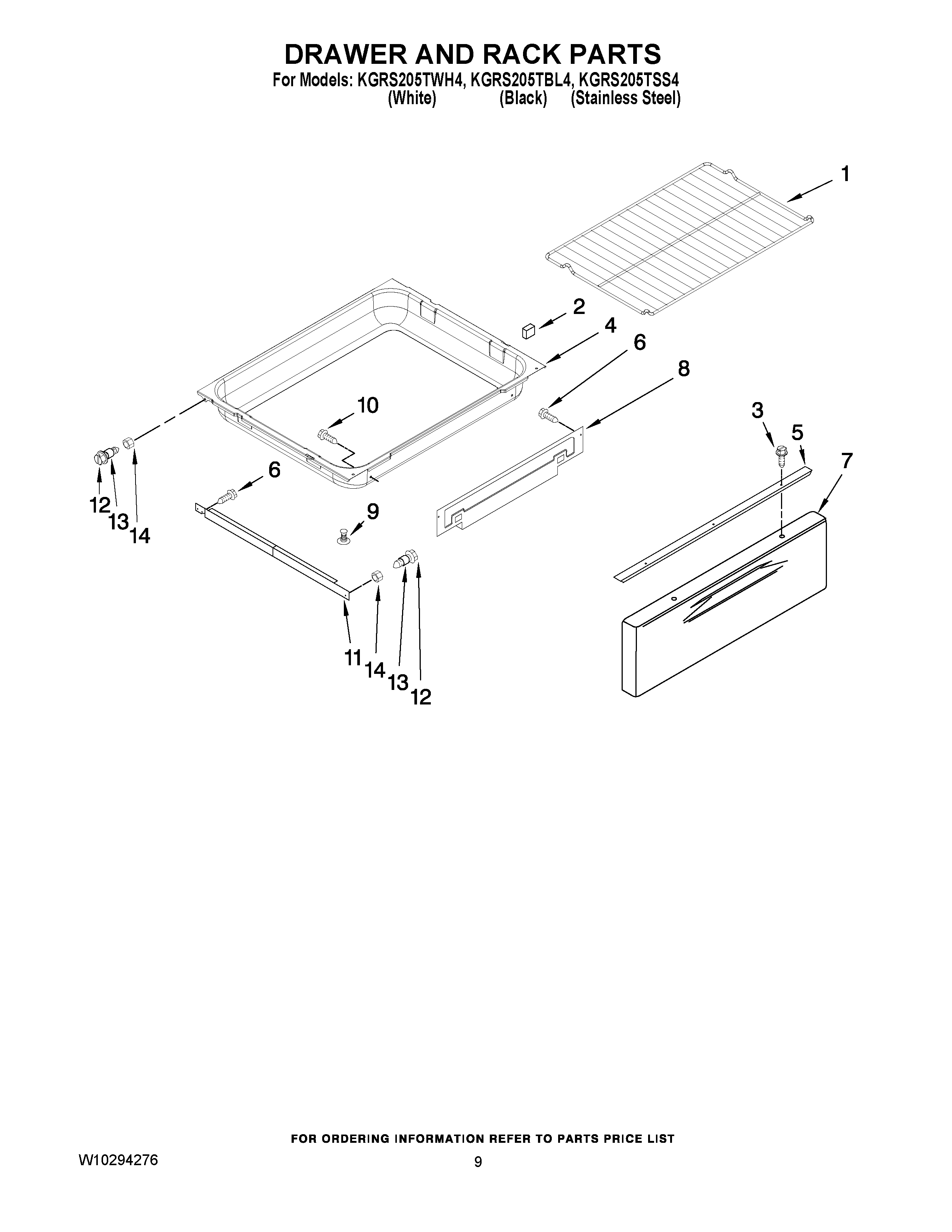

KGRS205TBL4 06 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	Spacer, Rubber
4	Drawer, Storage
5	HANDLE, DOOR
6	SCREW
7	PANEL, DRAWER FRNT (BLACK)
7	PANEL, DRAWER FRNT (STAINLESS STEEL)
7	PANEL, DRAWER FRNT (WHITE)
8	PANEL, INNER
9	Stop, Drawer
10	W11244557 Whirlpool Screw
11	Runner, Drawer
12	Shaft, Roller
13	ROLLER, DRAWER
14	Nut, Lock
