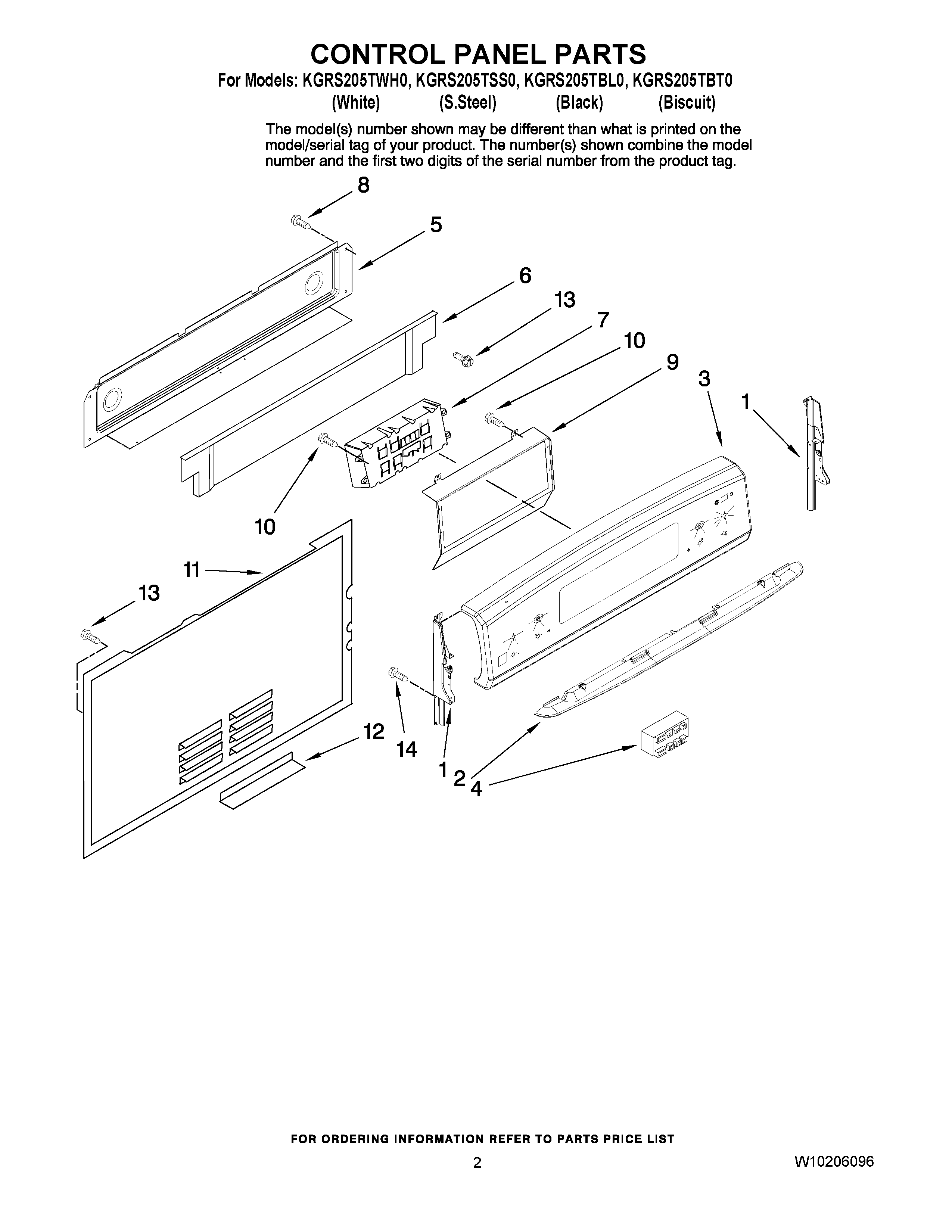

KGRS205TSS0 02 – CONTROL PANEL PARTSadmin2025-04-26T11:18:46+00:00KGRS205TSS0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (WHITE (RIGHT)) |
| 1 | ENDCAP, LEFT HAND (BISCUIT) |
| 1 | ENDCAP, RIGHT HAND (BISCUIT) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 2 | Heat Shield, Visor (White) |
| 2 | Heat Shield, Visor (Black) |
| 2 | Heat Shield,Visor (Biscuit) |
| 3 | WPW10160634 Whirlpool Membrane Switch |
| 3 | PANEL, BACKGUARD & SWITCH ASSY (BISCUIT) |
| 4 | 74009098 Whirlpool Spark Module |
| 5 | Cover, Rear Wire |
| 6 | Shield, Vent |
| 7 | Control |
| 8 | WP90767 Whirlpool Screw |
| 9 | Bracket, Control |
| 10 | WP74003976 Whirlpool Screw |
| 11 | Cover, Main Wire |
| 12 | Bottom, Wire Cover |
| 13 | WP7101P434-60 Whirlpool Screw |
| 14 | SCREW |
