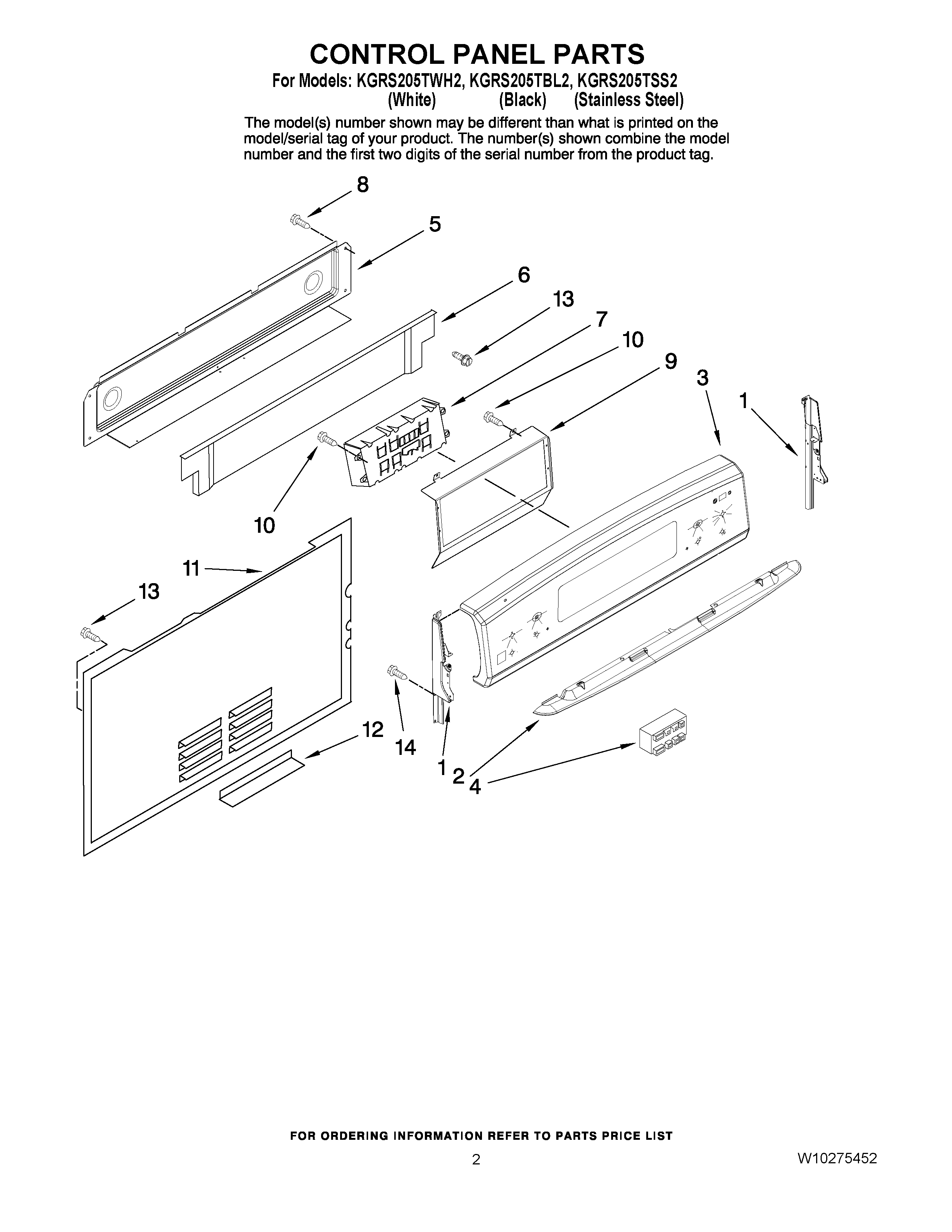

KGRS205TSS2 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	End Cap, Right (White)
1	End Cap, Left (Black)
1	End Cap, Left (White)
1	End Cap, Right (Black)
2	HEAT SHIELD,VISOR (WHITE)
2	HEAT SHIELD,VISOR (BLACK)
3	WPW10160634 Whirlpool Membrane Switch
4	MODULE, SPARK
5	Cover, Rear Wire
6	Shield, Vent
7	Control
9	Bracket, Control
10	WP3196557 Whirlpool Screw
11	COVER, MAIN WIRE
12	Cover, Wire (LWR)
13	SCREW
14	SCREW
