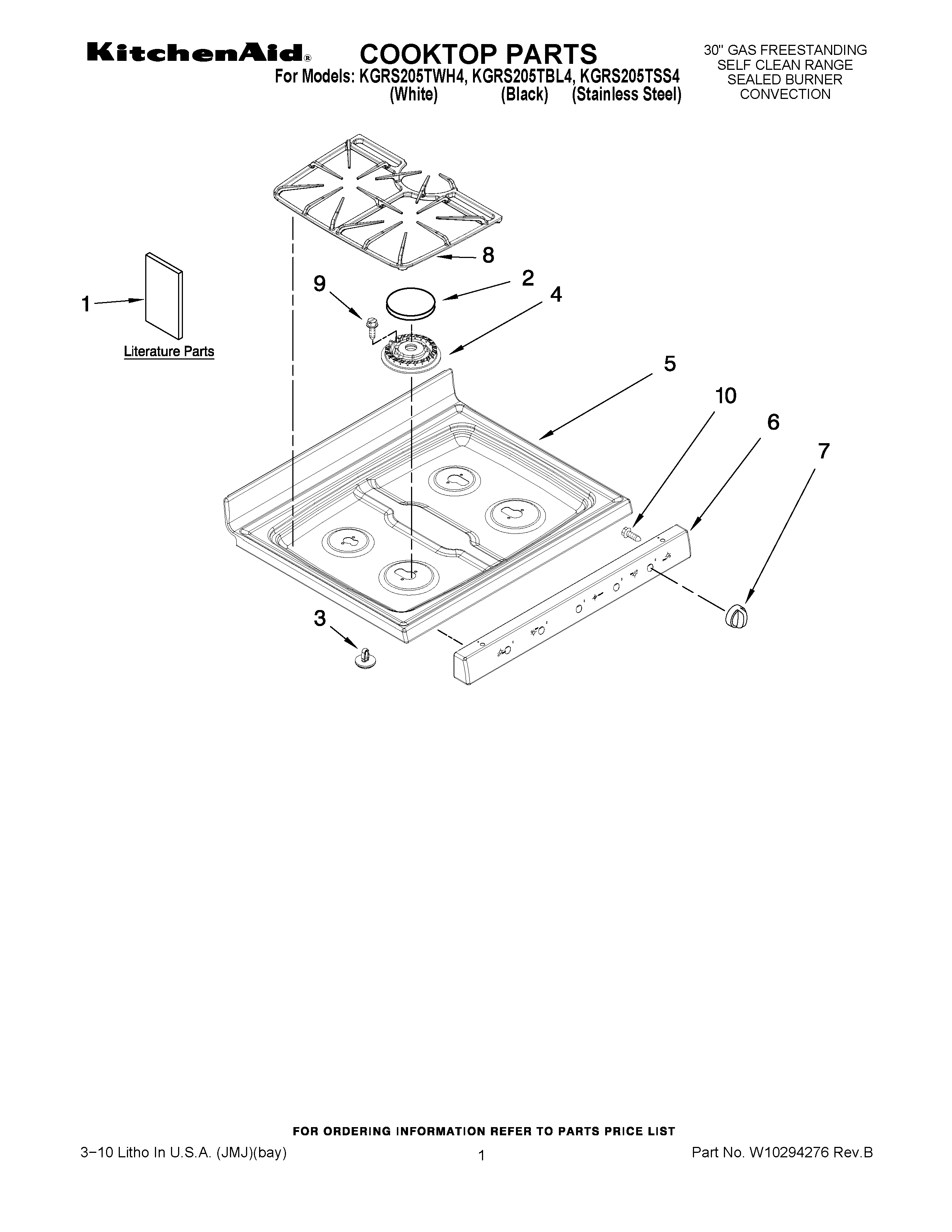

KGRS205TSS4 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	SAFER COOKING TIPS (ENGLISH
1	Owners Manual
1	WIRING DIAGRAM
2	CAP, BURNER (CTR) (BLACK)
2	CAP, BURNER (RF) (BLACK)
2	CAP, BURNER (CTR) (GRAY)
2	CAP, BURNER (LF) (GRAY)
2	CAP, BURNER (RF) (GRAY)
2	CAP, BURNER (LF) (BLACK)
2	Cap, Burner (RR & LR) (Black)
2	Cap, Burner (RR & LR) (Gray)
3	Spacer Snap-In (4)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4	WPW10406878 Whirlpool Burner Base (16K)
5	COOKTOP (WHITE)
5	COOKTOP (BLACK)
6	PANEL, MANIFOLD (STAINLESS STEEL)
6	Panel, Manifold (White)
6	Panel, Manifold (Black)
7	WPW10160375 Whirlpool Oven Control Knob
7	WPW10160374 Whirlpool Knob
7	WPW10160372 Whirlpool Knob
8	Grate, Burner (2) (Black)
8	Grate, Burner (2) (Gray)
9	WP3368921 Whirlpool Screw
10	SCREW
