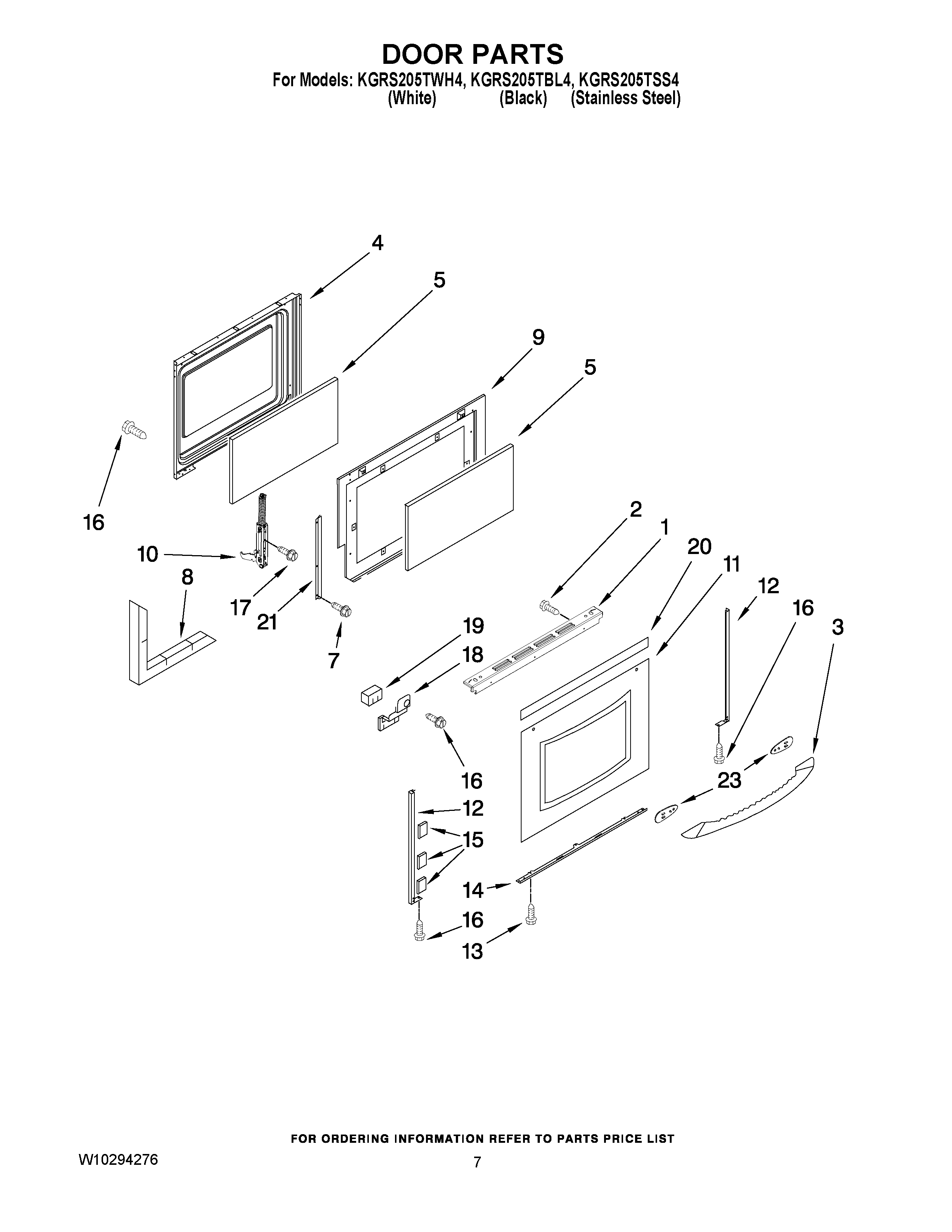

KGRS205TSS4 05 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (White)
1	Trim, Door Top (Black)
2	W11164114 Whirlpool Screw
3	Handle, Door (Black)
3	Handle, Door (White)
3	Handle, Door (S.Steel)
4	Lining, Door
5	GLASS, INNER
8	Insulation, Door
9	Baffel, Retainer
10	Hinge, Door (2)
11	Glass, Door (Order Item 15 When Replacing Door Glass) (Black)
11	GLASS, DOOR
11	GLASS, DOOR (WHITE)
12	Trim, Door Side (White)
12	Trim, Door Side (Black)
13	WP3196175 Whirlpool Screw
14	TRIM, DOOR BOTTOM (BLACK)
14	Trim, Door Bottom (White)
15	Tape, White
15	Tape, Double Sided (Black)
16	3196166 Whirlpool Screw
17	SCREW
18	Bracket, Handle (Left)
18	Bracket, Handle (Right)
19	Insulation, Corner
20	TAPE, FOIL (3“)
21	Bracket, Glass
23	Spacer, Handle (White)
23	SPACER, HANDLE
23	Spacer, Handle (Black)
