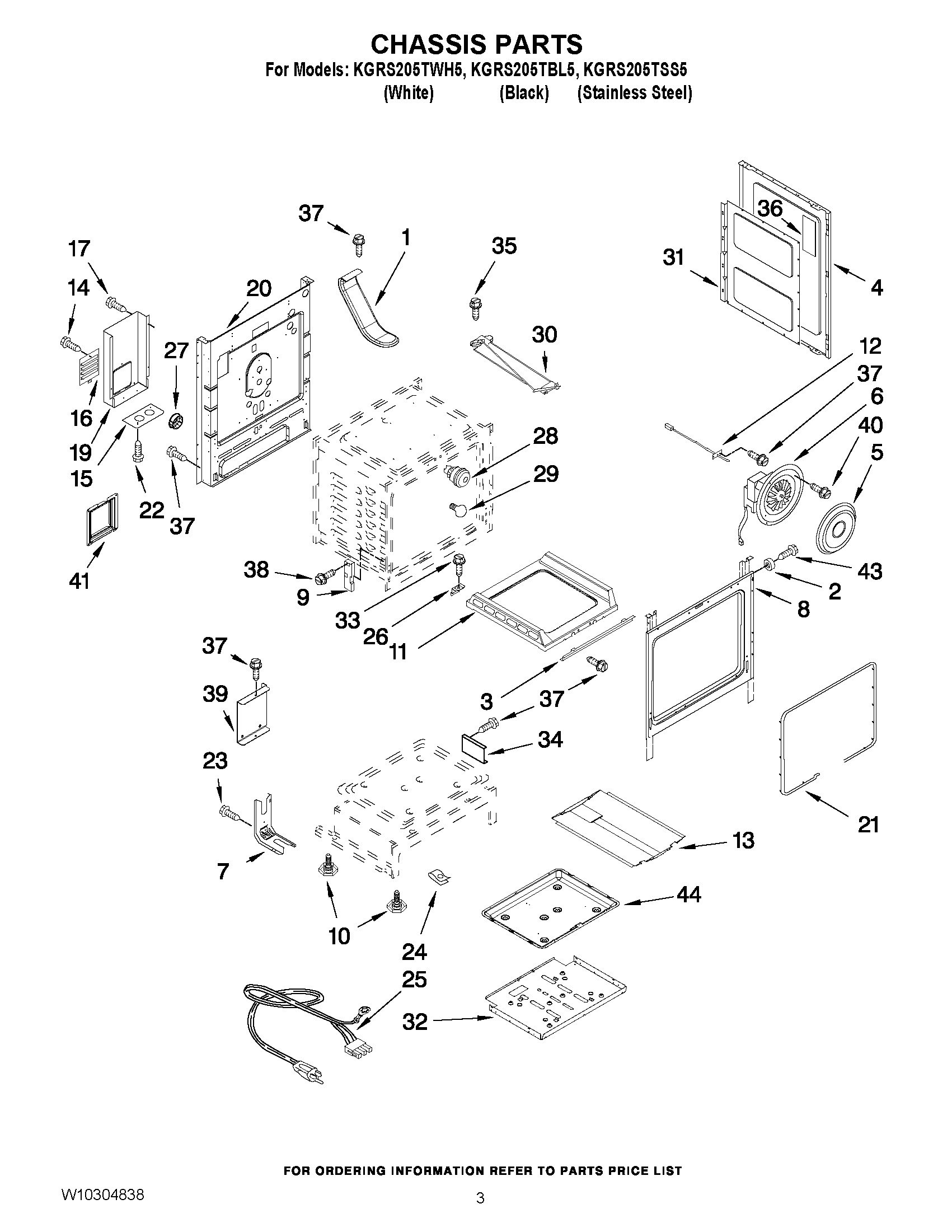

KGRS205TSS5 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	W10182346 Whirlpool Insulation Assembly
NI	INSULATION, BACK
1	VENT, OVEN
2	Spacer, Side Pnl.
3	Support, Oven
4	Panel, Side (Black)
4	Panel, Side (White)
5	PLATE, CONVECTION
6	FAN, CONVECT
7	BRACKET, ANTI TIP
8	CABINET (NOT A SERVICEABLE PART)
9	Receiver, Hinge
10	FOOT, LEVELER
11	WPW10211368 Whirlpool Oven Bottom
12	WPW10131827 Whirlpool Sensor
13	BAFFLE, BAKE BURNER
16	Plate, Conduit
19	COVER, WIRE (LWR)
20	MAIN BACK
21	W11562931 Whirlpool Door Gasket
22	SCREW, HINGE
23	W10491985 Whirlpool Screw
24	CLIP (4)
25	CORD, POWER
26	Support, Ov BTM
27	BUSHING, WIRE
28	W11594027 Whirlpool Range Oven Light Socket
29	BULB, LIGHT
30	Latch Assembly
31	Retainer, Insulation
32	Shield, Heat
35	3196166 Whirlpool Screw
36	INSULATION
38	SCREW
39	BRACKET, OVEN
40	SCREW
41	RETAINER, INSUL.
43	Screw, Shoulder(6)
44	PAN, BAKE
