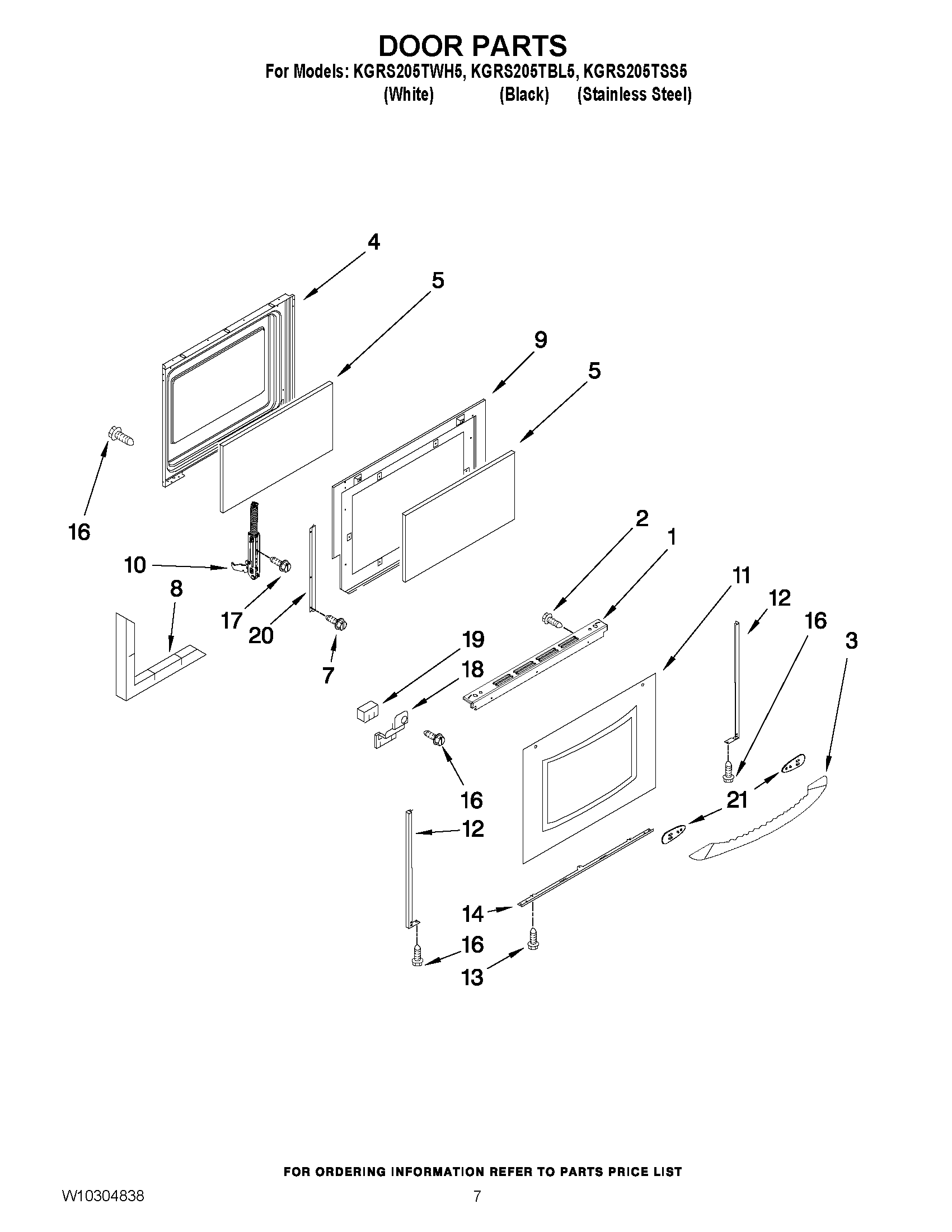

KGRS205TSS5 05 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (White)
1	Trim, Door Top (Black)
2	W11164114 Whirlpool Screw
3	Handle, Door (White)
3	Handle, Door (Black)
3	Handle, Door (S.Steel)
4	Lining, Door
5	GLASS, INNER
8	Insulation, Door
9	Baffel, Retainer
10	Hinge, Door (2)
11	GLASS, DOOR (WHITE)
11	Glass, Door (Order Item 15 When Replacing Door Glass) (Black)
11	GLASS, DOOR
12	Trim, Door Side (Black)
12	Trim, Door Side (White)
13	WP3196175 Whirlpool Screw
14	TRIM, DOOR BOTTOM (BLACK)
14	Trim, Door Bottom (White)
16	3196166 Whirlpool Screw
17	SCREW
18	Bracket, Handle (Left)
18	Bracket, Handle (Right)
19	Insulation, Corner
20	Bracket, Glass
21	Spacer, Handle (White)
21	SPACER, HANDLE
21	Spacer, Handle (Black)
