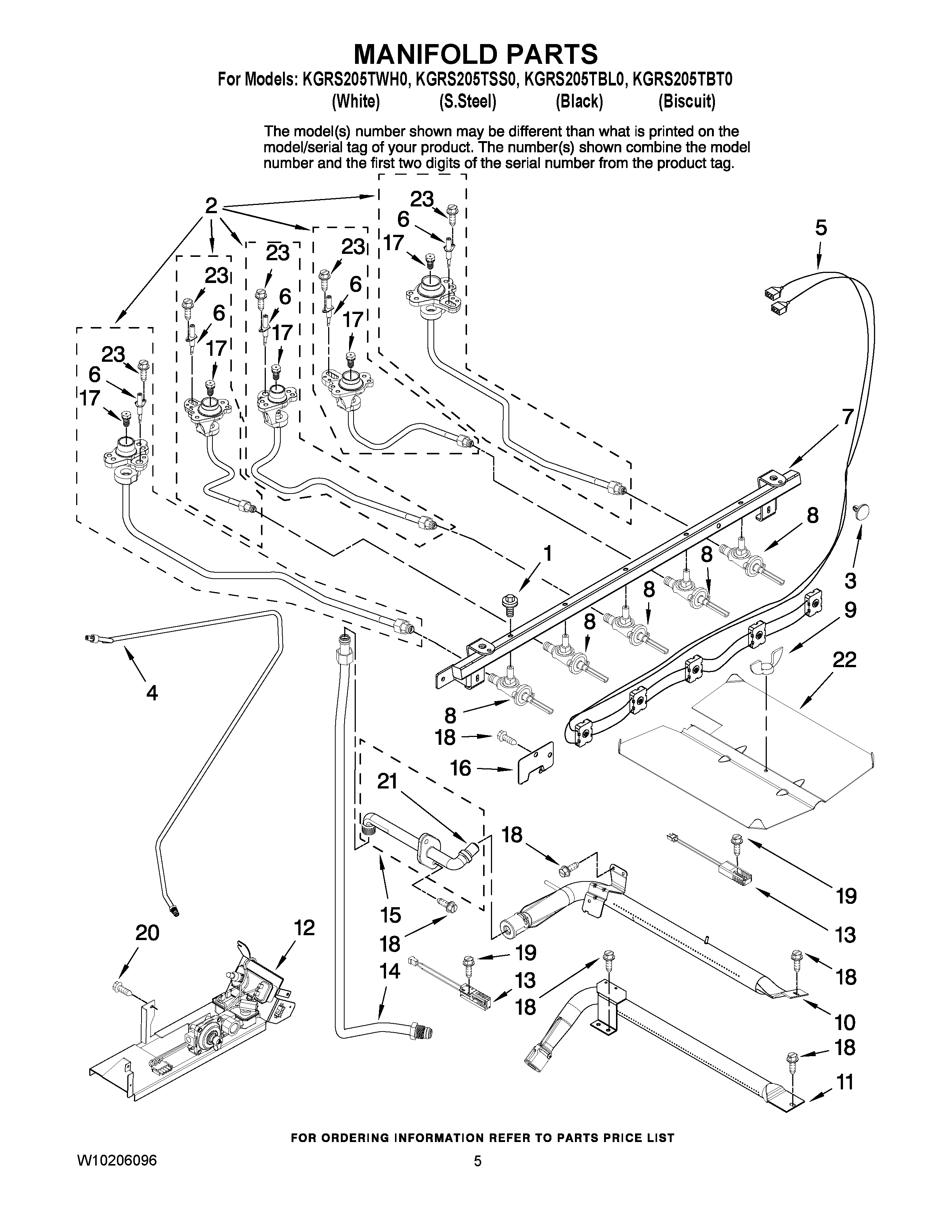

KGRS205TWH0 04 – MANIFOLD PARTS

Products

Position	Product
NI	WP74008871 Whirlpool Orifice Assembly
1	Screw, Valve
2	Holder, Orifice (LR)
2	WP74009099 Whirlpool Orifice Holder
2	W10154209 Whirlpool Orifice Holder
2	Holder, Orifice (CTR)
2	Holder, Orifice (LF)
3	74008761 Whirlpool Spacer Snap-In
4	Tubing, Main Supply
5	Harness, Igniter Includes Switches
6	WP74009958 Whirlpool Spark Electrode Assembly
7	Pipe, Manifold
8	Valve (LR/RR/CTR)
8	WP7502P499-60 Whirlpool Burner Valve
8	74010751 Whirlpool Oven 16K Valve
9	7103P030-60 Whirlpool Wing Nut
10	Burner, Broiler
11	Burner, Bake
12	Valve/Regulator
13	WP7432P136-60 Whirlpool Oven Igniter
13	74007498 Whirlpool Range Flat Igniter
14	74008830 Whirlpool Oven Broil Tubing
15	74008818 Whirlpool Broil Burner Fitting
16	COVER, IGNITOR WIRE
17	ORIFICE, BURNER (CENTER)
17	ORIFICE, BURNER (LR/RR)
17	ORIFICE, BURNER (LEFT FRONT)
17	ORIFICE, BURNER (RIGHT FRONT)
18	SCREW
19	SCREW
20	WIRING HARNESS PARTS, SCREW, GROUND
21	74008834 Whirlpool Oven Orifice Holder
22	3601P336-45 Whirlpool Burner Baffle
23	WP8273062 Whirlpool Screw
