KGRS205TWH0 05 – DOOR PARTS
Written by
in

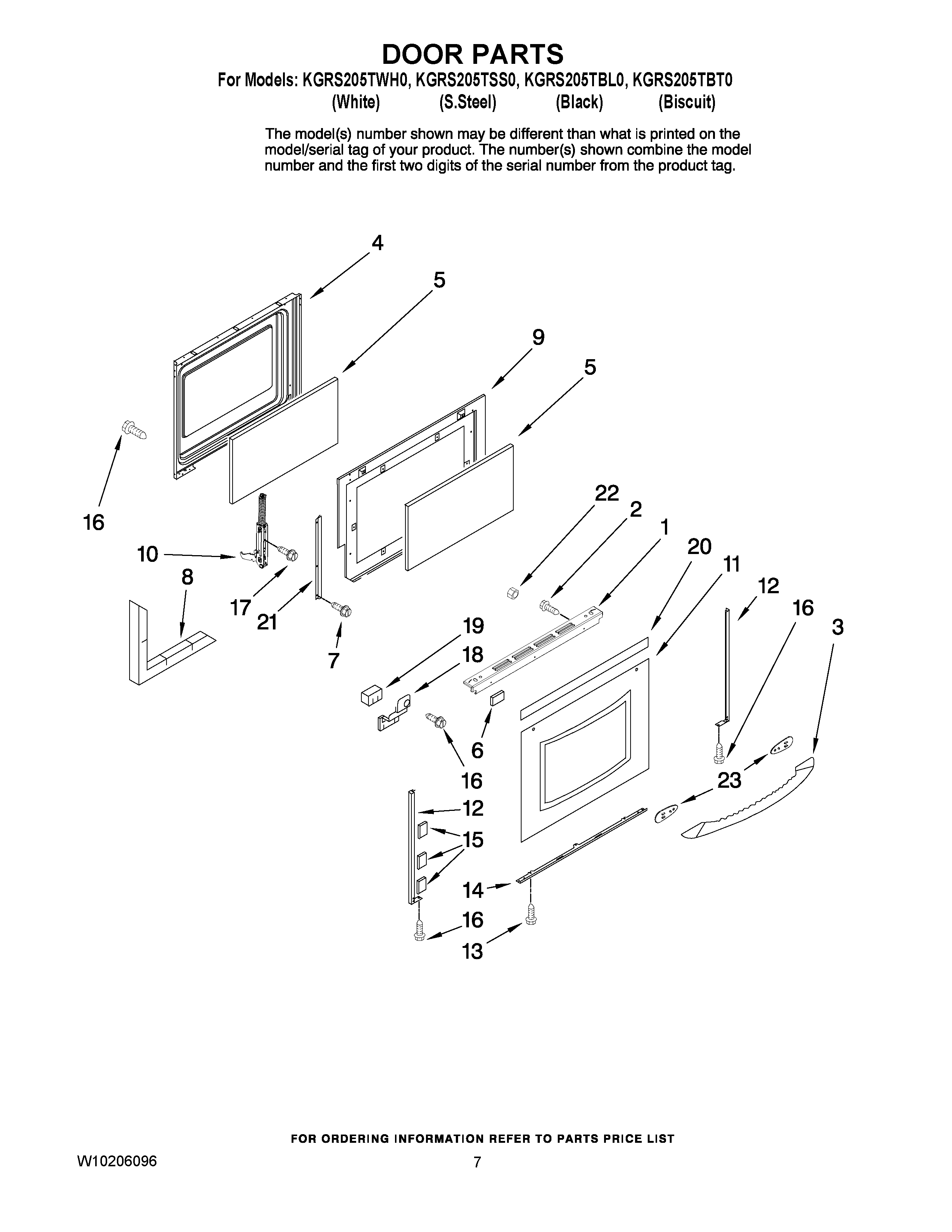

KGRS205TWH0 05 – DOOR PARTS
Products
Position
Product
1
Trim, Door Top (Black)
1
TRIM, TOP (BISCUIT)
1
Trim, Door Top (White)
2
W11164114 Whirlpool Screw
3
Handle, Door (S.Steel)
3
Handle, Door (Black)
3
Handle, Door (White)
3
Handle, Door (Biscuit)
4
Lining, Door
5
74003645 Whirlpool Range Oven Door Inner Glass
6
Tape, White
7
SCREW
8
Insulation, Door
9
Baffel, Retainer
10
74010546 Whirlpool Range Oven Door Hinge
11
GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN REPLACING DOOR GLASS)
11
GLASS, DOOR (WHITE)
11
GLASS, OUTER DOOR (BISCUIT)
12
Trim, Door Side (Black)
12
Trim, Door Side (Biscuit)
12
Trim, Door Side (White)
13
WP98008545 Whirlpool Screw
14
Trim, Lower Door (Black)
14
TRIM, LOWER DOOR (BISCUIT)
14
WP3608F092-71 Whirlpool Bottom Trim
15
WP74009025 Whirlpool Double Sided Tape
15
Tape, Double Sided (White)
16
WPY706189 Whirlpool Stove Screw
17
SCREW
18
Bracket, Handle (Left)
18
Bracket, Handle (Right)
19
Insulation, Corner
20
Tape, Foil (3“)
21
3801F886-51 Whirlpool Mounting Bracket
22
WP3400029 Whirlpool Dishwasher Nut
23
Spacer, Handle (Black)
23
Spacer, Handle (White)
23
Spacer, Handle (Biscuit)
←
