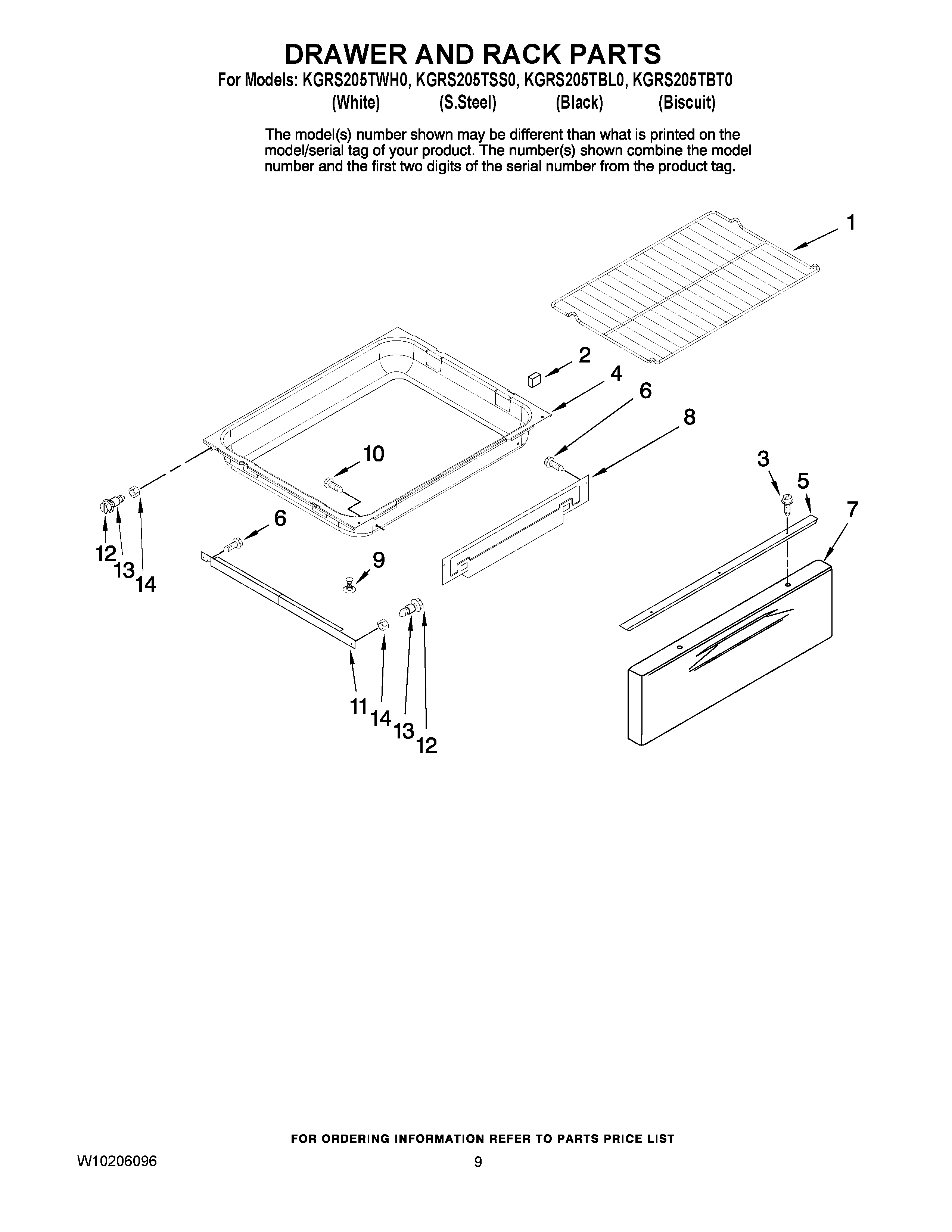

KGRS205TWH0 06 – DRAWER AND RACK PARTS

KGRS205TWH0 06 – DRAWER AND RACK PARTS

Written by

in

KGRS205TWH0 06 – DRAWER AND RACK PARTS

Products

PositionProduct
1WP74008763 Whirlpool Oven Rack
2WP74005546 Whirlpool RU Spacer
4WP3405F037-80 Whirlpool Utility Drawer
55171P936-60 Whirlpool Wire Harness
6SCREW
7Panel, Drawer Frnt (Biscuit)
7Panel, Drawer Frnt (Black)
7Panel, Drawer Frnt (White)
8Panel, Inner
9Stop, Drawer
10Screw, Panel
11Runner, Drawer
12Shaft, Roller (2)
13WP74004078 Whirlpool Door Roller
14Nut
